Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 503

Descriptions
B–63522EN/02
3. CONVERSATIONAL AUTOMATIC
PROGRAMMING FUNCTION FOR
MACHINING CENTERS
AUTOMATIC PROGRAMMING
FUNCTION
475
Super CAPi M is performed by using conversational control software and
a custom macro program. In Super CAPi M, therefore, many macro
instructions dedicated to conversational operation are provided as well as
the standard custom macro instructions. FANUC supplies a standard
macro library to the machine tool builder. The machine tool builder can
make additions and modifications to the standard macro library to
develop unique functions. The following sections explain the
specifications of the conversational automatic programming function of
the standard macro library supplied by FANUC.
In Super CAPi M, the following machining types can be selected:
D Drilling (eight types + hole position menu: Nine types)
D Facing (six types)
D Side facing (eight types including contour side)
D Pocketing and grooving (eight types including contour pocketing)
D 2 + 1/2 machining (eight types)
D NC language (eight types)
D Machining of multiple workpieces (five types)
D U axis machining (eight types)

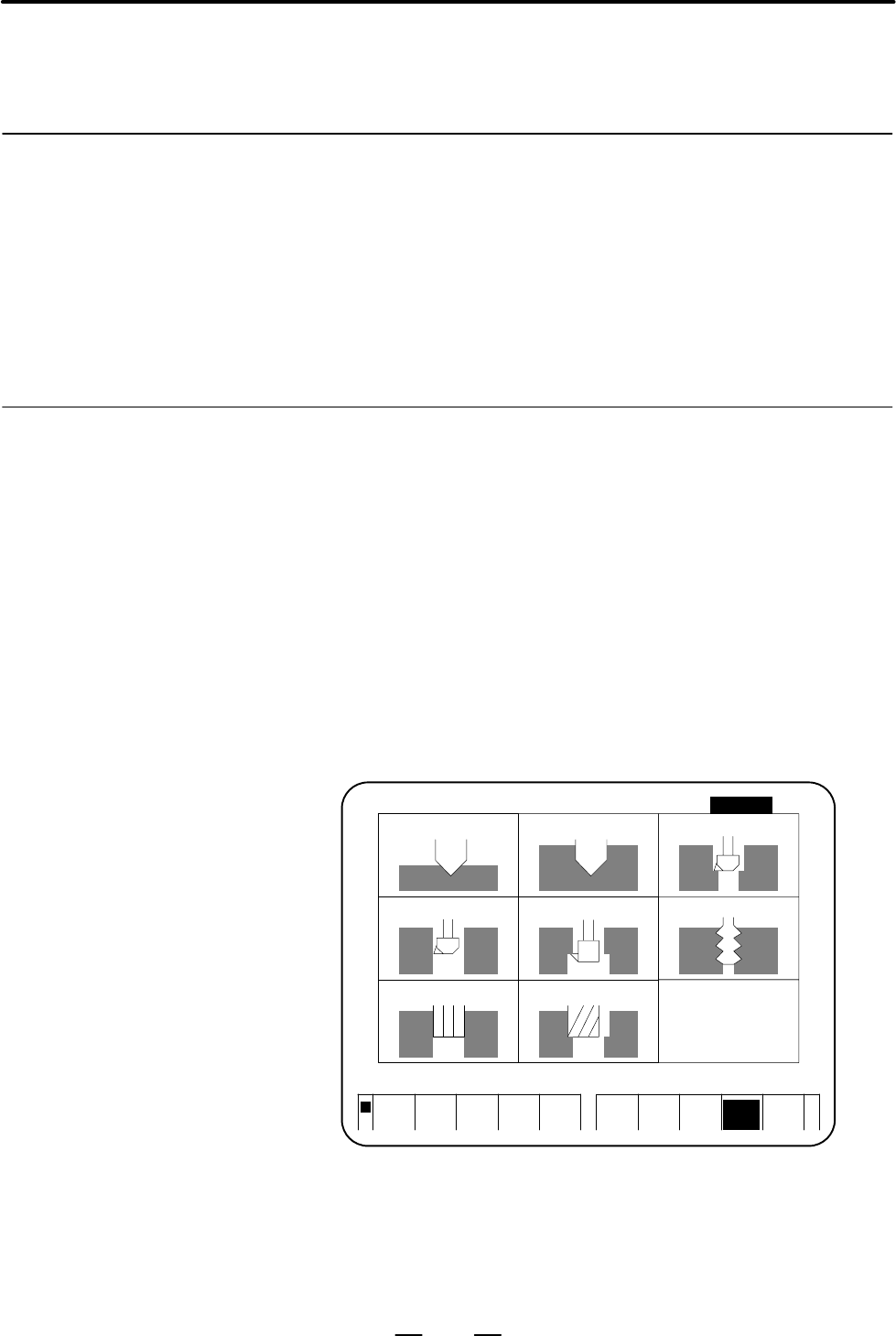

01 02 03 04 05
PROGRAM O1000 PAGE:01/ CREATING
SELECT SOFTKEY.
<
01 DRILLING 02 PECK DRILING 03 BORING
04 FINE BORING 04 BACK BORING 06 TAPPING
07 REAMING 08 FACING
06 07 08 GUIDAN PROCES
CE END
3.1
Super CAPi M
3.1.1
Features
3.1.2
Outline of the Macro
Library
Machining type
