15. ACCURACY COMPENSATION

FUNCTION B–63522EN/02

NC FUNCTION

226

In straightness compensation, like slope compensation, compensation

amounts are set for representative four points (a, b, c, d) (compensation

points for straightness compensation) selected from the compensation

points for pitch error compensation. At compensation points for pitch

error compensation located between the compensation points for

straightness compensation, the NC calculates and outputs the

compensation amount according to the compensation amount for

straightness compensation.

The major difference from slope compensation is that straightness

compensation uses different axes as the movement axis and compensation

axis. In slope compensation, the movement axis is subjected to

compensation. The relationship between the movement axis and

compensation axis is defined by parameter setting (for example, the

Y–axis is compensated according to the movement along the X–axis).

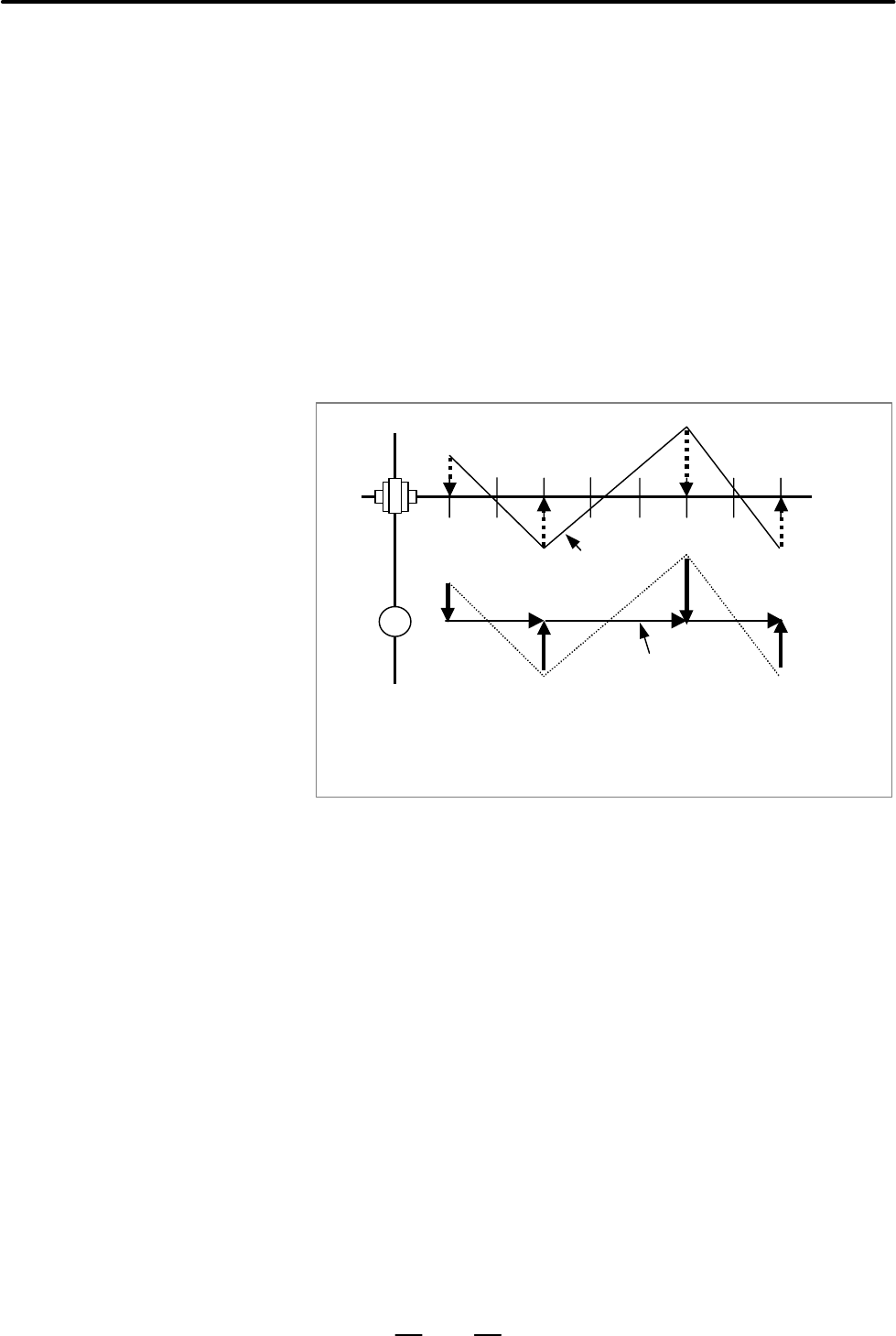

Example : X–axis: Movement axis, Y–axis: Compensation axis

a, b, c, d : Compensation points for the movement axis

ε1, ε2, ε3, ε4 : Compensation amounts for the compensation

points along the compensation axis

Locus of

portion B

X–axis

Locus of point A

ε1

ε2

ε3

ε4

Y–axis

ε1

ε2

ε3

ε4
