3. CONVERSATIONAL AUTOMATIC

PROGRAMMING FUNCTION FOR

MACHINING CENTERS

AUTOMATIC PROGRAMMING

FUNCTION

476

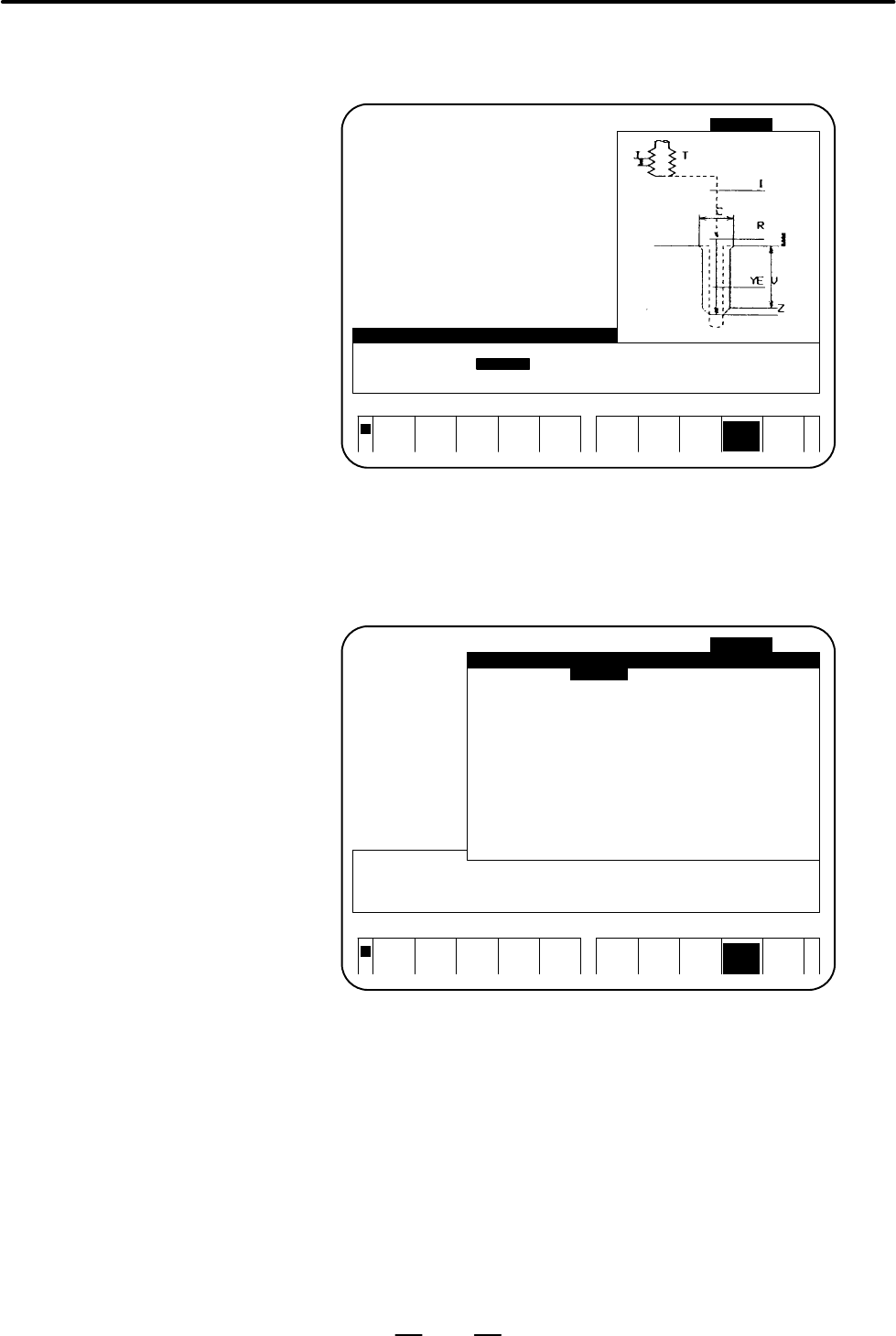

An easy–to–understand guide figure and message are displayed for each

input item on the screen.

F.S PROCES

AUTO WINDOW

PROGRAM O1000 PAGE:01/ CREATING

MAX NUM.OF TOOLS–10

NO. CYCLE PROCESS TOOL NAME

001 AUXILIARY INITAL SETING

002 FACING FACING PREP. FACE MIL

FACING PREP. FACE MIL

FACING SQUARE BIDIR

PROCESS END

HOLE :TAPPING

GROUP COPY :YB= UNUSED RETURN POINT: I=

WK SURFACE : B= FEEDRATE CHG:YC= UNCHANGE

TAP DEPTH : V= KIND OF TAP : A= NORMAL

CHAMFER DIA : C= TOOL ID NO. : T=

INPUT THE Z COORD OF THE UPPER SURFACE OF THE WORKPIECE.

TOOL GUIDAN INPUT

INFOM CE END

Tool data, cutting condition data, and pre–tool data can be input easily by

following the instructions displayed on the screen.

Once data is input, necessary data for machining is determined

automatically.

HOLE :TAPPING

GROUP COPY :YB= UNUSED RETURN POINT: I=

WK SURFACE : B= 0. FEEDRATE CHG:YC= UNCHANGE

TAP DEPTH : V= 20. KIND OF TAP : A= NORMAL

CHAMFER DIA : C= TOOL ID NO. : T= 25.

INPUT THE TOOL ID NUMBER OF THE TOOL TO BE USED.

F.S. WINDOW

AUTO CHANCE

PROGRAM O1000 PAGE:01/ CREATING

NO. CYCLE P

001 AUXILIARY I

002 FACING F

FACING S

CUTTING DATA1/2 PROCESS4 PROCESS3 PROCESS2 PRO-

CESS1

TOOL ID NO.T= 25. 14. 12. 3.

TOOL NAME Q= TAP DRILL DRILL CENT DRILL

TOOL DTA E= 10. 8. 4. 3.

H OFFSET NO. H= 125. 114. 112. 103.

R POINT R= 10. 3. 3. 3.

Z POINT Z= -20. -29.6 -24.8 -3.

DWELL D= 0. 0. 0. 0.

COOLANT M=COOLNT M7 COOLNT M7 COOLNT M7 COOLNT M

SPINDL SPEED S= 254. 3180. 5000. 4240.

FEED RATE F= 280. 318. 50. 42.

SPEED OFFST YD= * * * *

SPEED CHG PT YE= * * * *

PITCH J= 1.1 * * *

TOOL GUIDAN INPUT

INFORM CE END

Conversational program

input screen

Tool/cutting condition/

pre–tool automatic

determination
