Series 16i/160i/160is/18i/180i/180is/ Descriptions Page 242

Descriptions

Page of 602

/ 602

14. TOOL COMPENSATION FUNCTION

B–63522EN/02

NC FUNCTION

214

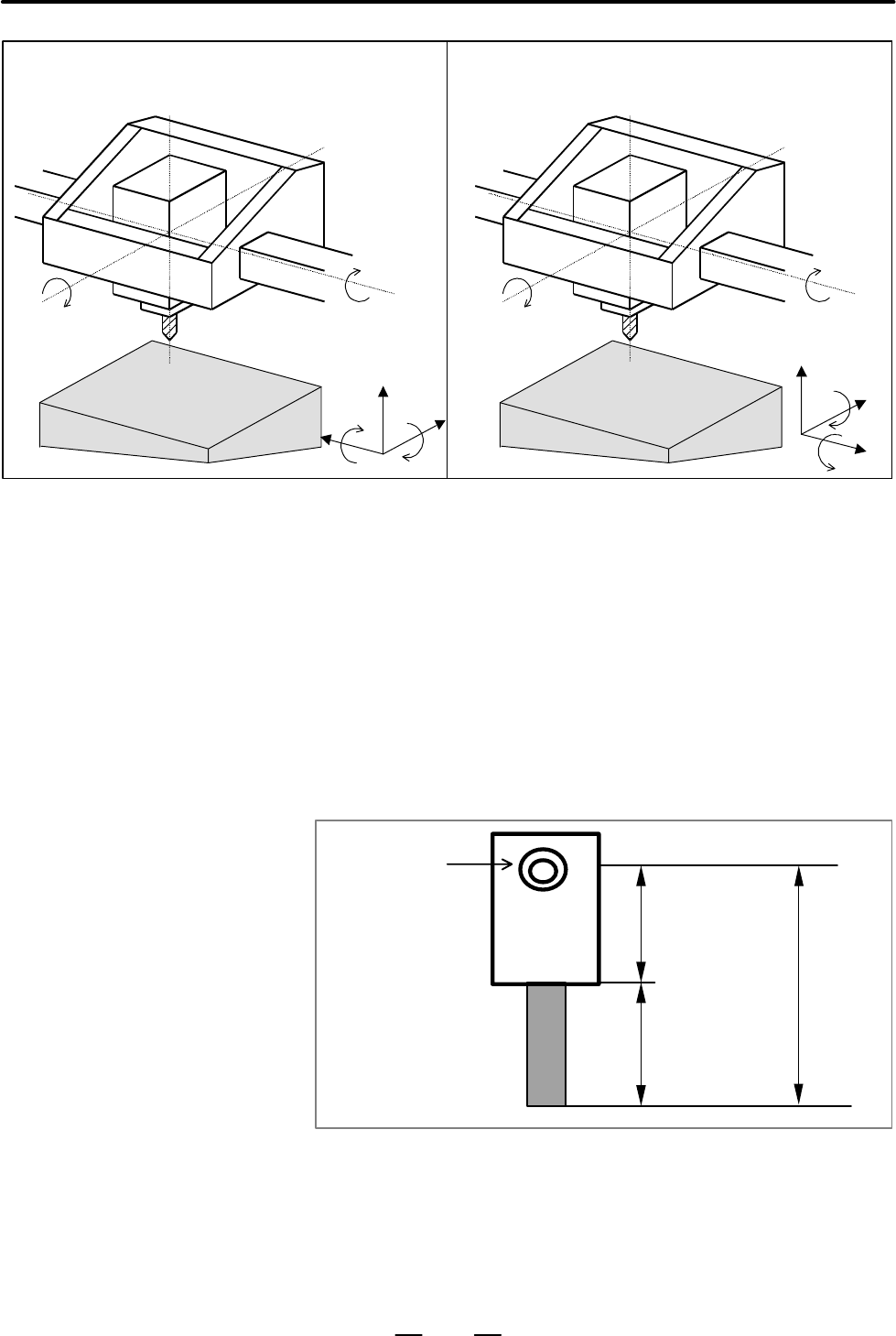

(4) A–axis and B–axis, with the tool axis on the

Z–axis, and the B–axis used as the master

(5) A–axis and B–axis, with the tool axis on the

Z–axis, and the A–axis used as the master

Workpiece Workpiece

A tool compensation vector is found from the coordinates on the rotation

axes for controlling the tool axis direction. However, the configuration

of some machines is such that the tool axis is inclined using a fixed

attachment. In such a case, the rotation angles of the rotation axes can be

set using parameters.

The machine–specific length from the rotation center of the tool rotation

axes (A– and B–axes, A– and C–axes, and B– and C–axes) to the tool

mounting position is referred to as the tool holder offset. Unlike a tool

length offset value, a tool holder offset value is set in parameter No. 7648.

When tool axis direction tool length compensation is applied, the sum of

the tool holder offset and tool length offset is handled as a tool length for

compensation calculation.

Tool holder offset

Tool length offset

Rotation center

Tool

length

This function compensates for a slight shift of the rotation axis origin

caused, for example, by thermal displacement. .

Set offsets relative to the rotation angles of the rotation axes in parameter.

D Parameter–based

rotation angle

specification

D Tool holder offset

D Rotation axis origin

compensation and

rotation axis offset
