B–63522EN/02

3. INTERPOLATION FUNCTIONS

NC FUNCTION

Specifying an intermediate and end point on an arc enables circular

interpolation in a 3–dimensional space.

The command format is as follows:

G02.4 X

α1

β1

; First block (mid–point of the arc)

α1

β1

; Second block (end point of the arc)

α,β : Arbitrary axes other than the 3–dimensional circular inter-

polation axis (up to two axes)

Instead of G02.4, G03.4 can also be used. There is no difference in

movement between these commands.

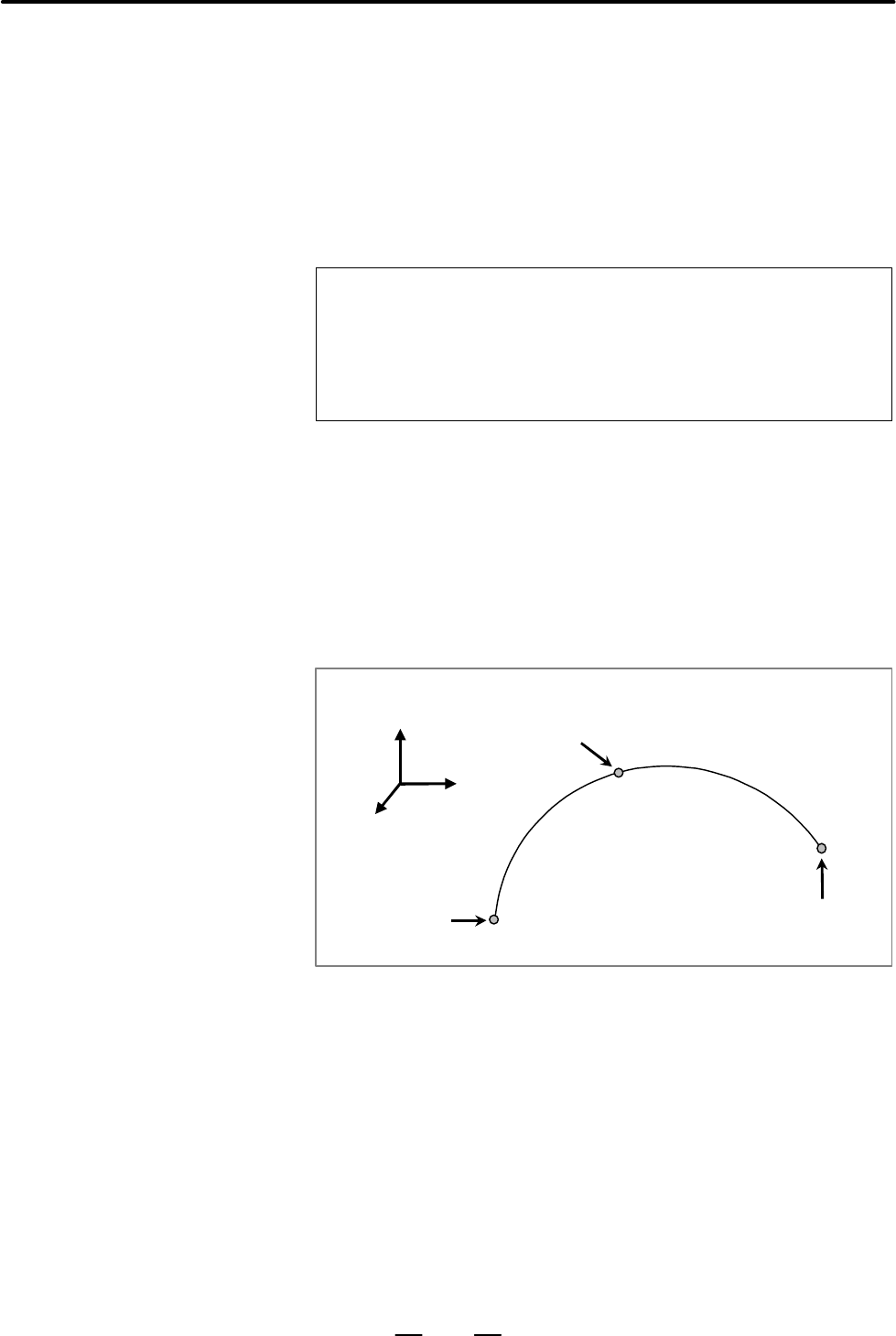

An arc in a 3–dimensional space is uniquely defined with its start point

(current position) and a specified intermediate point and end point, as

shown below. Two command blocks are used to define this arc. The first

command block specifies the tool path between the start point and

intermediate point. The second command block specifies the tool path

between the intermediate point and end point.

Start point

Mid–point

(X1,Y1,Z1)

End point

(X2,Y2,Z2)

Fig. 3.16 Start, Mid, and End Points

3.16

3–DIMENSIONAL

CIRCULAR

INTERPOLATION

(G02.4 AND G03.4)

Format

D Start point, mid–point,

and end point
