35.PERSONAL COMPUTER
FUNCTION
NC FUNCTION
445

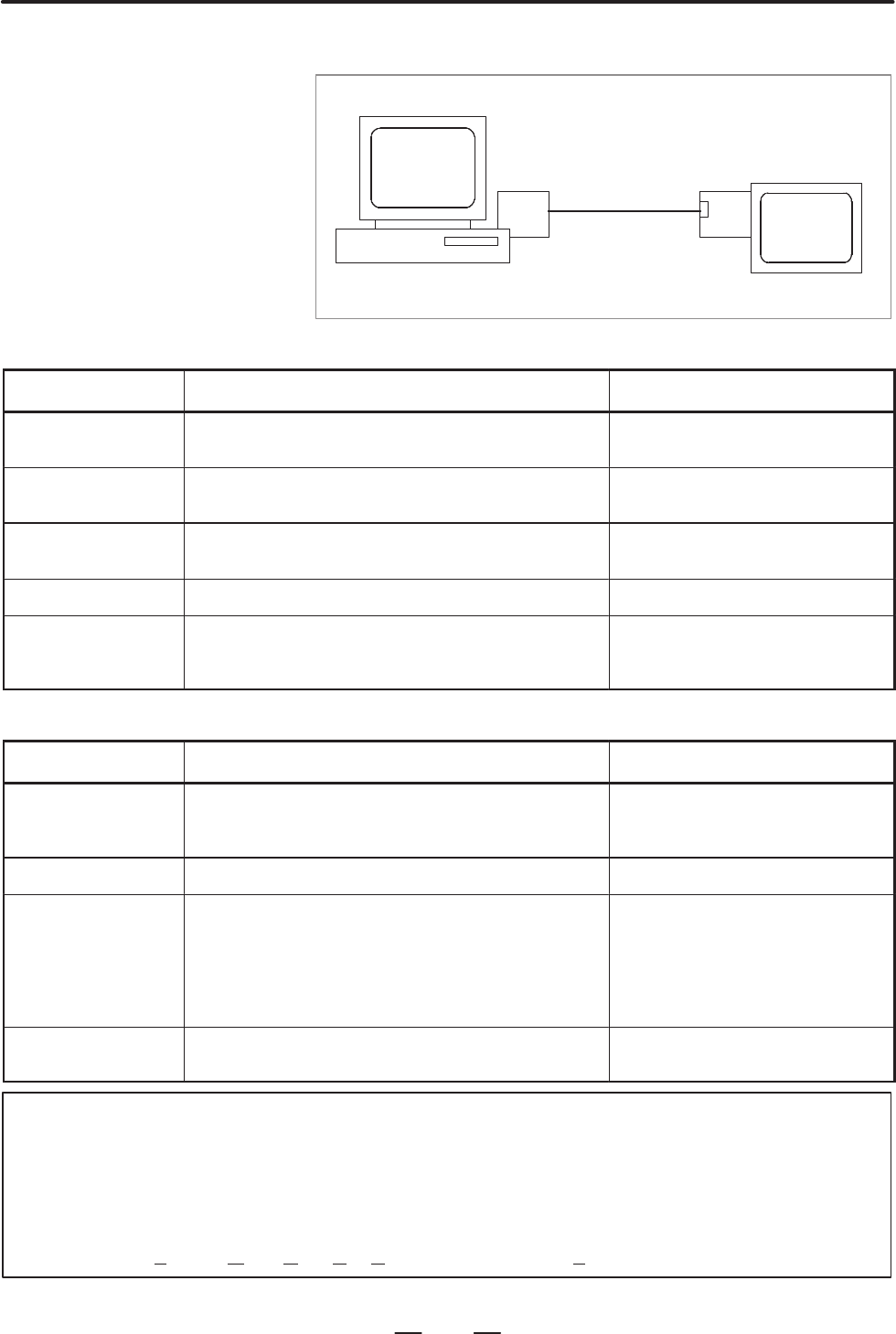

Personal
HSSB interface board
High–speed
serial bus
HSSB interface board
CNC/CNC control unit
Hardware specifications of the high–speed serial bus
Item
Specification Remarks
Interface board in
CNC
For LCD–mounted type option slot
For stand–alone type option slot
Interface board in
personal computer
For ISA bus, HSSB 1 channel
For ISA bus, HSSB 2 channel
ISA compliant
Power supply used: +5 V only
For PCI bus, HSSB 1 channel
For PCI bus, HSSB 2 channel
PCI compliant
Power supply used: +5 V only
Connection cable Optical fiber cable Maximum length: 100 m
Personal computer
requirements
CPU: PentiumOor higher
At least one ISA or PCI slot (depending on the interface
board used in the selected personal computer) *1
For the installation requirements of
the personal computer, refer to the
manual on the personal computer.
Software of the personal computer section
Item
Specification Remarks
Operating system
WindowsR 95
Windows NTR 4.0
WindowsR 2000 *1
Expansion library FOCAS1 *2
Package software
Basic operation package
Milling animation function
CNC screen display function
Ladder editing package
DNC operation management package
Operation status management package
Optional
Development tool
Visual C++R
Visual BasicR *1
Microsoft Corporation
NOTE
*1 Intel, Pentium are registered trademarks of Intel Corporation.
MIcrosoft, Windows, Windows NT, VIsual C++, Visual Basic are registered trademarks of
Microsoft Corporation.
Each companie’s name and product’s name is the trademark or registered trademark.
*2 FOCAS1: F
ANUC Open CNC API Specifications version 1
35.4
SYSTEM IN WHICH A
COMMERCIALLY
AVAILABLE
PERSONAL
COMPUTER AND
THE CNC ARE
CONNECTED VIA
THE HIGH–SPEED
SERIAL BUS
