Conversional Automatic Programming (CAP) Operators manual Page 144

Operators manual
B–61804E–2/05
3. EXECUTION OF
SYMBOLIC FAPT
PROGRAMMING AND
OPERATION BY SYMBOLIC FAPT
133
(1)Setting the tool data
Press the TOOL DATA soft key.
TOOL TOLING
DATA INFOR.

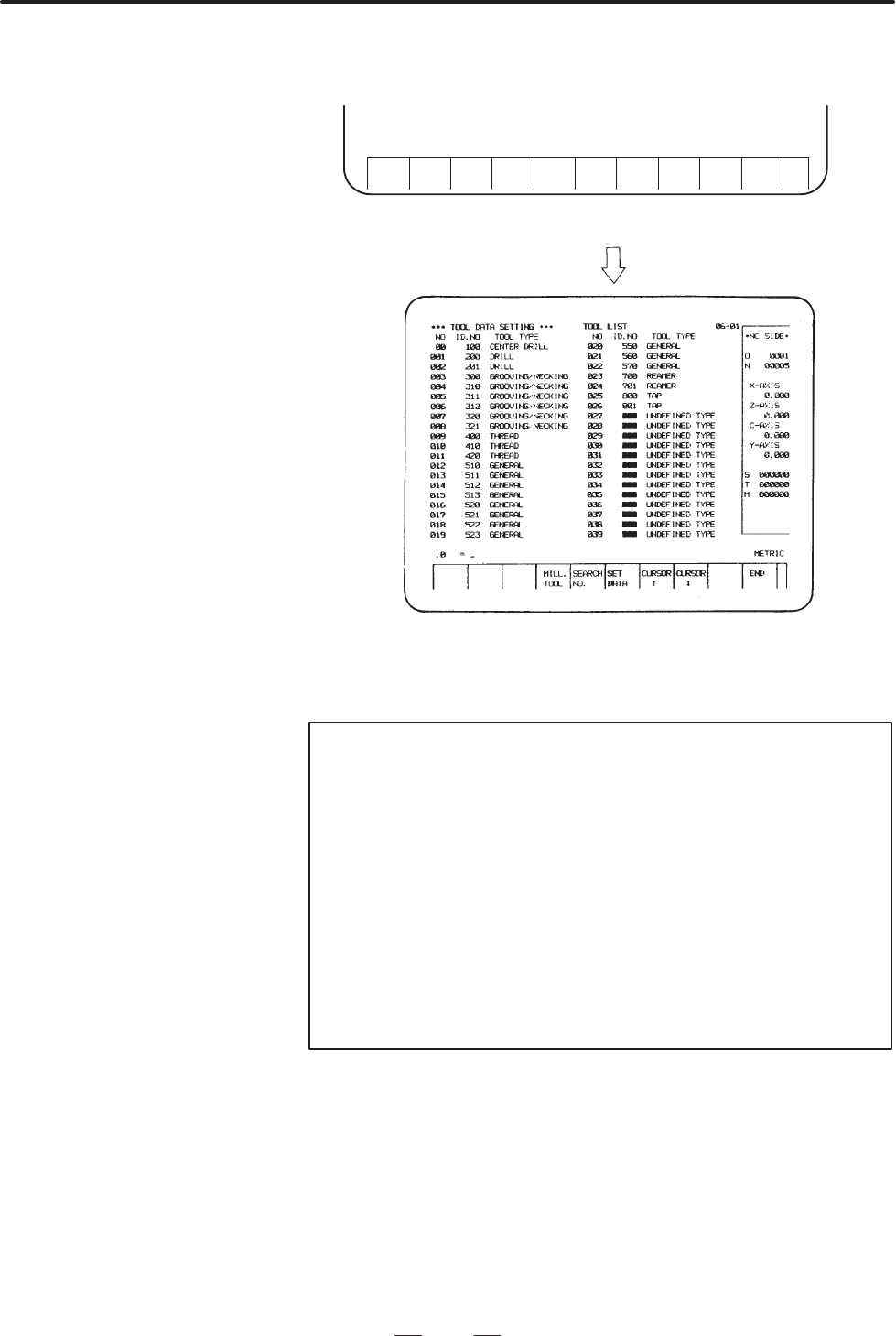

List screen on which the tool data can be set
When the TOOL DATA soft key is pressed, the tool data list is
displayed. On the list screen, the tool data can be set, modified, or
deleted.
NOTE
When the tool DATA soft key is pressed on the machining
process list screen, the tool list screen shows the data of
turning tools. To set the data of a milling machining tool,
press the MILLING TOOL soft key.
When the TOOL DATA soft key is pressed on the tool data
setting screen of a process, the data of tools of the current
process is displayed.
If the current process is turning, the list of turning tools is
displayed. If the current process is C–axis machining or
Y–axis machining, the list of milling machining tools is
displayed.
