Conversional Automatic Programming (CAP) Operators manual Page 725

Operators manual
B–61804E–2/05
A. SETTING DATA,
SYSTEM PARAMETER, MTF
APPENDIX
75

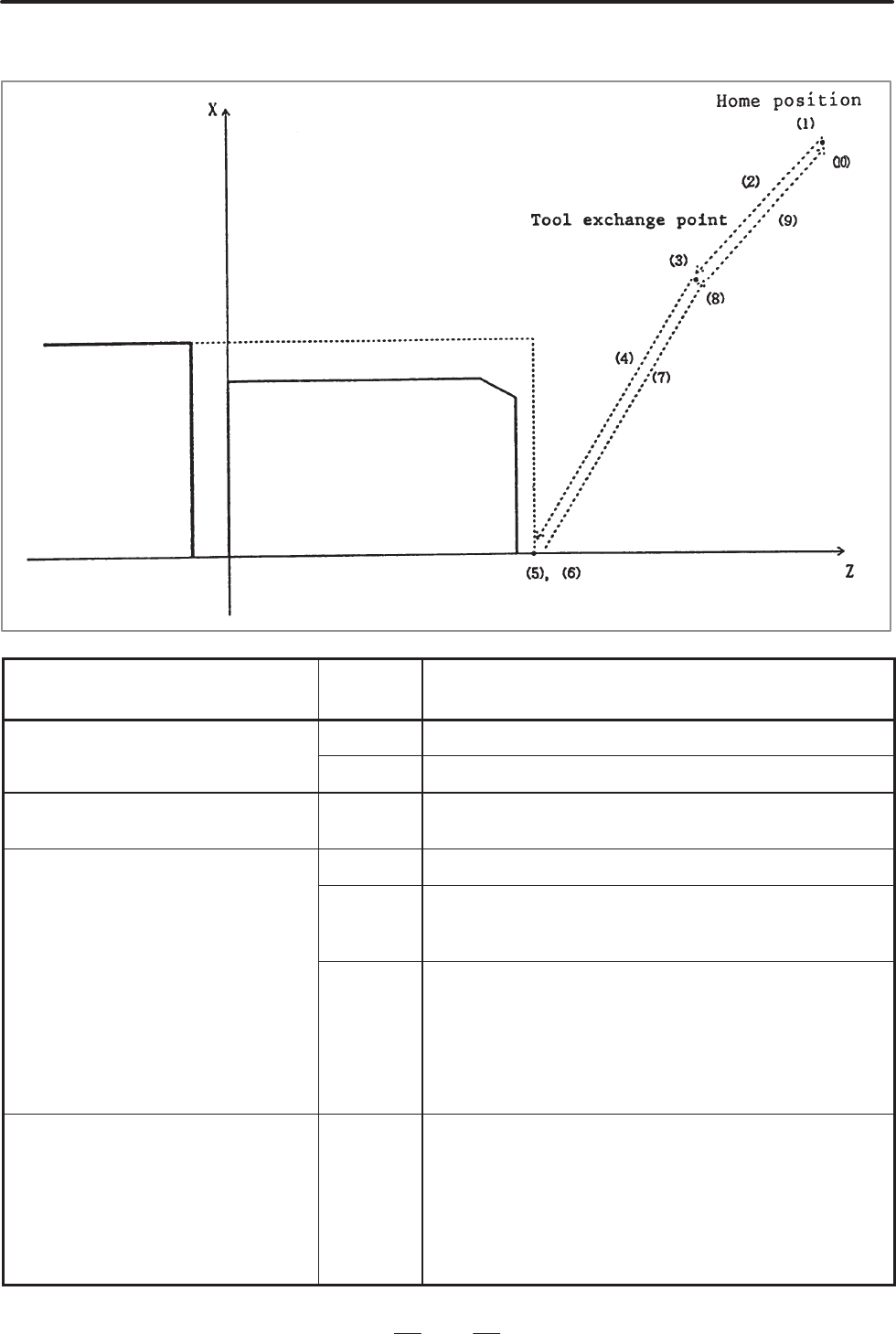

4) Slide stop system – 2
Point referenced
Parameter
No.
Descriptions
(1) Home position (start of program)
2000 Feed, EOR, and program number
2016 G50 X_ Z_ ;
(2) Home position
→ Tool exchange point
2017 Movement to the tool exchange point
G0 X_ Z_ ;
(3) Tool exchange point (start of process)
2036 Start part of bar feed process
2016 Coordinate system setting and tool selection
G50 X_ Z_ S_ ;
G0 T_ ;
2024
or
2028
When constant surface speed control is not performed:
G97 S_ M3 ;
When constant surface speed control is performed:
G96 S_ M3;
It follows the setting of bit 0 of system parameter number 107.
(4) Approach
2024 or
2027 and
2028
First movement from the tool exchange point Coolant on
Simultaneous 2 axes
Simultaneous 1 axis
Select the Simultaneous 2 axes or 1 axis depending on the
setting of bit 3 of system parameter No.107.
