2. CAUTIONS FOR USING
Symbolic FAPT
78
When the machining is defined (Menu No.4) or NC data is prepared
(Menu No.5), the following error message may be displayed: “I
CANNOT RUN ANY FARTHER. CHECK THE DEFINED TOOL OR
CUTTING AREA.” In the following cases, this error may be produced.

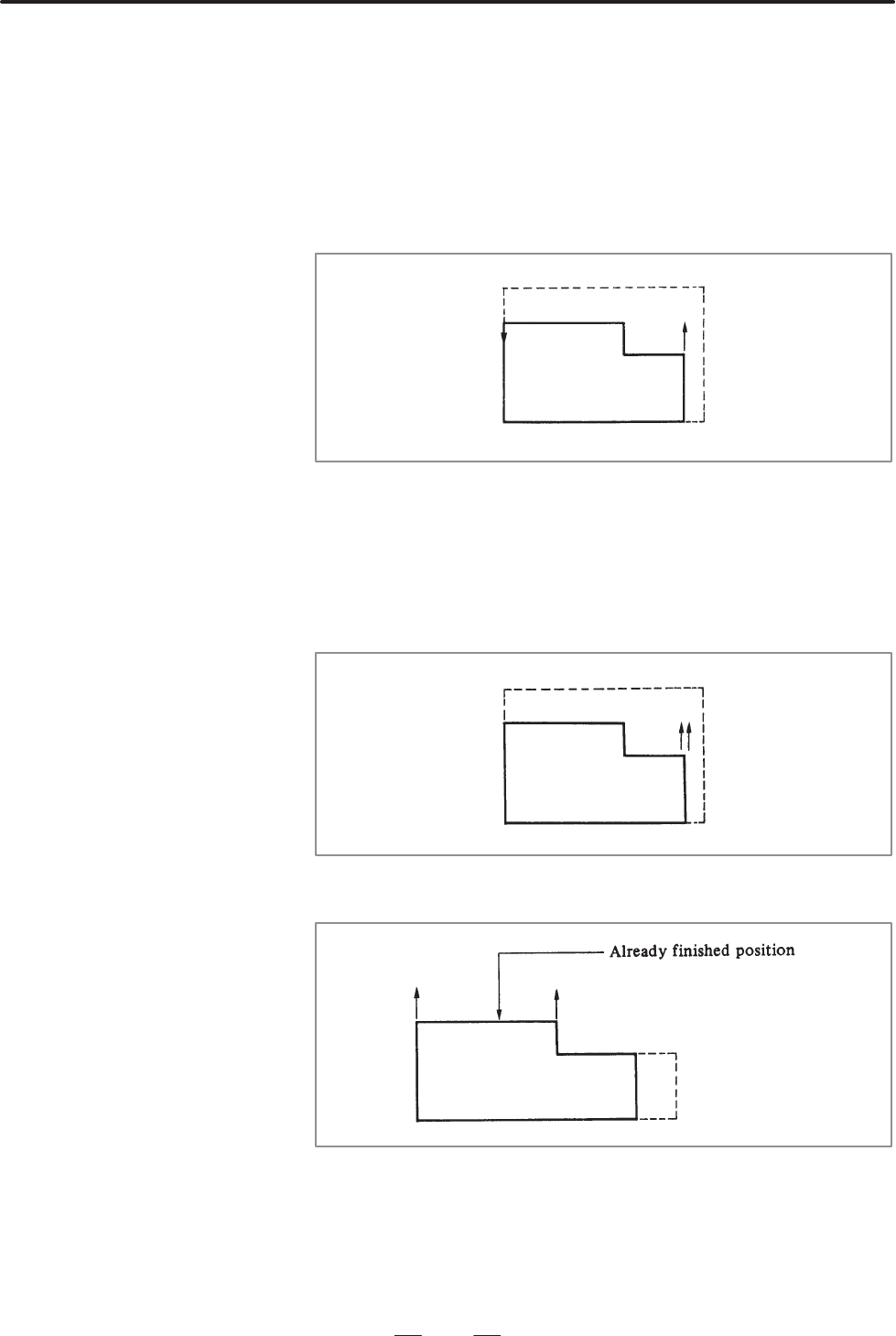

(1)When roughing, semi–finishing and finishing:
1) When the designation of dividing direction is not correct in the
designation of machining area:
Example)
2) When the dividing direction such that the area to be cut is not
present as a result in the designation of machining area is
designated:
Example 1)
When the dividing direction was designated, the start and end
points were set to the same position and the same direction was
designated.
Example 2)
The already finished place was designated as a cutting area.
2.11
ERROR WHEN NC
DATA IS PREPARED
