Conversional Automatic Programming (CAP) Operators manual Page 494

Operators manual
Y–AXIS FAPT FUNCTION
B–61804E–2/05
2. PART FIGURE DEFINITION
(MENU 2)
230

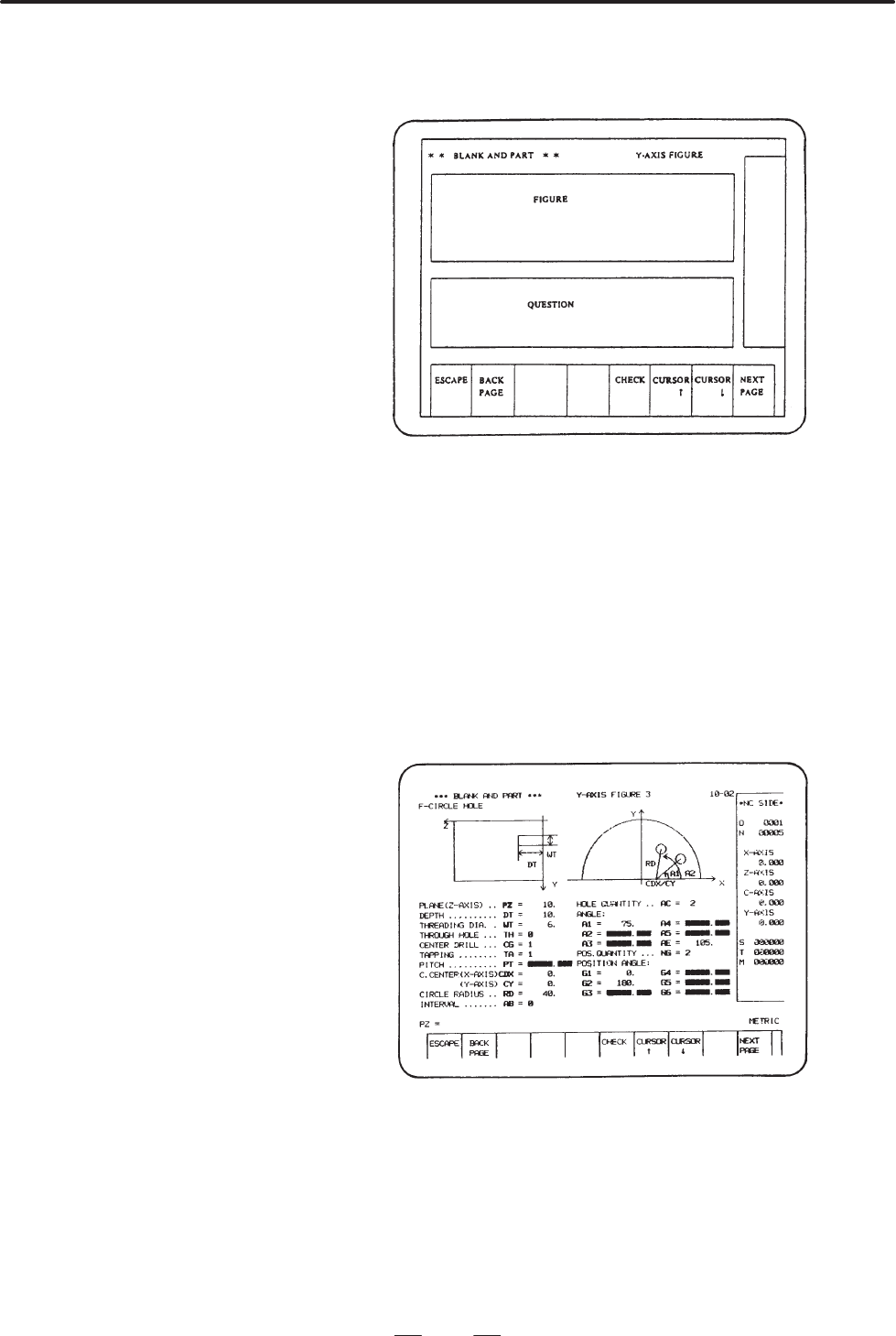

The data input screen, featuring a figure for Y–axis machining (excluding
the machining of a figure on a side face or end face) is configured as shown
below:
Soft keys
ESCAPE: Returns the display to the program menu screen.
BACK PAGE: Returns the display to Y axis machining menu screen.
When this key is depressed in the course of data setting,
the already input data becomes invalid.
CHECK: Draws the figure according to the input data.
(Only patterns defined here are drawn.)
CURSOR´
CURSOR±: Moves the cursor forward and backward.
NEXT PAGE: Y axis machining menu screen proceeds.
(1)Screen for specifying holes on a circumference on the end face
Specify the following values:
PLANE (Z–AXIS): PZ = Position of the drilling plane
DEPTH: DT = Hole depth
THREADING DIA: WT = Hole diameter
THROUGH HOLE: TH = 1 for through hole, 0 for blind hole
CENTER DRILL: CG = 1 for center drilling, 0 for other
machining
