Conversional Automatic Programming (CAP) Operators manual Page 499

Operators manual
B–61804E–2/05
2. PART FIGURE DEFINITION
(MENU 2)
Y–AXIS FAPT FUNCTION
235

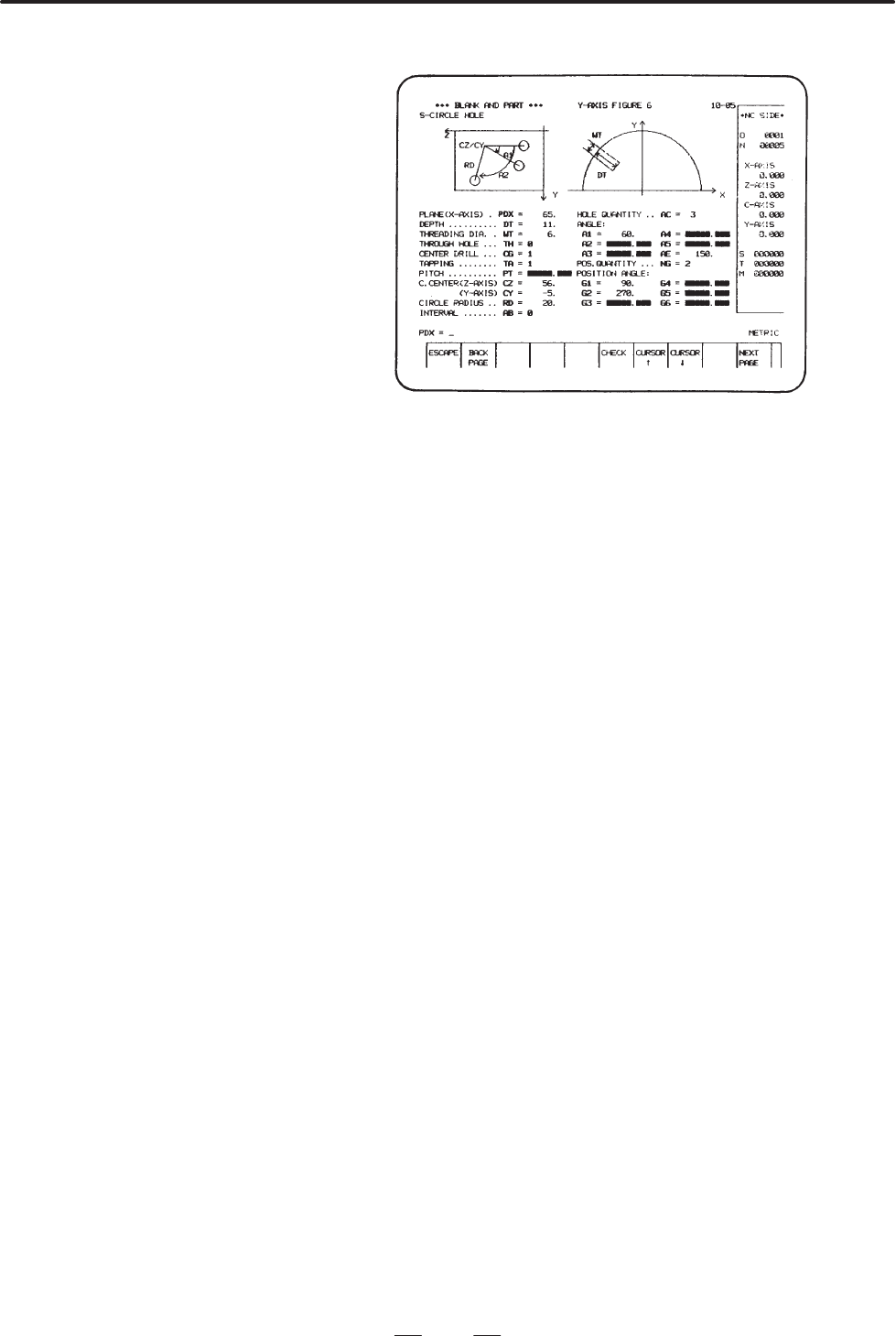

(4)Screen for specifying holes on a circumference on the side face
Specify the following values:
PLANE (X–AXIS): PDX=Position of the drilling plane (radius)
DEPTH: DT = Hole depth
THREADING DIA: WT = Hole diameter
THROUGH HOLE: TH = 1 for a through hole, 0 for a blind hole
CENTER DRILL: CG = 1 for center drilling, 0 for other
machining
TAPPING: TA = 1 for tapping, 0 for other machining
PITCH: PT = Pitch of tapping
C.CENTER (Z–AXIS): CZ = Center of the circumference
(Y–AXIS): CY = Center of the circumference (radius)
CIRCLE RADIUS: RD = Radius of the circumference
INTERVAL: AB = Whether multiple holes are drilled at
regular intervals (0 for regular intervals,
1 for irregular intervals)
HOLE QUANTITY: AC = Number of holes (Up to 100 for drilling
at regular intervals, up to 6 for drilling at
irregular intervals)
ANGLE: A1 = Hole position (Angle, the angle of the
first hole when multiple holes are
drilled)
A2 = Position of the second hole (for drilling
at irregular intervals)
A3 = Position of the third hole (for drilling at
irregular intervals)
A4 = Position of the fourth hole (for drilling at
irregular intervals)
A5 = Position of the fifth hole (for drilling at
irregular intervals)
AE = Angle of the last hole if multiple holes
are drilled
POS.QUANTITY: NG = Number of phases (up to 6)
