2. PART FIGURE DEFINITION
(MENU 2)
Y–AXIS FAPT FUNCTION
233
POS.QUANTITY: NG = Number of phases (up to 6)
POSITION ANGLE: G1 = Position of the first phase (angle)
G2 = Position of the second phase (angle)
G3 = Position of the third phase (angle)
G4 = Position of the fourth phase (angle)
G5 = Position of the fifth phase (angle)
G6 = Position of the sixth phase (angle)

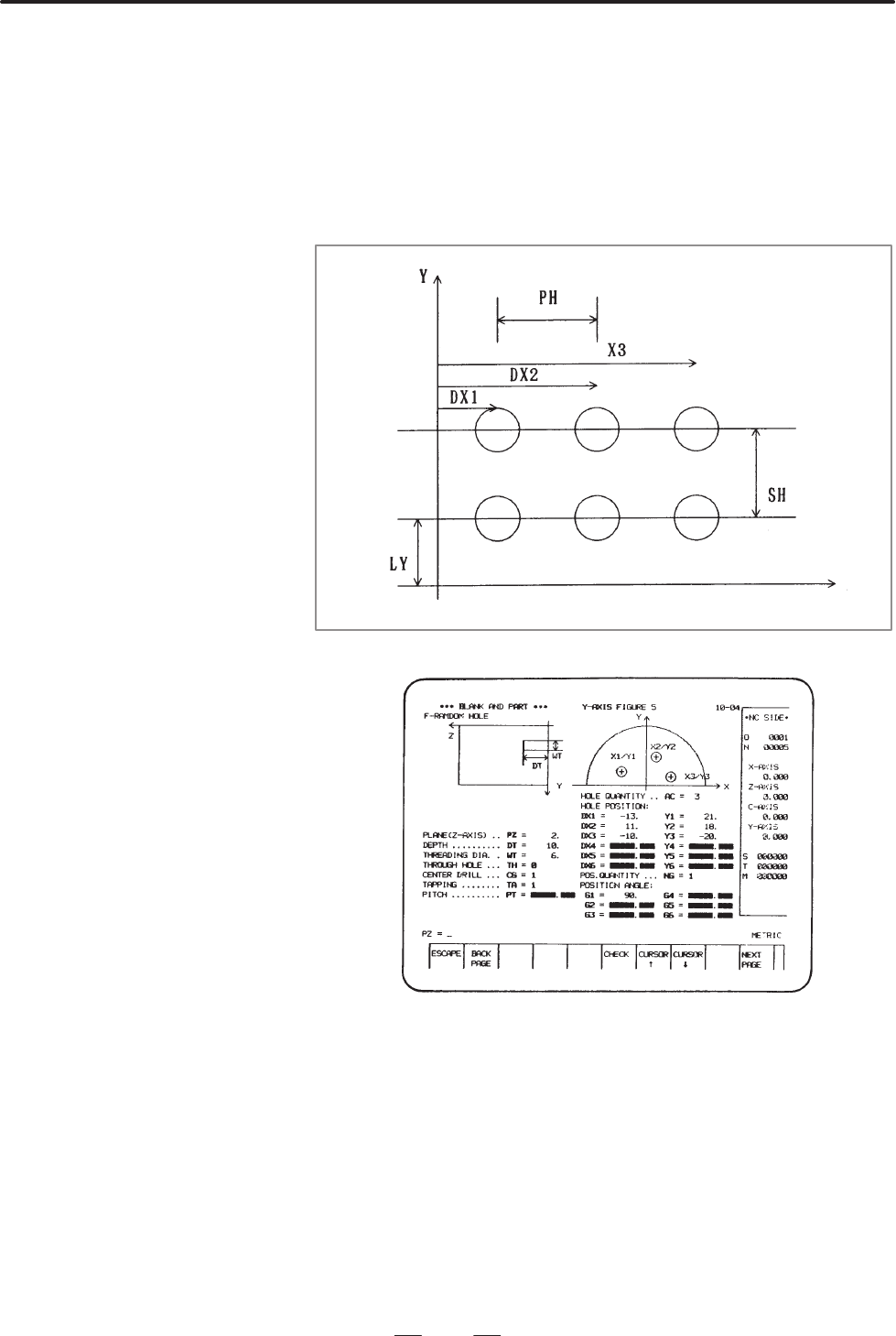

(3)Screen for specifying holes at desired positions on the end face
Specify the following values:
PLANE (Z–AXIS): PZ = Position of the drilling plane
DEPTH: DT = Hole depth
THREADING DIA: WT = Hole diameter
THROUGH HOLE: TH = 1 for a through hole, 0 for a blind hole
CENTER DRILL: CG = 1 for center drilling, 0 for other
machining
TAPPING: TA = 1 for tapping, 0 for other machining
PITCH: PT = Pitch of tapping
HOLE QUANTITY: AC = Number of holes (Up to 6)
