Conversional Automatic Programming (CAP) Operators manual Page 367

Operators manual




B–61804E–2/05
2. CAUTIONS FOR USING
Symbolic FAPT
VARIOUS FUNCTIONS AND
PRECAUTIONS OF Symbolic FAPT
77

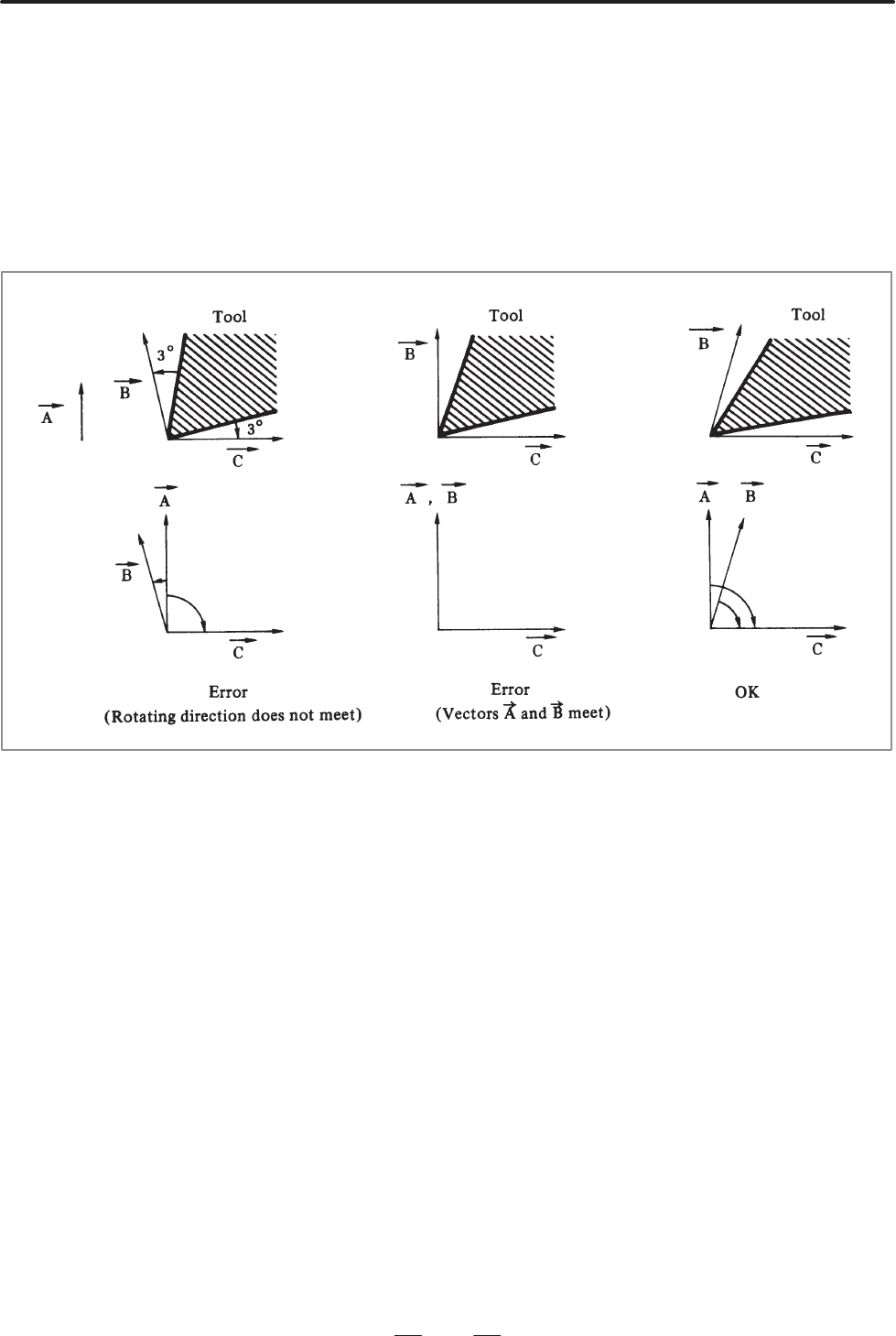

For the cutting direction vector (A) as viewed from the tool tip, and the
cutting edge angle vector of major cutting edge (B) and the cutting edge
angle vector of minor cutting edge (C) as viewed from the tool tip by
taking the cutting edge protective angle (standard value: 3°) into
consideration,
an error is produced, if the rotating direction from A to B does not meet
the rotating direction from B to C, and also
an error is produced if A meets B.
Example when the cutting direction is ;
When cutting is made at the minor cutting edge, consider the above
explanation by exchanging vectors B and C.
2.2
CUTTING DIRECTION
AND CUTTING EDGE
ANGLE
