Conversional Automatic Programming (CAP) Operators manual Page 628

Operators manual
B–61804E–2/05
5. PROCESSING DEFINITION
DOUBLE SIDED MACHINING
369
D The processing procedure data becomes common to the First
processing and a Secondary processing.

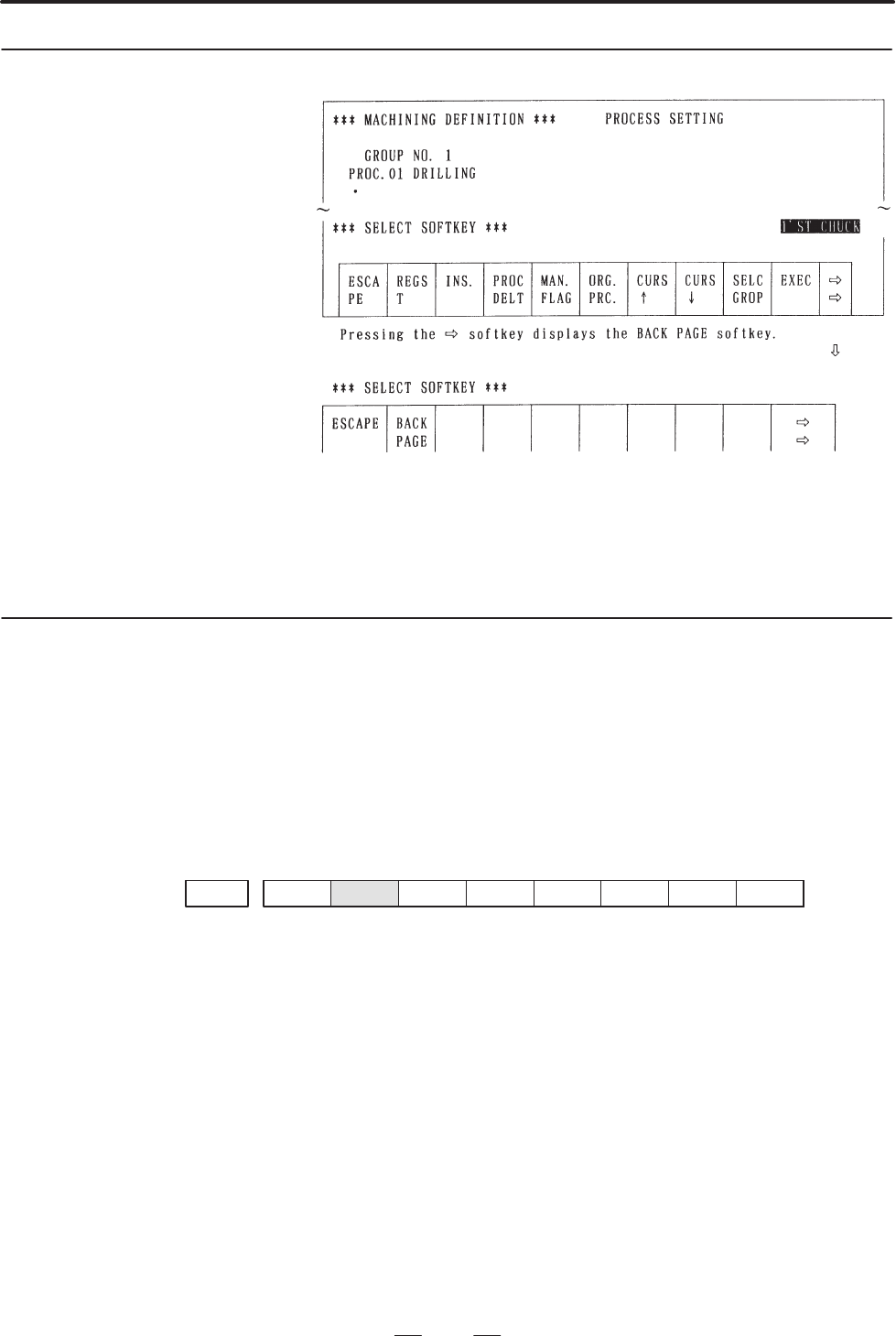

D When “BACK PAGE” is pushed, it will return to the screen of Fig.
5.3.1 (b).
The machining list screen is displayed while Automatic processing
decision.
The display of “EXECUTING” blinks while processing. Each data input
screen of the processing definition is not displayed. However, the screen
is displayed and the processing stops temporarily in the screen specified
to be going to input data with the manual and the screen where the
undefined data exists. Can be display each screen of the processing
definition by setting system parameter.
#7
708
#6 #5 #4 #3 #2 #1 #0
Bit 6 Each screen of Automatic process decision
1 : Displays.
0 : Does not display.
5.3.2
Process Setting Screen
5.3.3
Automatic Processing
Decision
System parameter
Previous page
Next page
