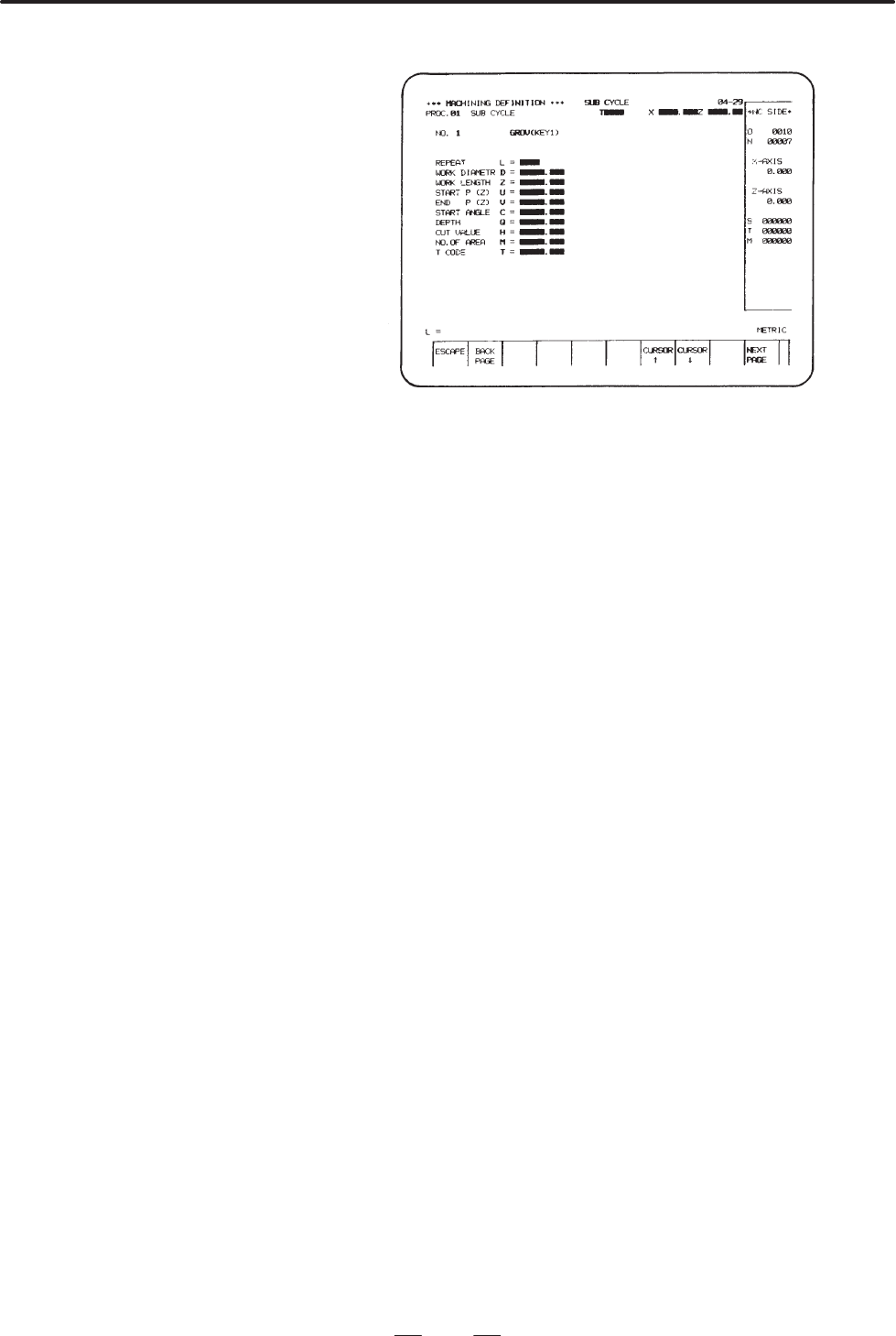

(3)“Sub cycle data” screen
The repetition count and the other questions are asked on this screen.
The inputtable values are within the ranges of 0 to 9999 for the
repetition count, of –9999. to 9999. for the arguments and of 1 to 2 for
Turret No.
If the data is left undefined here, the NC data of that address is not
output.
(Soft keys)
[CURSOR ´] [CURSOR ±] These keys are depressed to select the. .
question to be set.
[NEXT PAGE] This key is depressed when the data setting is all. .
over. The display returns to the “MACHINING
DEFINITION (kind of machining)” screen.
[ESCAPE] The display returns to the first menu pattern.. . . . .
