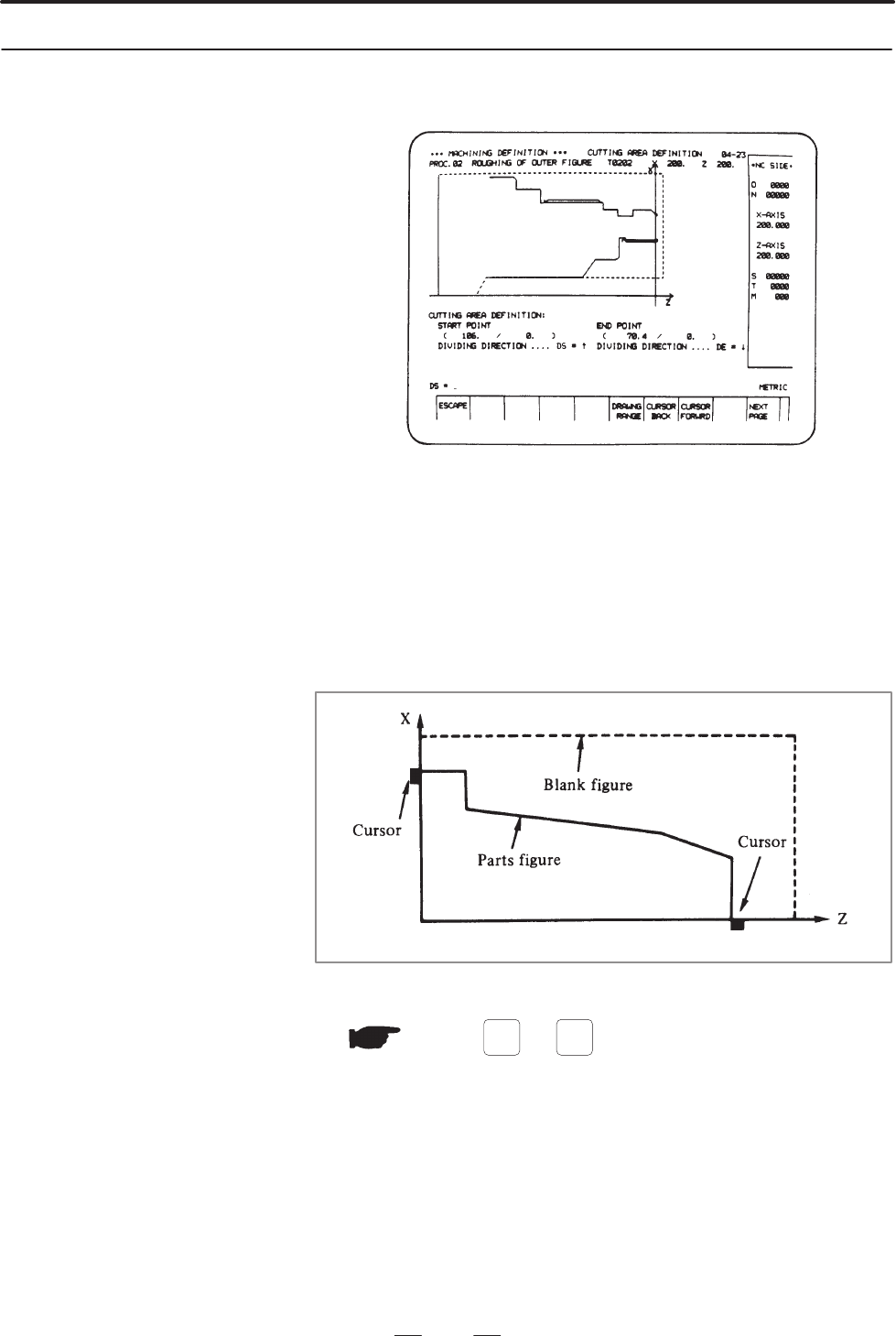

The cursors (D) are displayed along the parts figure to specify the cutting
area.
A blank figure (dotted line) and machining figure (solid line) will be
drawn on the CRT screen, the system asks you the dividing directions.
(1)Machining area
Designate the cutting area of parts figure from the start point to end
point by flickering cursors on the CRT screen. One cursor shows the
start point, while the other shows the end point of the cutting area.
shift the cursor along the parts figure for selecting the start point and
end point.
(2)Movement of cursor
Depress
CURSOR
FORWRD
or
CURSOR
BACK
key.
The cursor shifts along the parts figure, each time the above key is
pressed.
(3)Division
After designating the start point and end point, input the dividing
direction of the blank to define the cutting point.
Depress arrow key when the system asks you the following questions.
DIVIDING DIRECTION ... DS = Dividing direction at start point
DIVIDING DIRECTION ... DE = Dividing direction at end point
B.1.1.9
Cutting area definitions
