Series 16i/18i/21i/160i/180i/210i-Model A Startup Guide Page 14

Startup Guide
1 - 10 16
i
/18
i
/21
i
Startup Guide -
May 2000
B-63003EN-2/01
1
Section 2 Connection Diagram
The block diagram below is meant to give to you an overall perspective of the main
connections involved in a GE Fanuc 16
i
/18
i
/21
i
machine tool control system. Although it
illustrates typical connections encountered in most applications, this diagram does not address
every single connection possibility.
The left side of the diagram represents the control, and the right side illustrates the servos,
spindles, I/O connections, etc. Please note that the terminal block labels
TB1
and
TB2
on this
diagram consist of multiple terminal screws which will be discussed in more detail in this
chapter.

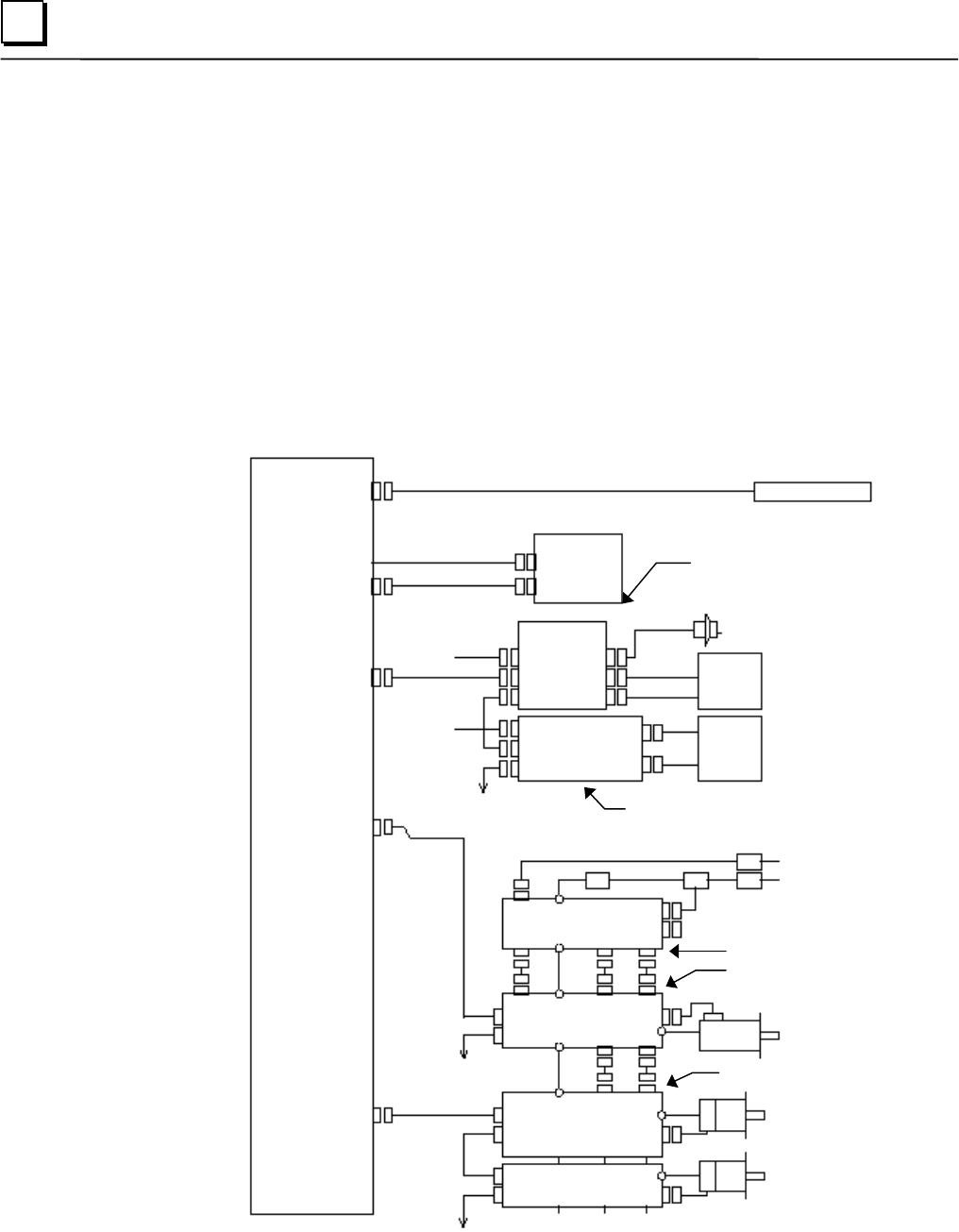

Figure 1 - 8. Total connection diagram for the 16i/18i/21i machine tool control system
spindle amplifier module
power supply module
CX1B TB1 JX1B
CX1A TB2 CX3
CX4
AC reactor
MCC
circuit breaker
AC 200V
AC 200V
to next I/O module
CP32 I/O unit
JD1B model A
JD1A
MDI unit
CK2
CK1
24V DC power
D
C
24
V
D
C
24
V
CPD1 JA3
JD1B CE53
JD1A CE54
operator’s
panel
power
magnetics
cabinet
manual pulse generator
24V-IN (CP1A)
MDI (CA55)
I/O Link (JD1A)
SPDL (JA41)
FSSB (COP10A)
16
i
/18
i
/21
i
control unit
to 2
nd
spindle
to 3
rd
servo
1
st
axis servo
motor
2
nd
axis servo
motor
serial spindle
motor
CX1A TB1 CX2A JX1A
JY2
CXIB TB1 CX2B JXIB
JF1
TB1 CX2B JXIB
COP10A
COP10B
COP10A
COP10B JF2
TB2
TB2
TB1 CX2A CX2B
servo amplifier module
operator’s panel I/O module
model A I/O unit
TB2
circuit breaker
