Series 16i/18i/21i/160i/180i/210i-Model A Startup Guide Page 33

Startup Guide
B-63003EN-2/01 Chapter 1 Assembling the 16i/18i/21i 1 - 29
1
Connecting the Control to the I/O Link
This section contains an example of a connection on the GE Fanuc I/O link. Since it would be
impossible to take a look at all of the possible setup combinations, we will concentrate on the
recommended GE Fanuc operator’s panel for i-series controls and the I/O Unit Model A.
Figure 1-15 below is the connection diagram for our example.
Even if this differs from your own setup, it might help to just browse through this section to see
how the connections are made. You will notice, for example, that connections on the I/O link
always go from connector
JD1A
on one module to connector
JD1B
on another. Please refer to
the 16i /18i / 160i / 180i - Model A Connection Manual or the 21i / 210i - Model A
Connection Manual for connection information not covered in this chapter.

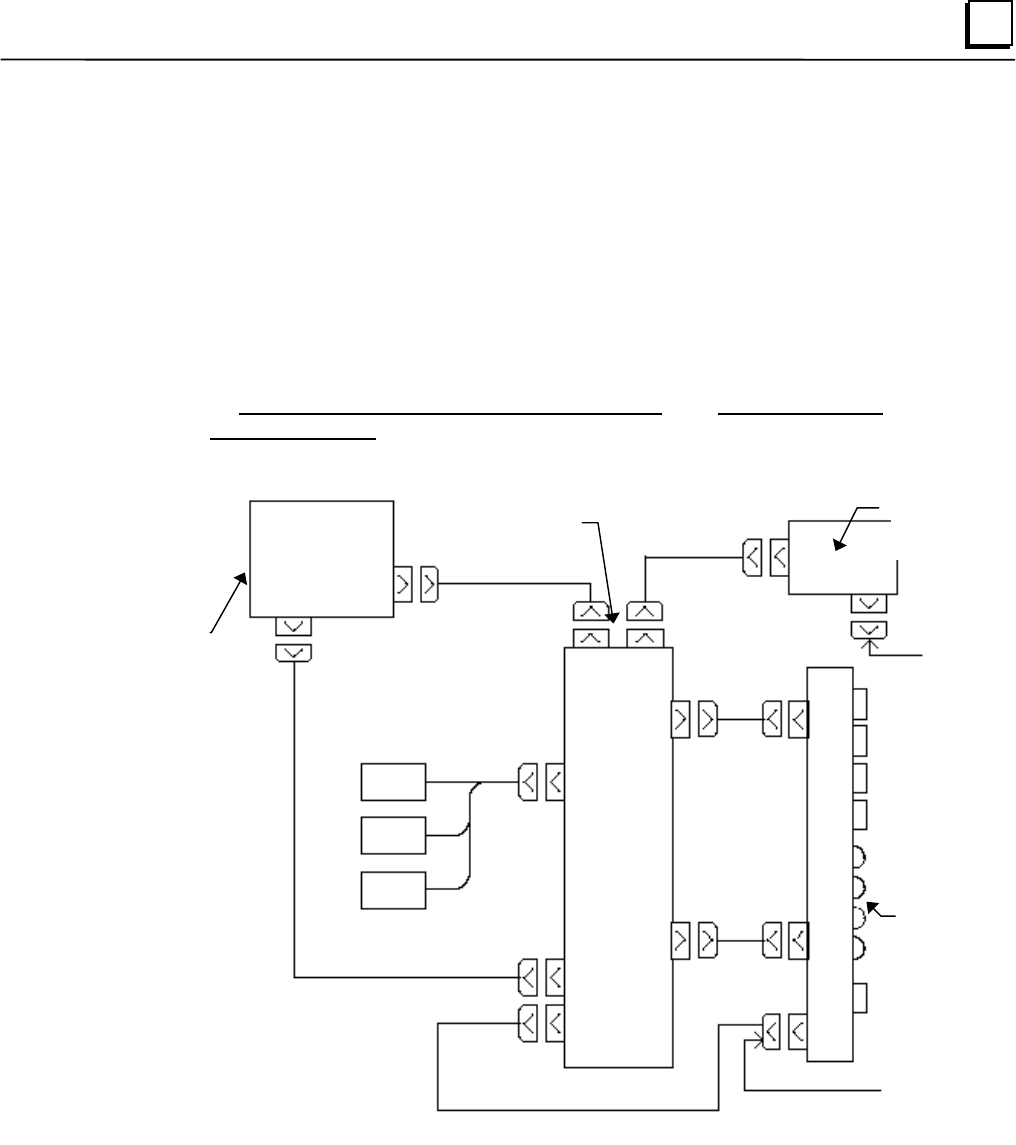

Figure 1 - 15. Connecting the GE Fanuc operator’s panel
JD1A
JD1B
MPG
MPG
MPG
CPD1
CPD1
CE54
CE53
JA3
JD1B JD1A
control
Model
A I/O
operator’s
p
anel
machine
operator’s
panel
PL1
CP32
CP1A
in from 24V DC
power supply
in from 24V DC
power supply
