Series 16i/18i/21i/160i/180i/210i-Model A Startup Guide Page 15

Startup Guide
B-63003EN-2/01 Chapter 1 Assembling the 16i/18i/21i 1 - 11
1
Section 3 Making the Connections
To make this section easier to read, all
part numbers have been underlined
and all
connector
names written in bold
.
Connecting the Control to the MDI Unit
The MDI unit is the manual data input device. Basically, it is the keyboard used to input data
such as programs and parameters into the CNC. A standard MDI unit is available for each of
the
i
-Series controls according to the specifications.
Follow these steps to connect the control to the MDI unit:
1
.
There are two connections required between these two units. Locate the flat, gray
cable with the blue connector. One end of this cable is already connected to the
control.
2
.
Insert the other end of the cable into the connector labeled
CK2
on the back of the
MDI unit. Gently press the two clamps on the connector together to snap the cable
into place.
3
.
Find the other cable which connects the control to the MDI unit. This cable is
identified by GE FANUC part LX660-2030-T010/L500R0 (0.5 m length) or
LX660-2030-T010/L1R003 (1 m length).
Connect one end of this cable to the connector labeled
CK1
on the back of the MDI unit.
4
.
Connect the other end to the
CA55
connector located on the back of the control.

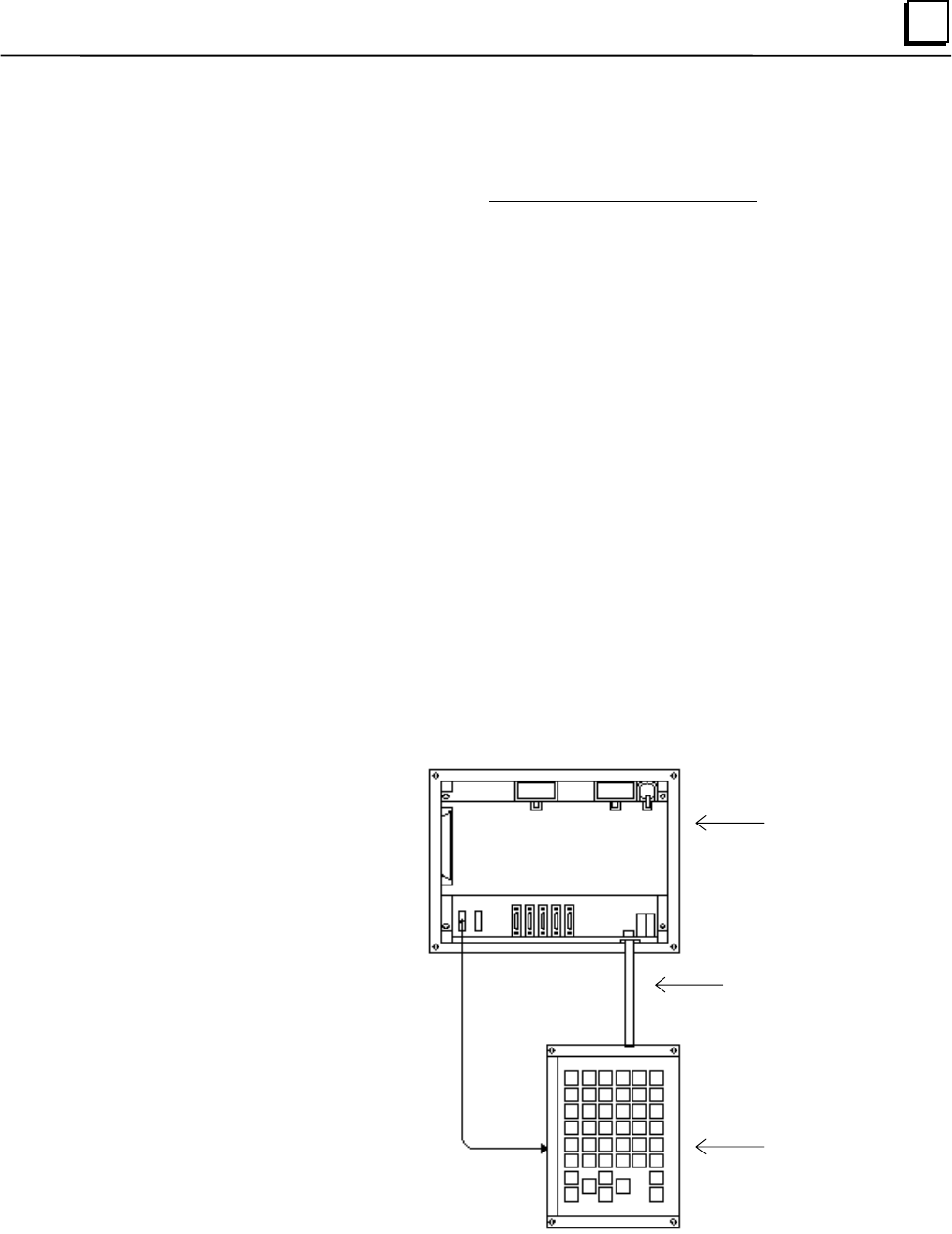

Figure 1 - 9. Connecting the control to the MDI unit
MDI unit
control unit
insert into
CK1
insert blue connector into
CK2
flat, gray cable
insert into
CA55
