Series 16i/18i/21i/160i/180i/210i-Model A Startup Guide Page 37

Startup Guide
B-63003EN-2/01 Chapter 1 Assembling the 16i/18i/21i 1 - 33
1

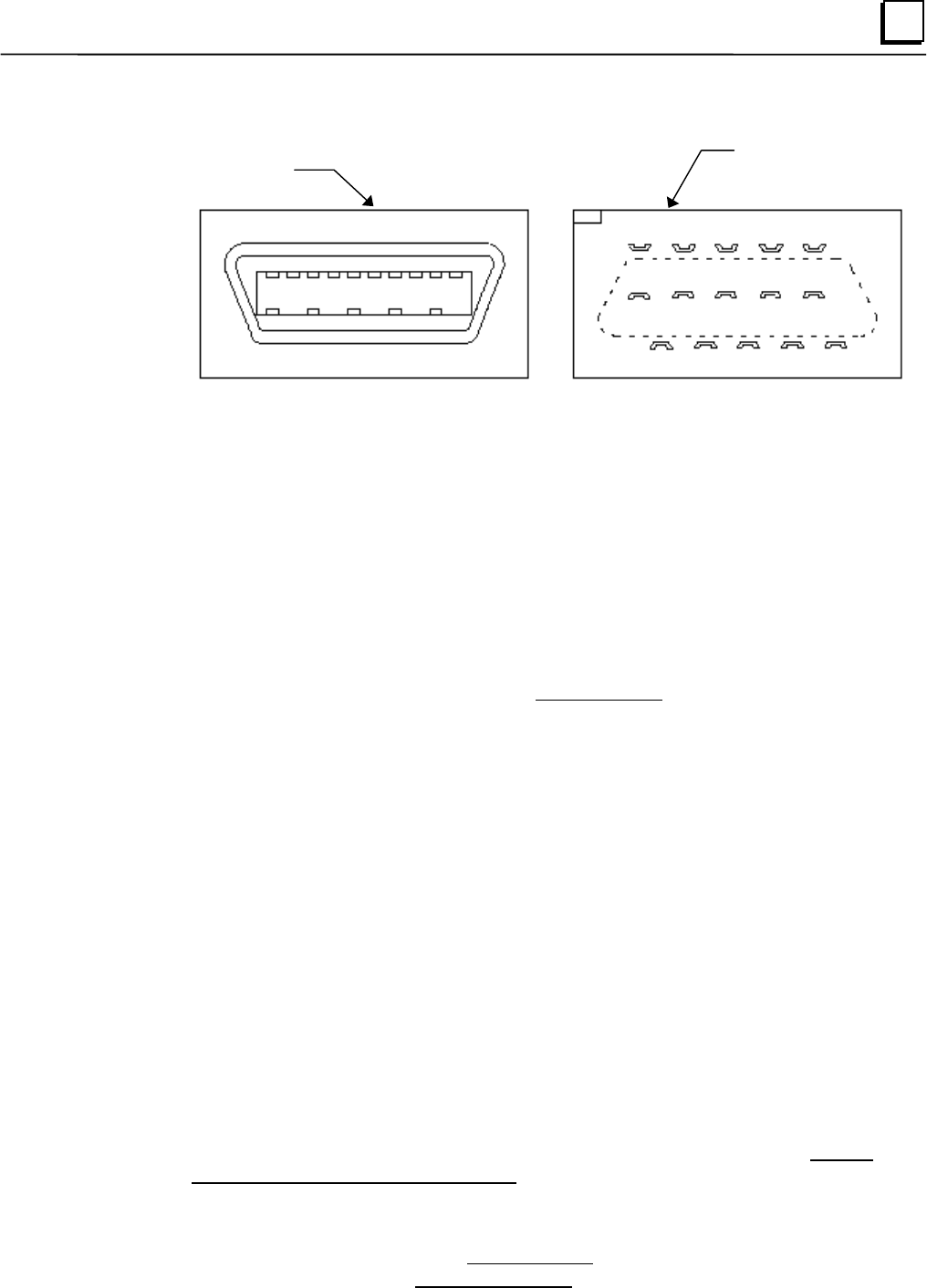

Figure 1 - 17. Pin layout on the MPG connector
I/O Unit Model A
Follow these steps to connect the I/O Unit Model A to your GE Fanuc operator’s panel.
1. Two I/O link connectors are supplied when you order the GE Fanuc operator’s panel.
They are identified by FANUC part #
A02B-0120-K301
, and you can use these to
make this connection yourself. However, if you choose to do this, you must supply the
cable.
2
.
If you have ordered the I/O link connection cables, you won’t need the connectors.
The cables will have one of the following GE Fanuc part numbers depending on its
length, see also Chapter 1 page 29.
Locate the cable you will be using for this connection.
3
.
Attach one end of this cable to connector
JD1A
on the operator’s panel I/O module.
4
.
Attach the other end of the cable to connector
JD1B
on the I/O Unit Model A interface
module (see Figure 1-6 for location of connectors).
5
.
Up to 1024 inputs and 1024 outputs can be assembled using Model A I/O. These I/O
modules may be “daisy chained”, by using a cable to connect
JD1A
from one module
to
JD1B
on the next module. The cable options for this connection are listed in step 2.
Connecting 24V DC Power to I/O Unit Model A
Follow these steps to connect 24V DC power to the Model A I/O modules. You must provide
the power supply. When selecting the power supply, please refer to Chapter 5 in the I/O Unit
Model A Connection/Maintenance Manual (publication no. B-61813E) to determine the
current requirements of each I/O module.
1
.
Locate the brown connector which connects the power to the I/O modules. It is
identified by FANUC part #
A02B-0072-K893
.
You must provide an 18 gauge (0.75 mm
2
) for this connection.
20 18 16 14 12
10 9 8 7 6 5 4 3 2
1
20 18 16 14 12
10 8 6 4 2
9 7 5 3
1
connector side view
(front)
soldering side view
(back)
