Power Connections to the Power Supply Module
Connecting the 3
φ
φφ
φ
motor power line
Follow this procedure to connect power to the power supply module:
1
.
You must supply the cable to connect 200V AC to the power
supply module. See Table 1-1 below to determine the
required cable gauge for your power supply module:
Table 1 - 1. Finding a suitable cable for your power supply module
Power Supply Module Suitable Cable Gauge
Model
AWG Metric
PSMR-3 12 > 3.5 mm
2
PSMR-5.5, PSM-5.5 10 >5.5 mm
2
PSM-11 8 >8 mm
2
PSM-15 6 >14 mm
2
PSM-26, PSM-30, PSM-45 4 >22 mm
2
2
.
Connect this cable to the power supply module according to Figure 1-10 below. The
three phases and ground must be attached securely to connectors
L1
,
L2
,
L3
, and
Ground
on the power supply module. The bottom terminal block on the power supply
module which consists of these four connectors is labeled
TB2
on Figure 1-8.
3
.
Install the circuit breakers, MCC, and AC reactor in series between the three-phase
power source and the power supply modules. The AC reactor is provided by GE
Fanuc. You must supply the circuit breakers and MCC. See Section 4.1.12 in the
Control Motor Amplifier
α
αα
α
series Description Manual (publication no. B-65162E)
for information on how to select the proper devices.

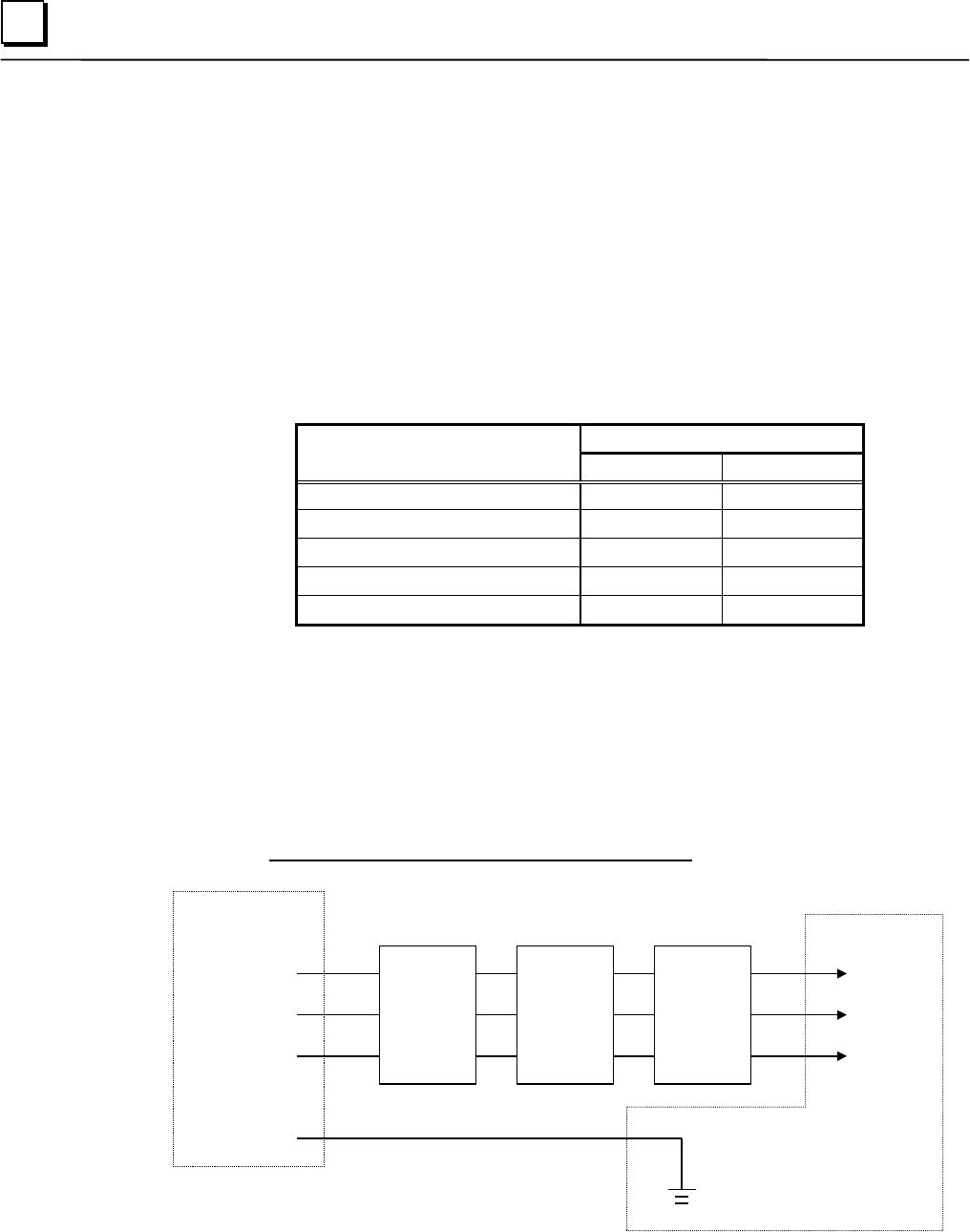

Figure 1 - 10. Connecting the motor power line to the power supply module
main power supply
3φ
200VAC
AC
reactor
MCCcircuit
breaker
R
S
T
Ground
L1
L2
L3
bottom terminal block
TB2
on power supply
module
