Servo Amplifier Alpha i Series Descriptions Page 184

Descriptions
9.CONNECTION B-65282EN/05
- 162 -

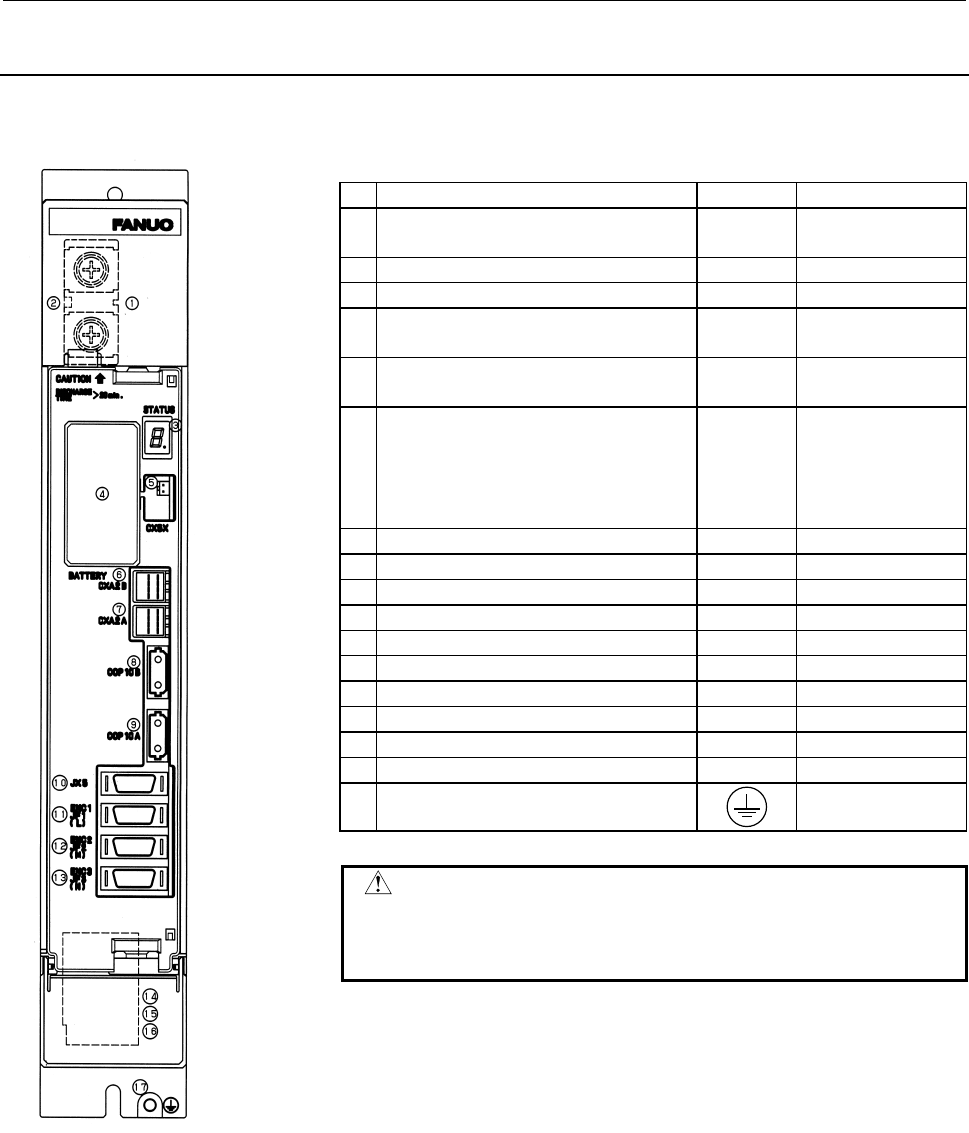

9.2.2 Servo Amplifier Module (SVM)
60/90mm-wide SVM
Table.9.2.2(a) Names of connectors and terminal blocks
No. Names Display Remarks
1 DC link terminal block
Display the terminal
block TB1
2 DC link charge LED (Warning)
3 Status LED STATUS
4
Location of the batteries for the SVM
built-in-type absolute Pulsecoder
BATTERY
5
Battery connector for the SVM built-in-
type absolute Pulsecoder
CX5X
6 Input connector for PSM interface CXA2B
24VDC power
supply
The interface for the
absolute Pulsecoder
batteries is included.
7 Output connector for PSM interface CXA2A
8 FSSB optical input connector COP10B
9 FSSB optical output connector COP10A
10 Signal check connector JX5 Unused
11 Pulsecoder connector : L axis ENC1/JF1
12 Pulsecoder connector : M axis ENC2/JF2
13 Pulsecoder connector : N axis ENC3/JF3
14 Connector for motor power line: L axis CZ2L For SVM1, CZ2
15 Connector for motor power line: M axis CZ2M
16 Connector for motor power line: N axis CZ2N
17 Tapped hole for grounding the flange
WARNING
Do not touch module components or connected
cables while this LED is lit. There is a danger of
electric shock.
