Servo Amplifier Alpha i Series Descriptions Page 267

Descriptions
B-65282EN/05 9.CONNECTION
- 245 -

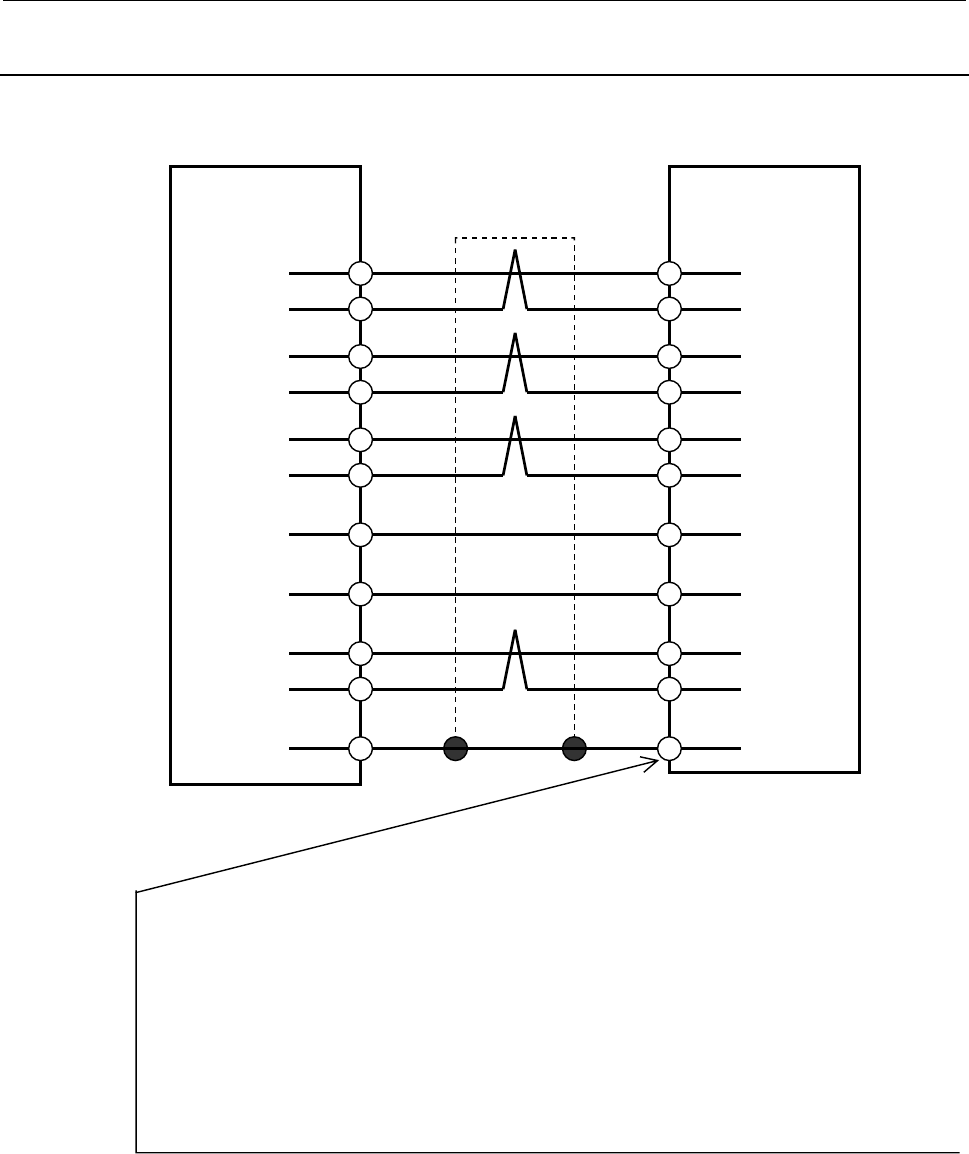

9.3.3.15 Details of cable K89
When the CZi sensor is used as a separate detector (connected to
connector JYA4), wiring for THR1 and THR2 is not required.
Manufactured by Hirose Electric Co., Ltd.
Crimp type
Crimping pin : HR22-SC-122 (15 pins are required for one connector)
Housing : HR22-12WTPA-20SC
Crimping tool : HR22-TA-2428HC (Hirose Electric Co., Ltd.)
Soldering type
HR22-12WTPA-20S
SPM JYA2 or
JYA4
(5) (16)MA VA
CZi sensor
Preamplifier
(7)
(18)MB VB
(9),(18),(20)
5V 5V (4),(5),(6)
(8)
(19)*MB *VB
(6) (17)*MA *VA
(12),(14),(16) 0V 0V (1),(2),(3)
(13)
(8)THR1 THR1
(15)
(9)THR2 THR2
(10) (7)SS SS
0.18mm
2
0.18mm
2
Shield
(1)
(14)MZ VZ
(2)
(15)*MZ *VZ
20-pin half-pitch connector
Cable specification :
6 common shielded cable
(Four 0.18mm
2
twisted pairs + 0.18mm
2
wires)
Recommended cable conductor : A66L-0001-0367
See Section 9.4.1 for explanations about the JYA2-side connector that
matches the recommended cable. See Appendix B, "About Cable
Conductors," for detailed explanations about the cable.
