Servo Amplifier Alpha i Series Descriptions Page 367

Descriptions
•Magnetic sensor signal conversion adapter
Specification number note
A06B-6111-H402
•Magnetic sensor
TYPE SPECIFICATION MAX SPEED FIGURE
Standard (without option) A57L-0001-0037 12,000min
-1
Rectangle 30×50
Magnet type N, NIP A57L-0001-0037#N, #NIP 12,000min
-1
Rectangle 30×50
Magnet type P, PIP A57L-0001-0037#P, #PIP 12,000min
-1
Rectangle 10×50
Magnet type Q, QIP A57L-0001-0037#Q, #QIP 20,000min
-1
Internal diamenter ∅40
Magnet type R, RIP A57L-0001-0037#R, #RIP 20,000min
-1
Internal diamenter ∅50
Magnet type S, SIP A57L-0001-0037#S, #SIP 15,000min
-1
Internal diamenter ∅60
Magnet type T, TIP A57L-0001-0037#T, #TIP 15,000min
-1
Internal diamenter ∅70
Magnet type U, UIP A57L-0001-0037#U, #UIP 20,000min
-1
Rectangle 36×50
Magnet type U1, U1IP A57L-0001-0037#U1, #U1IP 15,000min
-1
Internal diamenter ∅80
Magnet type U2, U2IP A57L-0001-0037#U2, #U2IP 15,000min
-1
Internal diamenter ∅90

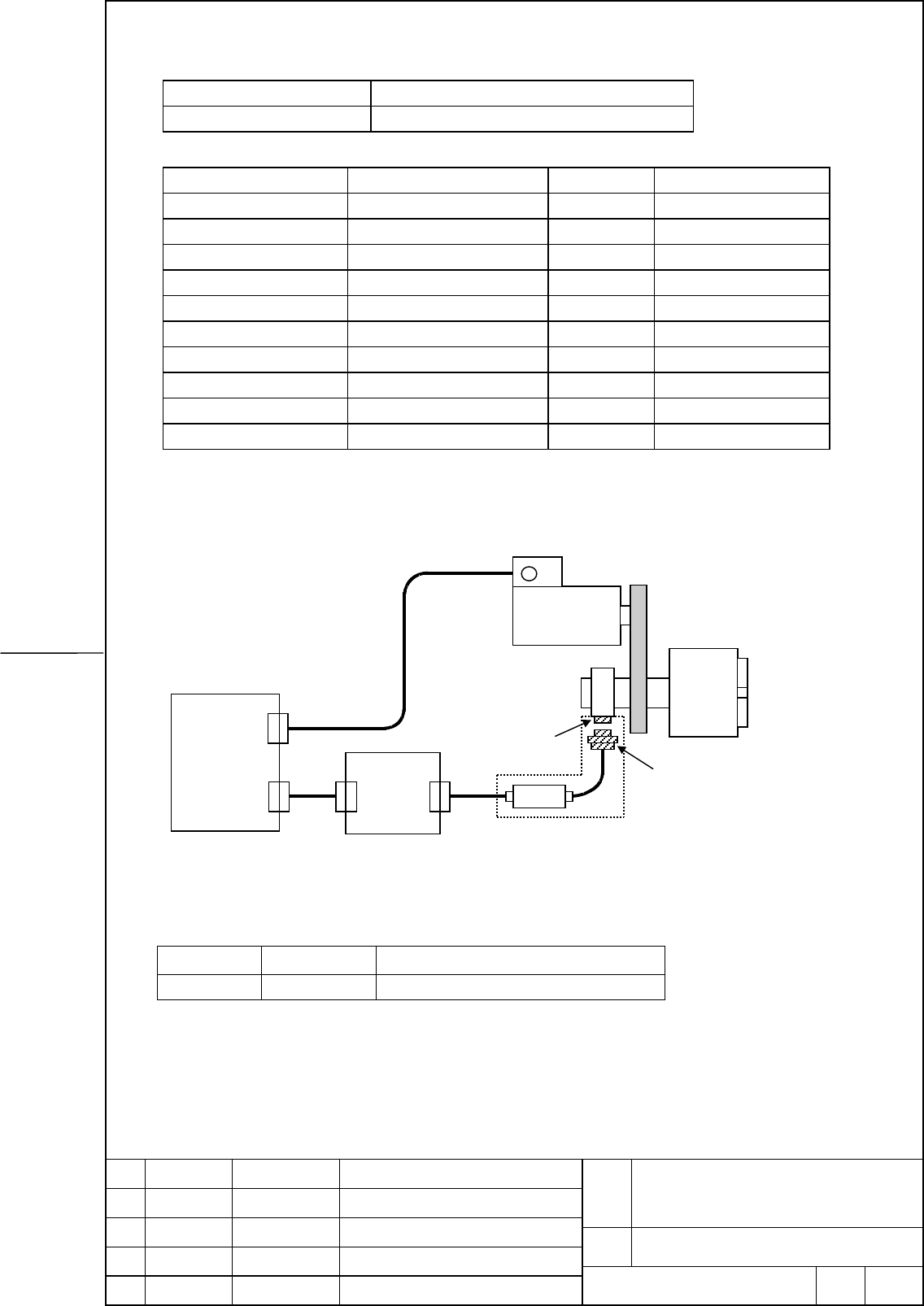

3.1.2. Example of configuration
Spindle orientation with magnetic sensor is applicable in the system below.
JY3JYA4
Magnetic
Sensor signal
Conversion
Adapter
Magnetic senso
r
Head of senso
r
magnet
(direct coupling)
Amp.
SPM
TYPE B
JYA2
JYA4
S
p
indle
Mi(or MZi) sensor type
Spindle motor
3.2. Spindle software
Spindle Software for αi series SPM
Series Version note
9D50 series F(06) and later
4. Magnetic Sensor Signal Conversion Adapter
4.1. Notice
•It is necessary to combine this adapter with SPM TYPE B.
•Cable between SPM and this adapter should be prepared by MTB.
TITLE
DRAW.
No.
4 / 18
Page
FANUC LTD
DESCRIPTION DESIGN DATE
EDIT
αi series Spindle Amplifier Module
Magnetic Sensor Method
Orientation Descriptions
B-65282EN/05-01
