Servo Amplifier Alpha i Series Descriptions Page 445

Descriptions
TITLE
DRAW
.
No.
11/11
Page
FANUC LTD
DESCRIPTION DESIGN DATE
EDIT
The recommendation example of
the cabinet for servo amplifier
B-65282EN
／
05-10
New
K.Yamamoto 05.10.24
01
(3) Installation into cabinet of a dehumidification agent
Installing a dehumidification sheet in the cabinet can prevent the fall of the
reliability of servo amplifier.
(4) The installation method of servo amplifier
Servo amplifiers should be arranged horizontally. However, when you arrange
vertically unavoidably, be careful of the followings. (Fig. 15)
※1: Keep the cooling wind of lower amplifier from blowing to upper amplifier
directly. Heat dissipation performance may decrease and required
efficiency cannot be achieved.
※2: Don't block the flow of the cooling wind of lower amplifier.
The partition board
The flow of a wind
Servo amplifier
The interval between
amplifier and a partition
board should be 50mm or
more.

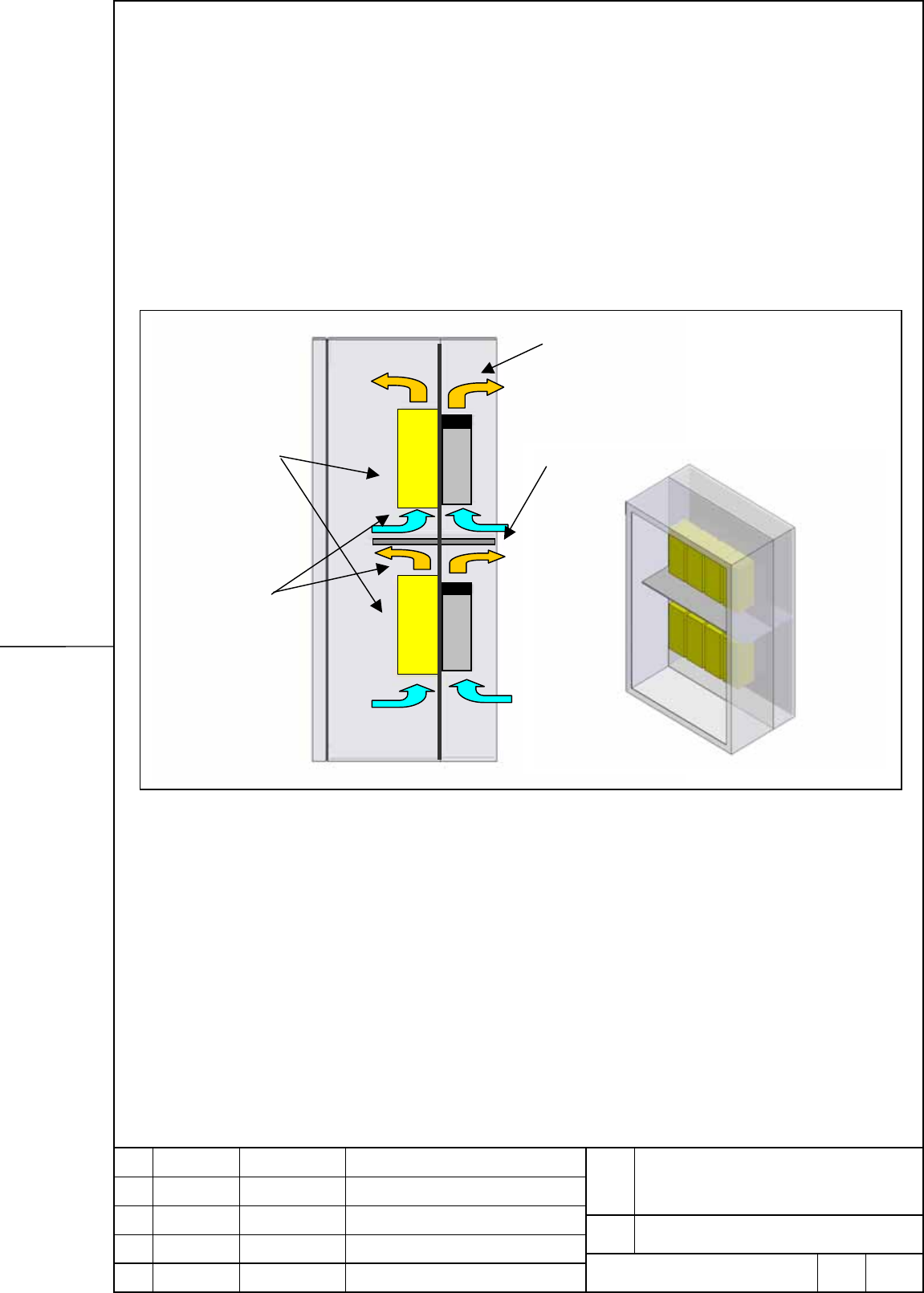

Fig. 15. The example in the case of installing amplifier vertically
