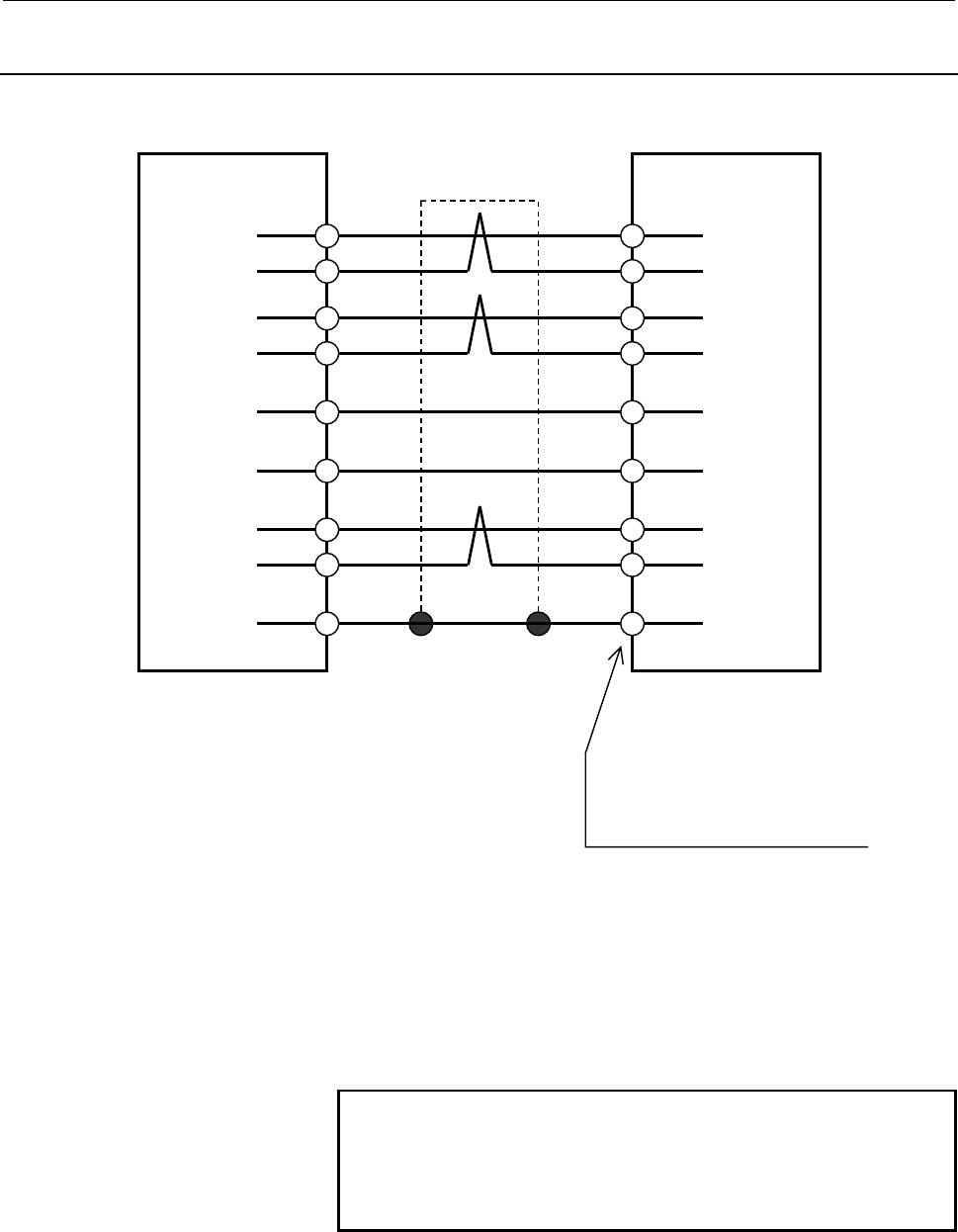

9.3.3.7 Details of cable K14

For the motor with Mi sensor

SPM JYA2

(5) (A2)MA PA

Mi sensor

Motor

(7)

(A3)MB PB

(20)

5V 5V (A1)

(8)

(B3)*MB RB

(6) (B2)*MA RA

Housing : 178289-6

Contact : 1-175217-2

(16) 0V 0V (B5)

(13)

(A6)THR1 THR1

(15)

(B6)THR2 THR2

(10) (A5)SS SS

Manufactured by Tyco Electronics AMP

0.5mm

Shield

20-pin half-pitch connector

Cable specification :

6 common shielded cable

(Three 0.18mm

twisted pairs + 0.5mm

wires)

Recommended cable conductor : A66L-0001-0368

See Section 9.4.1 for explanations about the JYA2-side connector that

matches the recommended cable. See Appendix B, "About Cable

Conductors," for detailed explanations about the cable.

NOTE

If only one 5 V line and only one 0 V line are used,

use pins 20 and 16 for them, so that, if the

connector is attached the wrong way, the sensor

can be prevented from being damaged.
