Servo Amplifier Alpha i Series Descriptions Page 246

Descriptions
9.CONNECTION B-65282EN/05
- 224 -

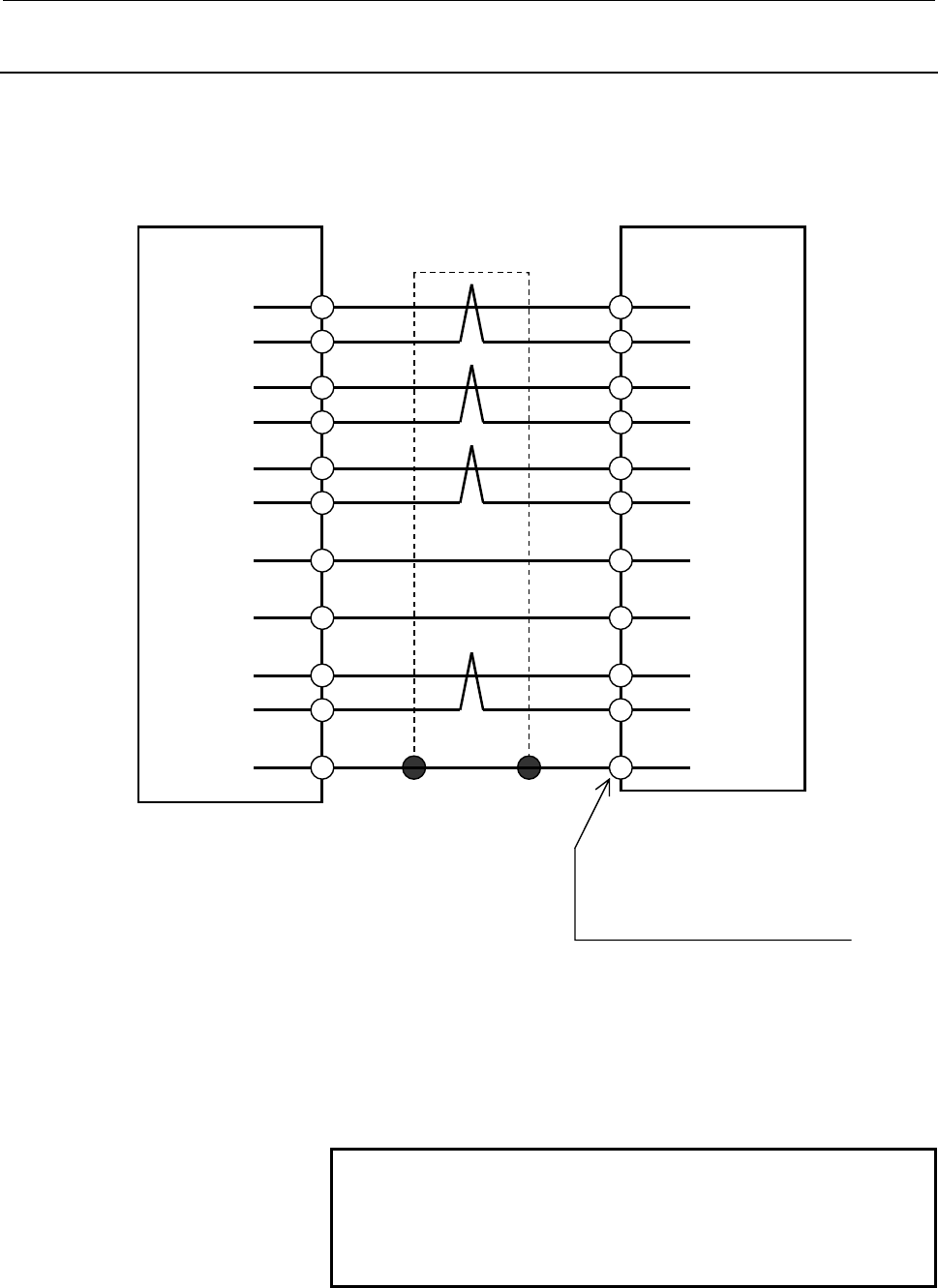

9.3.3.9 Details of cable K17
It is unnecessary to wire THR1 and THR2 if the BZi sensor is used as
a separate detector (connected to the connector JYA4).
For the motor with MZi sensor
SPM JYA2
(5) (A2)MA VA
MZi sensor
Motor
(7)
(A3)MB VB
(9),(18),(20)
5V 5V (A1)
(8)
(B3)*MB *VB
(6) (B2)*MA *VA
Housing : 178289-6
Contact : 1-175217-2
(12),(14),(16) 0V 0V (B5)
(13)
(A6)THR1 THR1
(15)
(B6)THR2 THR2
(10) (A5)SS SS
Manufactured by tyco Electronics AMP
0.5mm
2
0.5mm
2
Shield
(1)
(A4)MZ VZ
(2)
(B4)*MZ *VZ
20-pin half-pitch connector
Cable specification :
6 common shielded cable
(Four 0.18mm
2
twisted pairs + 0.5mm
2
wires)
Recommended cable conductor : A66L-0001-0368
See Section 9.4.1 for explanations about the JYA2-side connector that
matches the recommended cable. See Appendix B, "About Cable
Conductors," for detailed explanations about the cable.
NOTE
If only one 5 V line and only one 0 V line are used,
use pins 20 and 16 for them, so that, if the
connector is attached the wrong way, the sensor
can be prevented from being damaged.
