Servo Amplifier Alpha i Series Descriptions Page 336

Descriptions
B.CABLES APPENDIX B-65282EN/05
- 314 -
B.6 10-PAIR CABLE
Specifications
Item Unit Specifications
Product No. A66L-0001-0367(FNC-019)
Manufacturer Shinko Electric Industries Co., Ltd.
Rating 80°C, 60V
Conductor Stranded wire of tinned annealed copper (JIS C 3152)
Insulator Heat-resistant polivinyl chioride
Shield braid Tinned annealed copper wire
Material
Sheath
Heat-resistant, oil-resistance, flame-retardent polivinyl
chioride (S-3)
Number of pairs Pairs 20 (10-pair)
Nominal cross-sectional area mm
2
0.18
Structure
Conductors
/mm
7/0.18
Conductor
Outside diameter (approx.) mm 0.54
Thickness mm 0.25 (Average thickness : 90% or more)
Insulator
Outside diameter (approx.) mm 1.04
Twisted pair Outside diameter (approx.) mm 2.08 (pitch : 25 mm or less)
Lay Diameter (approx.) mm 6.5
Tape-wound
wire
Diameter (approx.) mm 6.6
Shield Element wire diameter mm 0.12 (Braid density : 70% or more)
Color Black
Thickness mm 1.0 (Average thickness : 90% or more)Sheath
Outside diameter mm 9.2 ± 0.3
Electric resistance Ω/km 110 or less (20°C JIS C 3005 6)
Dielectricstrength V/min AC500(JIS C 3005 8 (2))
Electrical
performance
Insulation resistance MΩ-km 15 or more (20°C JIS C 3005 9.1)

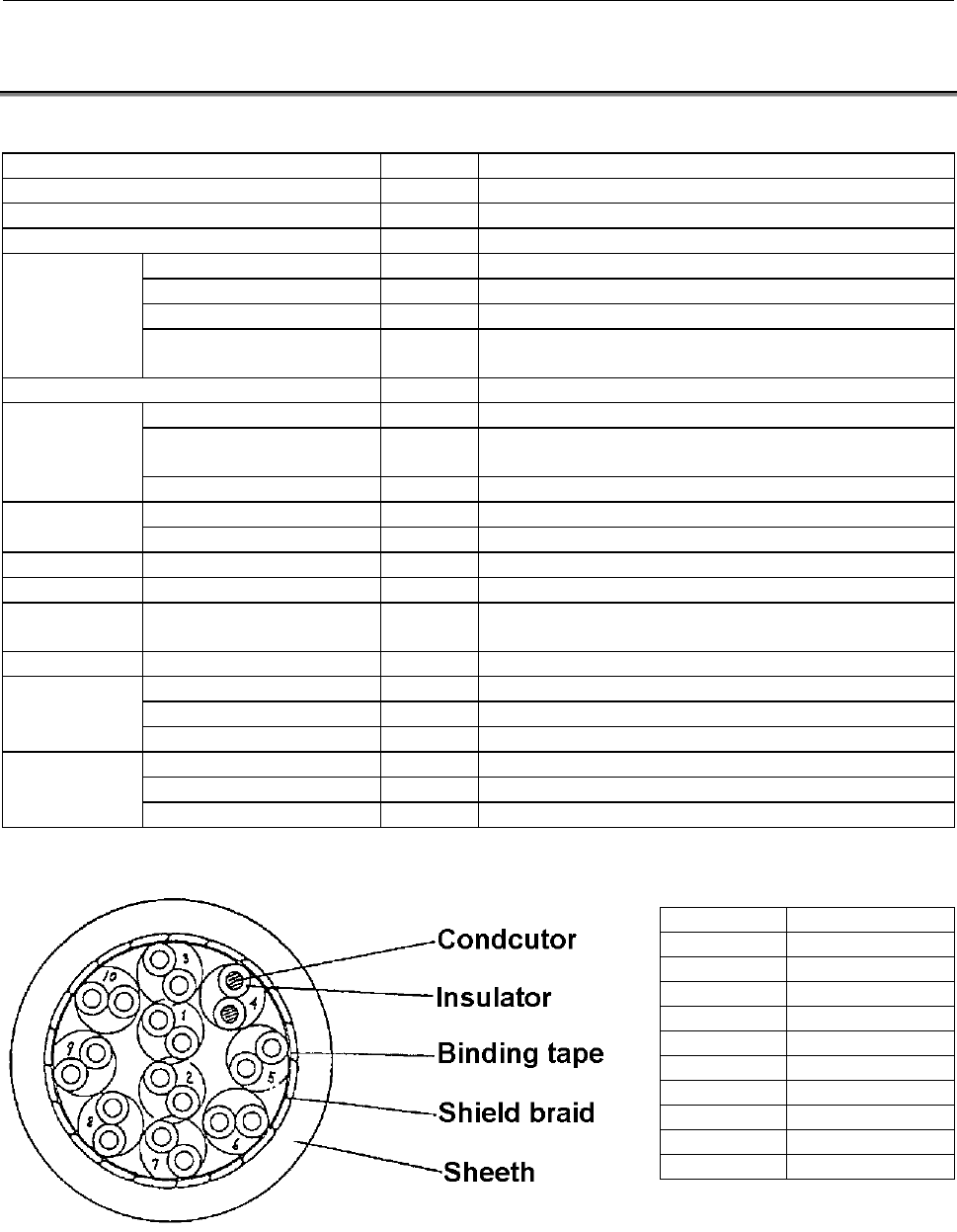

Cable structure
Pair number Dot mark color
1 Black/Orange
2 Black/Gray
3 White/Yellow
4 White/Green
5 White/Brown
6 White/Orange
7 White/Gray
8 Black/Yellow
9 Black/Green
10 Black/Brown
