bsolute αiCZ Sensor

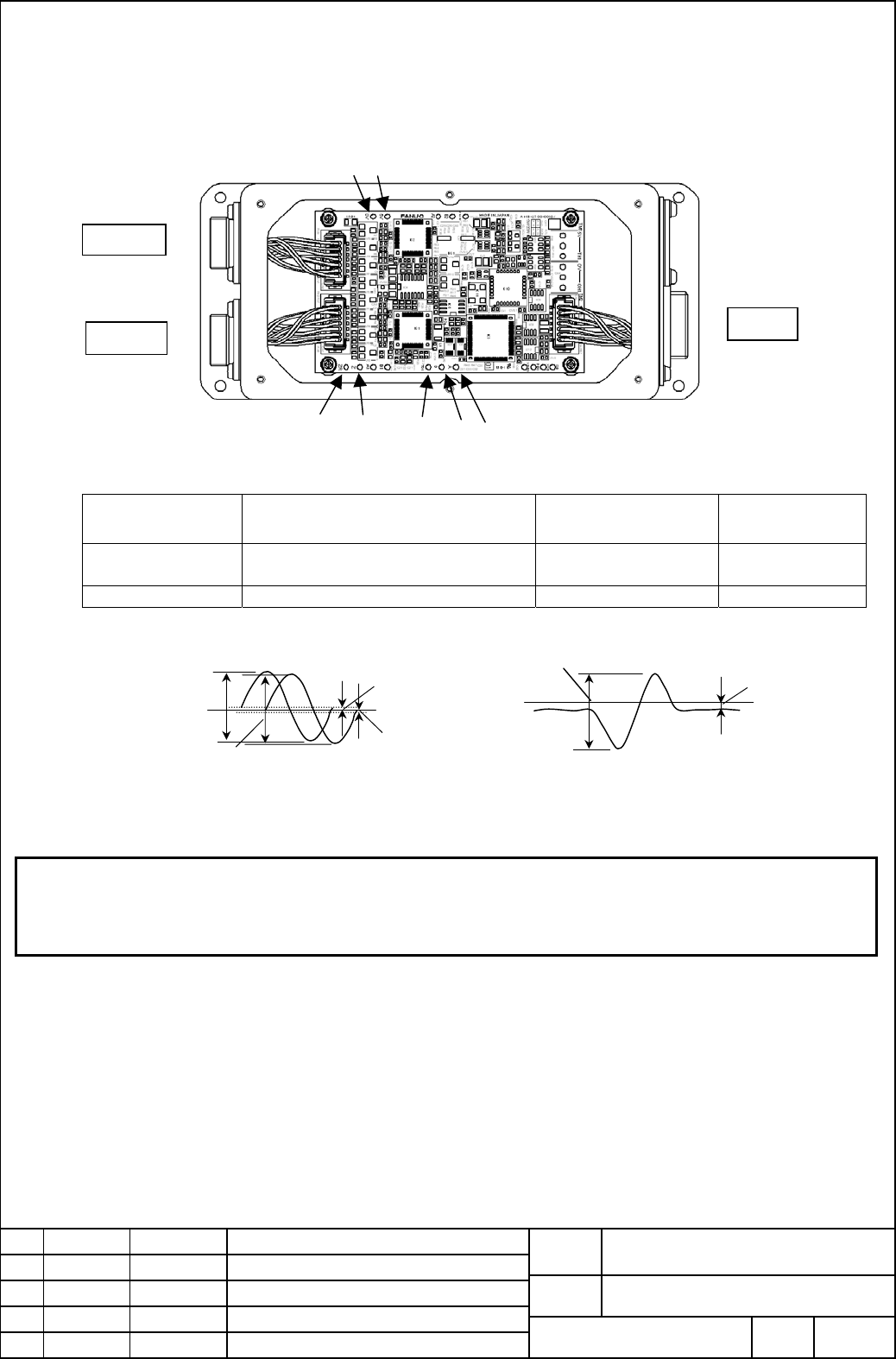

5.3 In case of checking the output amplitude
The method to check the output amplitude is described below. It is not necessary to adjust the output signal.
・Supply the power by connecting 5V and 0V check-pin to the power source.
・Lissajous’ waveform of A /B phase signal is close to a true circle
Table (4) Output specification of the A/B phase signal and Z phase signal (at room temperature, 500min
-1
)
Signal Check terminal
(on the curcuit boad of detection circuit)
Output amplitude Offset
A phase signal
B phase signal
A(Based on T01)
B(Based on T01)
3200+/-300mVp-p +/-50mV
Z phase signal Z(Based on RZ) 660-1650mVp-p 100-250mV
NOTE
・The sensor, the detection circuit, and the detection ring are adjusted by the set. So use them by the set and do not touch
the variable resistance in a detection circuit.
・The connector in the sensor head side has the marking of "CN1”(black) and “CN2”(Blue)”on it. Check these marks on the
connector in connecting them to the detection circuit.
CN1
CN2
To the sensor head
CN3
To SVM
RZ
Z
Z output amplitude
Z offset
A
output amplitude
T01
A
B
B output amplitude
A
offset
B offset
Please refer to the section 9 about the pin assignment.
T01
A
B
Z
0V
5V
RZ
