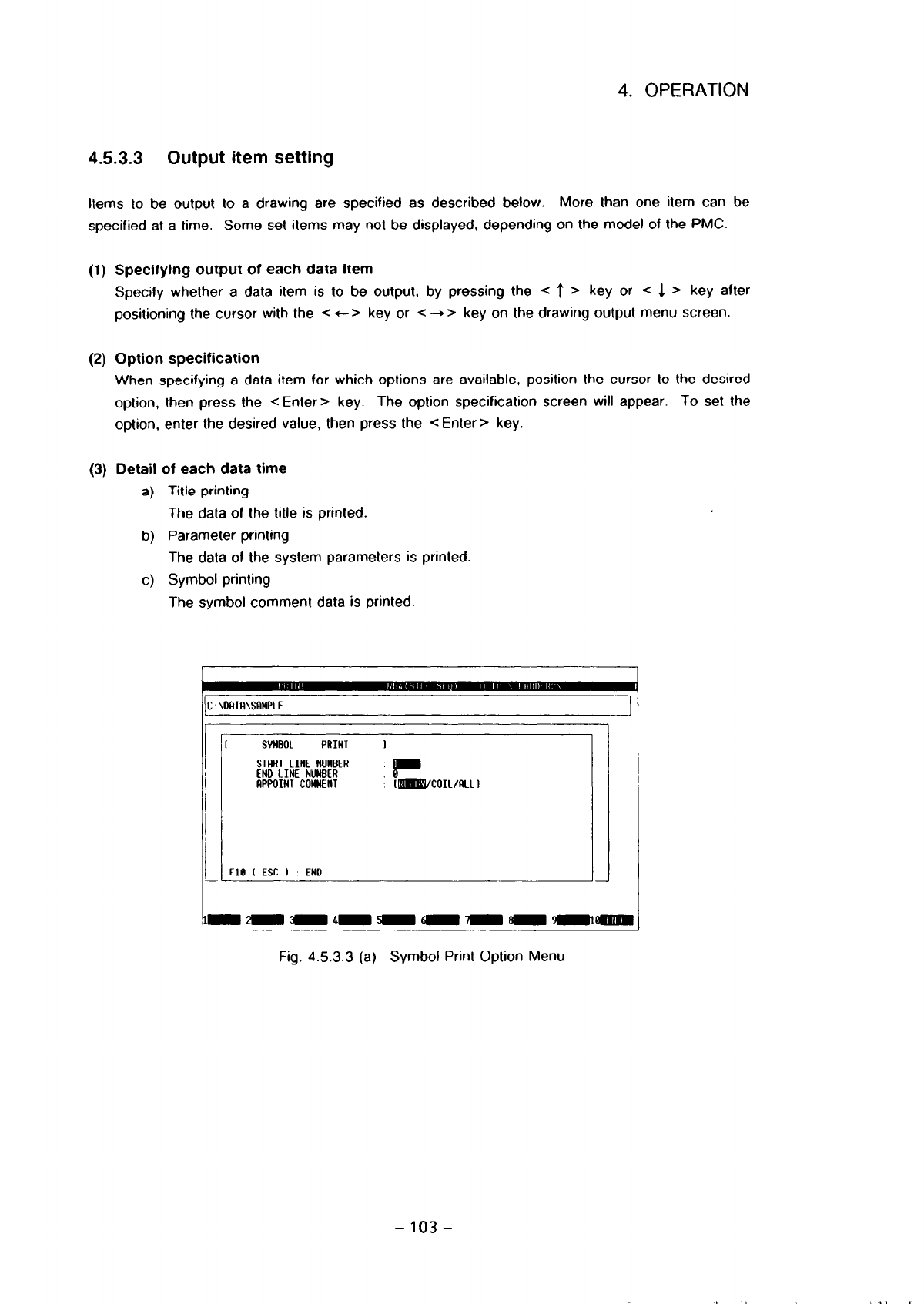

4. OPERATION

453.3 Output item setting

Items to be output to a drawing are specified as described below. More than one item can be

specified at a time. Some set items may not be displayed, depending on the model of the PMC.

(1) Specifying output of each data item

Specify whether a data item is to be output, by pressing the < 7 > key or < 1 > key after

positioning the cursor with the < c > key or c + > key on the drawing output menu screen.

(2) Option specification

When specifying a data item for which options are available, position the cursor to the desired

option, then press the < Enter :, key.

The option specification screen will appear. To set the

option, enter the desired value, then press the < Enter > key.

(3) Detail of each data time

a) Title printing

The data of the title is printed.

b) Parameter printing

The data of the system parameters is printed.

c) Symbol printing

The symbol comment data is printed.

:\DRTF!\SflWPLE

I SYMBOL PRINT

STRRT LINE NUMBER

,rn

END LINE NUMBER

APPOINT COWHENT

r~coIL/RLLl

FlB ( ESC 1 END

Fig. 453.3 (a) Symbol Print Option Menu

- 103 -
