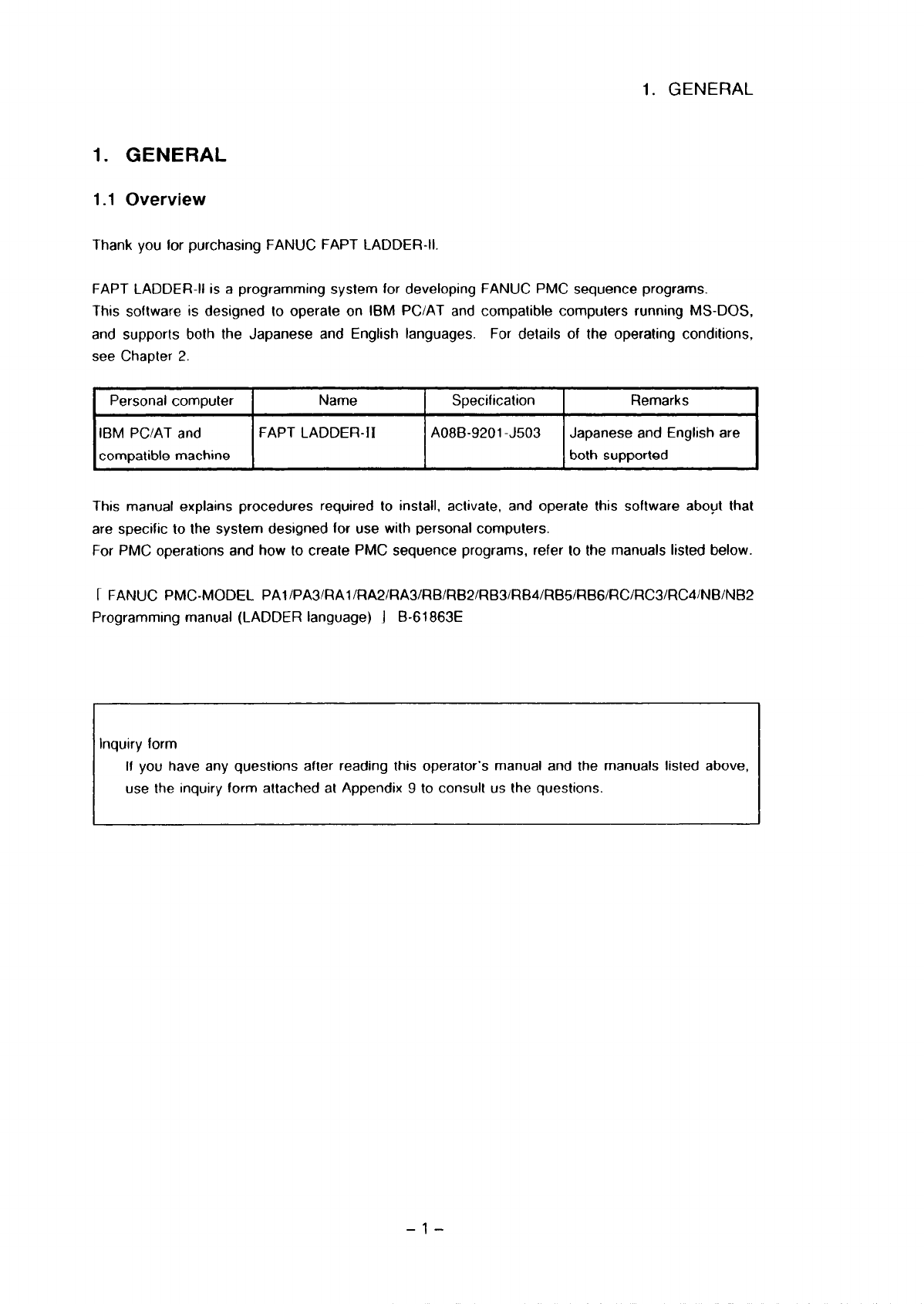

1. GENERAL

1.1 Overview

Thank you for purchasing FANUC FAPT LADDER-II.

FAPT LADDER-II is a programming system for developing FANUC PMC sequence programs.

This software is designed to operate on IBM PC/AT and compatible computers running MS-DOS,

and supports both the Japanese and English languages. For details of the operating conditions,

see Chapter 2.

Personal computer

Name Specification Remarks

IBM PC/AT and

FAPT LADDER-II A08B-9201 -J503 Japanese and English are

compatible machine

both supported

This manual explains procedures required to install, activate, and operate this software about that

are specific to the system designed for use with personal computers.

For PMC operations and how to create PMC sequence programs, refer to the manuals listed below.

T FANUC PMC-MODEL PAl/PAB/RAl/RA2/RA3/RB/RB2/RB3/RB4/RBS/RBG/RC/RC3/RC4/NB/NB2

Programming manual (LADDER language) J B-61 863E

Inquiry form

If you have any questions after reading this operator’s manual and the manuals listed above,

use the inquiry form attached at Appendix 9 to consult us the questions.

-l-
