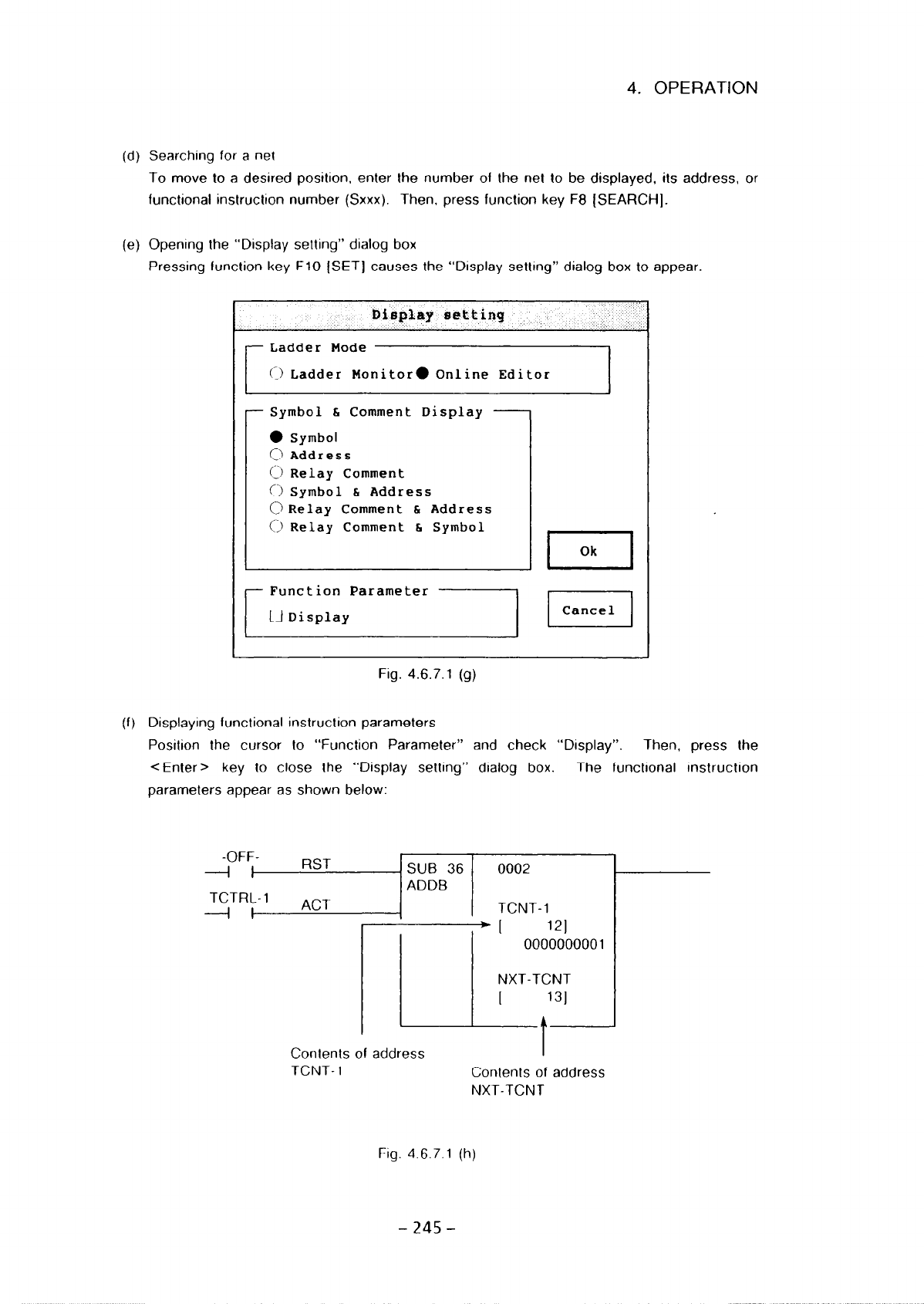

4. OPERATION

Searching for a net

To move to a desired position, enter the number of the net to be displayed, its address, or

functional instruction number (Sxxx). Then, press function key F8 [SEARCH].

(e)

Openrng the “Display setting” dialog box

Pressing function key FlO [SET] causes the “Display settrng” dialog box to appear.

biepfay setting

- Ladder Mode

(1) Ladder Monitor. Online Editor

-Symbol 6 Comment Display -

. Symbol

0 Address

0 Relay Comment

c> Symbol b Address

@Relay Comment & Address

cj Relay Comment 6 Symbol

- Function Parameter

0 Display

(f)

Displaying functional instruction parameters

Position the cursor to “Function Parameter” and check “Display”.

Then, press the

<Enter> key to close the “Display setting” dialog box.

The functional instruction

parameters appear as shown below:

Fig. 4.6.7.1 (g)

-OFF-

+ I

RST

SUB 36 0002

ADDB

TCTRL- 1

---i t

ACT

TCNT-1

0000000001

121

NXT-TCNT

I 131

Conlents of address

TCNT-1

Contents of address

NXT-TCNT

Fig. 4.6.7.1 (h)

- 245 -
