5.3.9.4 Margin

Set margin at the top, bottom, right and left in the print page.

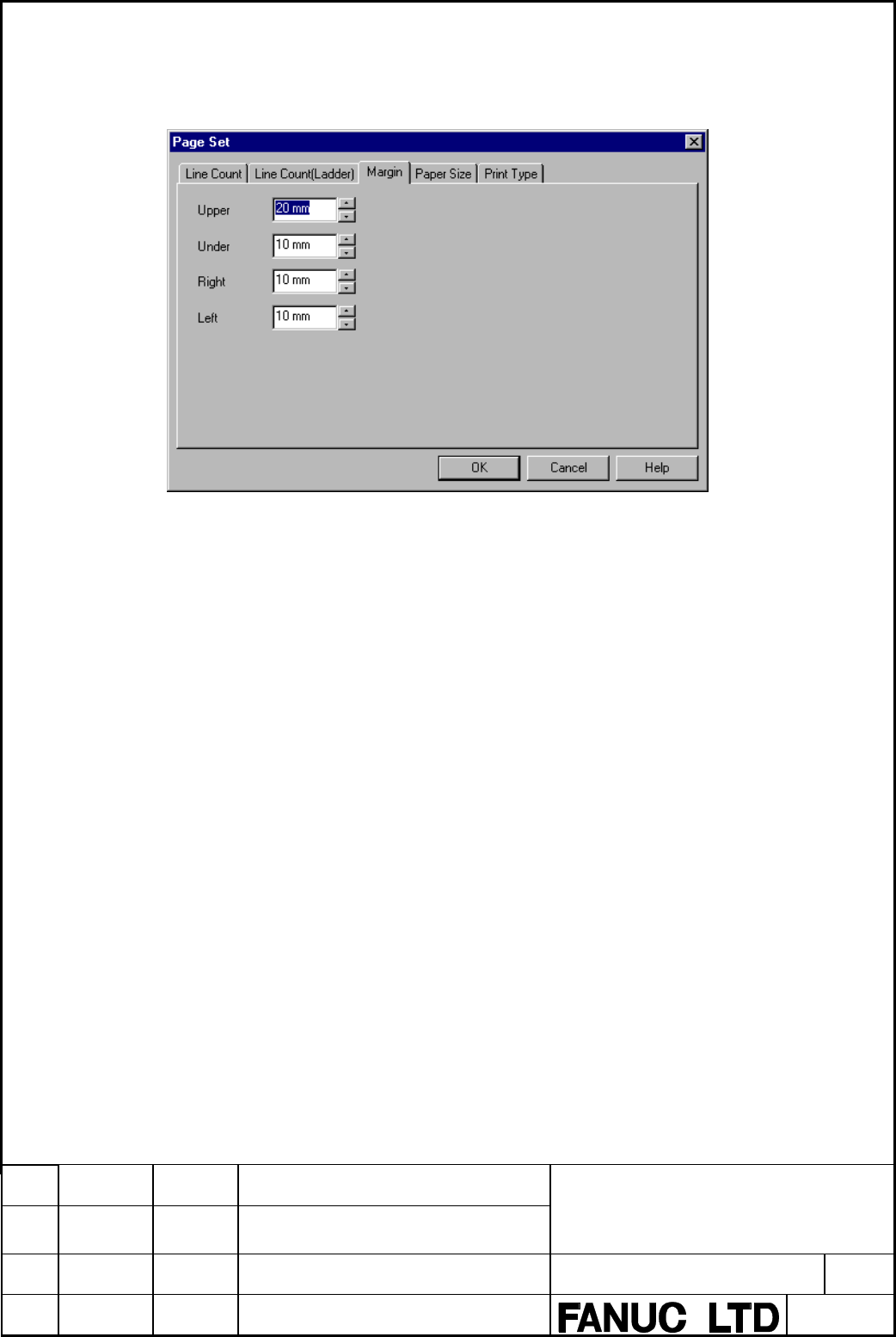

Fig. 5.3.9.4 Margin set screen

Details of each item are as follows.

[Upper] Set an upper margin. The unit is a millimeter (mm).

In default, “20” is set.

[Under] Set an under margin. The unit is a millimeter (mm).

In default, “10” is set.

[Right] Set a right margin. The unit is a millimeter (mm).

In default, “10” is set.

[Left] Set a left margin. The unit is a millimeter (mm).

In default, “10” is set.

[OK] Button Save the print setting and end the print setting dialog.

[Cancel] Button Discontinue the print setting and end the print setting

dialog.

[Help] Button Display the help of Margin.
