FAPT Ladder-II Operators manual Page 166

Operators manual
4. OPERATION

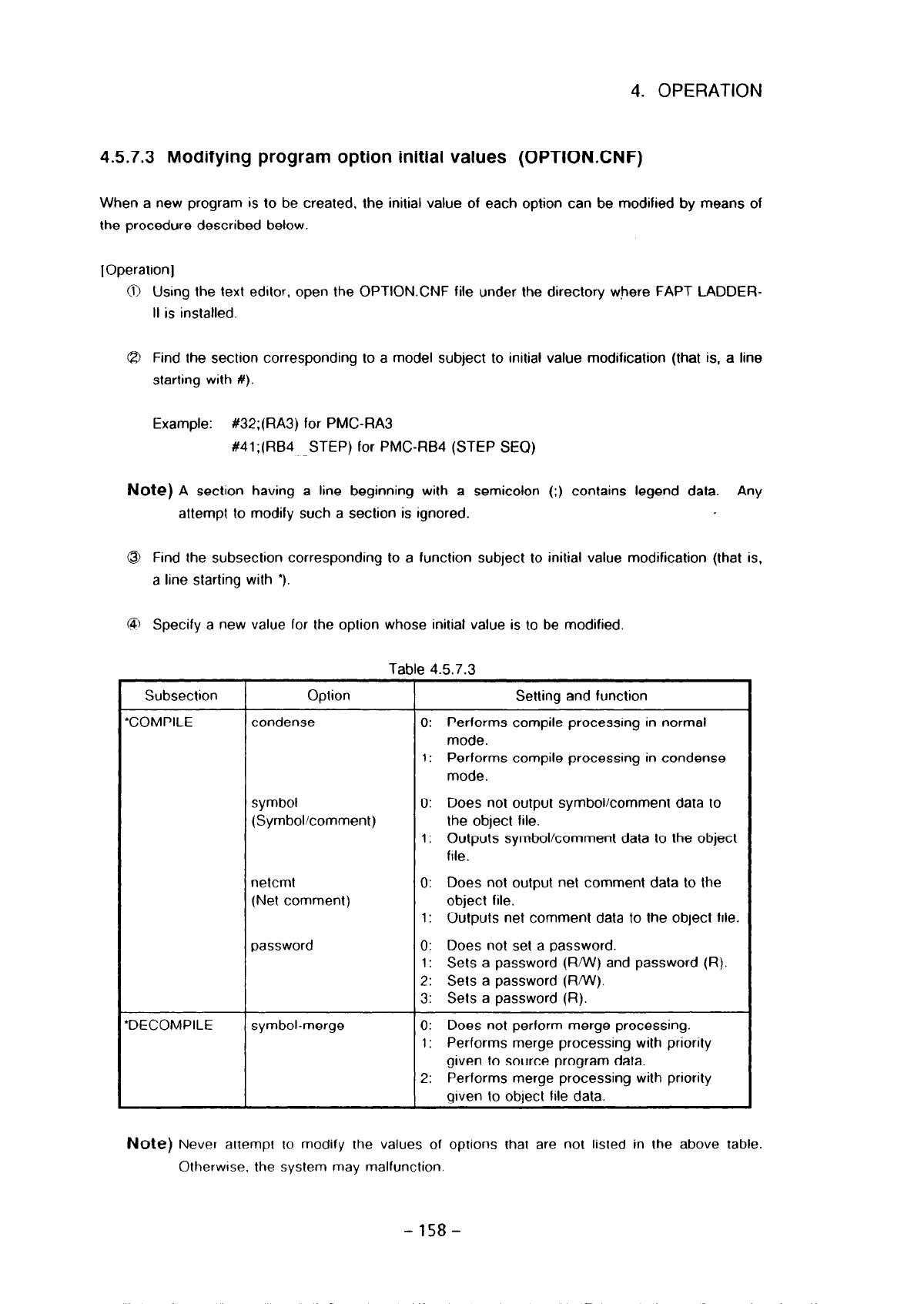

4.5.7.3 Modifying program option initial values (OPTION.CNF)
When a new program is to be created, the initial value of each option can be modified by means of
the procedure described below.
[Operation]
Using the text editor, open the OPTION.CNF file under the
II is installed.
Find the section corresponding to a model subject to initial
starting with #).
Example: #32;(RA3) for PMC-RA3
#4l;(Rl34_STEP) for PMC-RB4 (STEP SEQ)
Note) A section having a line beginning with a semicolon
attempt to modify such a section is ignored.
0 Find the subsection corresponding to a function subject to
initial value modification (that is,
directory where FAPT LADDER-
value modification (that is. a line
(:) contains legend data. Any
a line starting with ‘).
0 Specify a new value for the option whose initial value is to be modified.
Table 4.5.7.3
Subsection
Option
‘COMPILE
condense
Setting and function
0: Performs compile processing in normal
mode.
1: Performs compile processing in condense
mode.
symbol
(Symbol/comment)
0: Does not output symbol/comment data to
the object file.
1: Outputs symbol/comment data to the object
file.
netcmt
(Net comment)
password
0: Does not output net comment data to the
object file.
1: Outputs net comment data to the object file.
0: Does not set a password.
1: Sets a password (R/W) and password (R).
2: Sets a password (RMT).
3: Sets a password (R).
DECOMPILE symbol-merge
0: Does not perform merge processing.
1: Performs merge processing with priority
given to source program data.
2: Performs merge processing with priority
given to object file data.
Note) Never attempt to modify the values of options that are not listed in the above table.
Otherwise, the system may malfunction.
-158-
