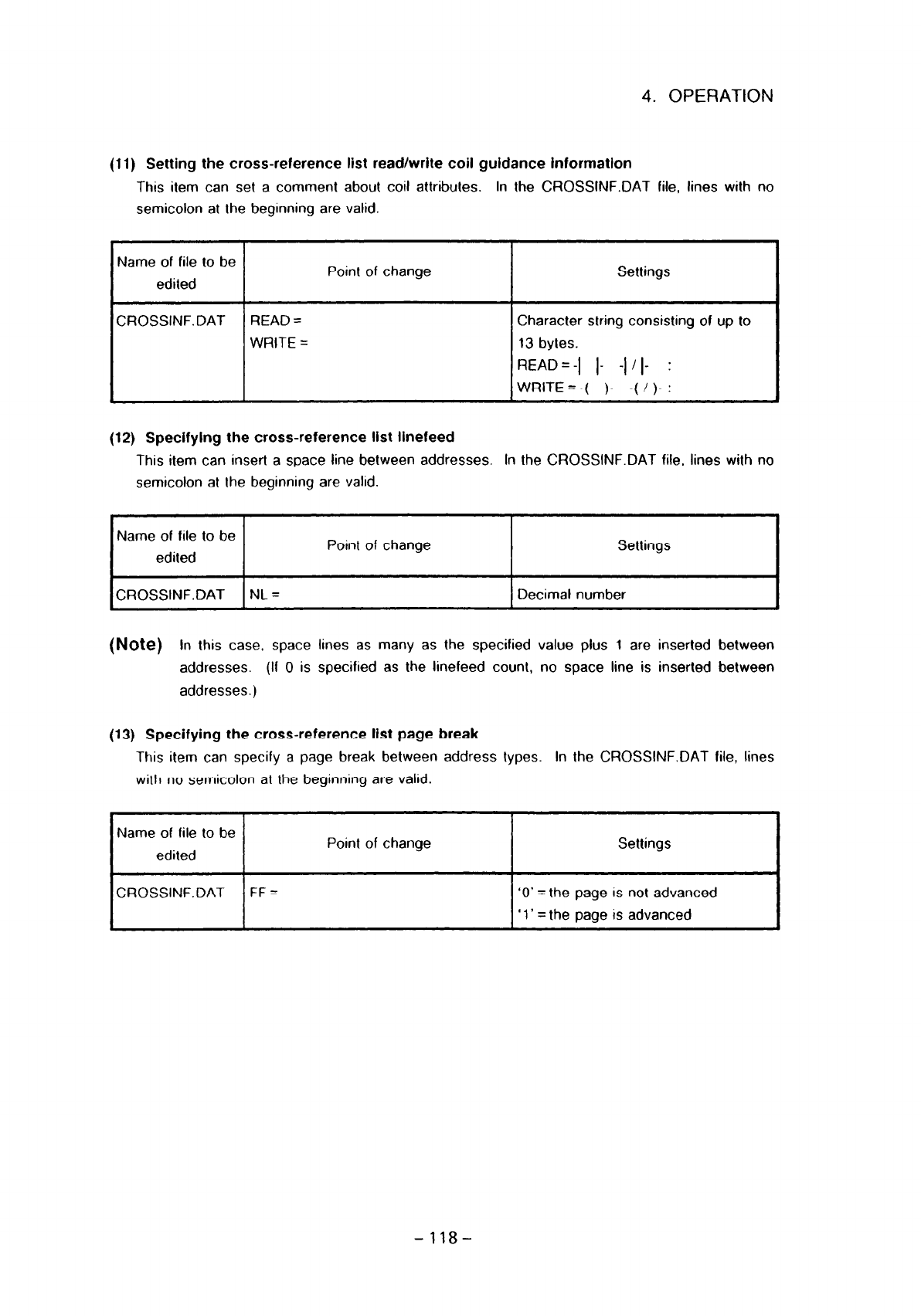

4. OPERATION
(11) Setting the cross-reference list read/write coil guidance informatlon
This item can set a comment about coil attributes. In the CROSSINF.DAT file, lines with no
semicolon at the beginning are valid.
Name of file to be
edited
Point of change
Settings
CROSSINF.DAT
READ = Character string consisting of up to
WRITE = 13 bytes.
READ = -1 I- -1 ! I- :
WRITE = -( )- -( / )- :
(12) Specifying the cross-reference list linefeed
This item can insert a space line between addresses. In the CROSSINF.DAT file, lines with no
semicolon at the beginning are valid.
Name of file to be
edited
Point of change
Settings
CROSSINF.DAT
NL= Decimal number
(Note) In this case, space lines as many as the specified value plus 1 are inserted between
addresses. (If 0 is specified as the linefeed count, no space line is inserted between
addresses.)
(13) Specifying the cross-reference list page break
This item can specify a page break between address types. In the CROSSINF.DAT file, lines
with no semicolon al the beginning are valid.
Name of file to be
edited
Point of change
Settings
CROSSINF.DAT
FF= ‘0’ = the page is not advanced
’ 1’ = the page is advanced
-118-
