FANUC OPEN CNC LADDER EDITING

PACKAGE SUPPLEMENTARY

OPERATOR’S MANUAL

01 98.11.13 Ino New making B-62884EN/01-4

EDIT DATE DESIG.

DESCRIPTION

67/67

TITLE

DRAW.NO.

SHEET

CUST.

5.3.11 Status Bar

The status bar is displayed at the bottom of the Ladder Printer Tool for PMC window.

To display or hide the status bar, use the Status Bar command in the “View” menu.

The left area of the status bar describes actions of menu items as you use the arrow keys

to navigate through menus. This area similarly shows messages that describe the actions

of toolbar buttons as you depress them, before releasing them. If after viewing the

description of the toolbar button command you wish not to execute the command,

then release the mouse button while the pointer is off the toolbar button.

The center area of the status bar displayed the program name and the PMC model

name. The right area of the status bar displayed the state of ON/OFF of a special

key.

Pane1 Simple help

Pane2 Program name

Pane3 PMC model

Pane4 State of key : Latched down is displayed

[Scroll Lock] Key, [NUM Lock] Key, and [Caps Lock] Key from the

right

Simple help Program name PMC model State of key

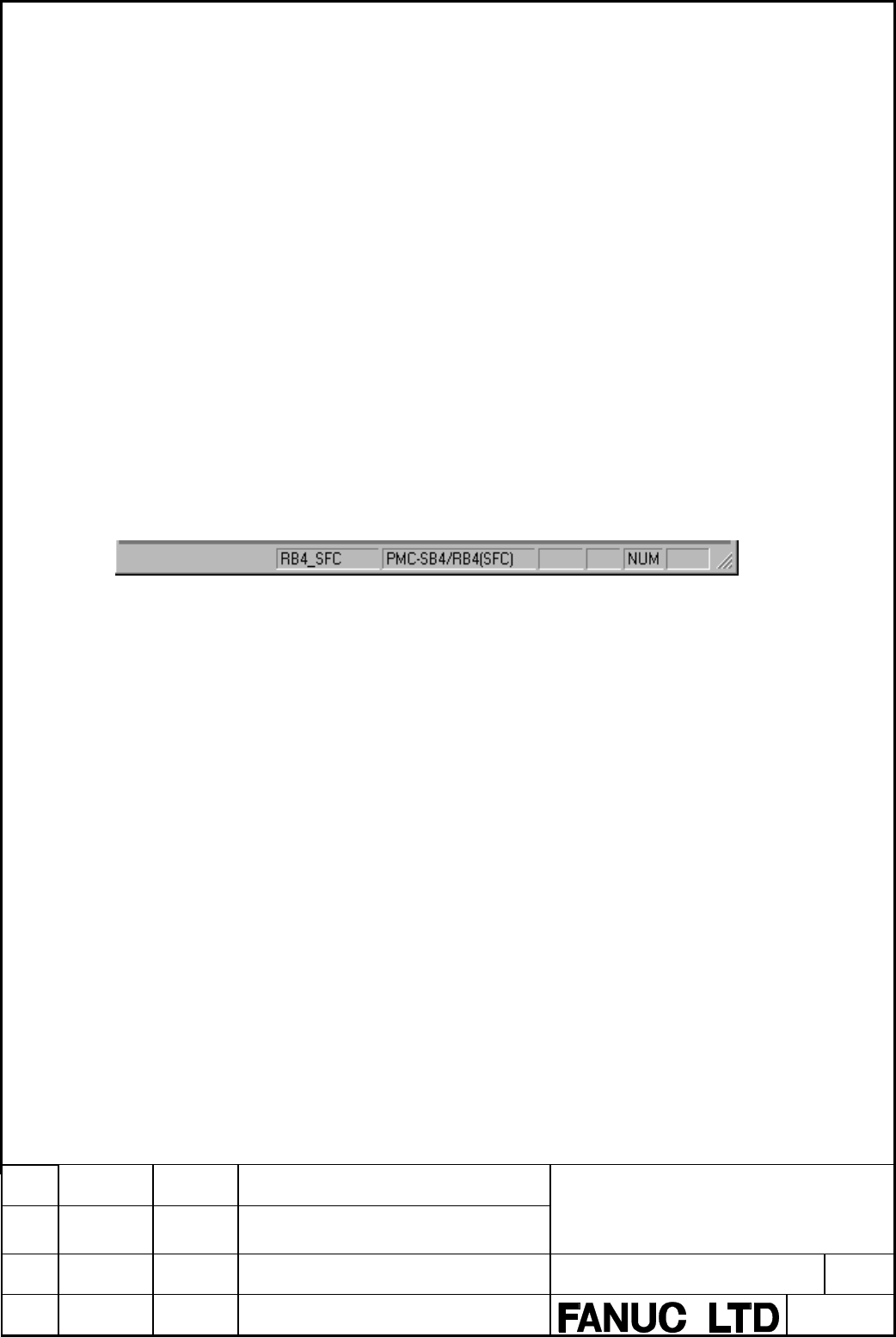

Fig. 5.3.11 Status Bar
