FAPT Ladder-II Operators manual Page 33

Operators manual

Page of 456

/ 456

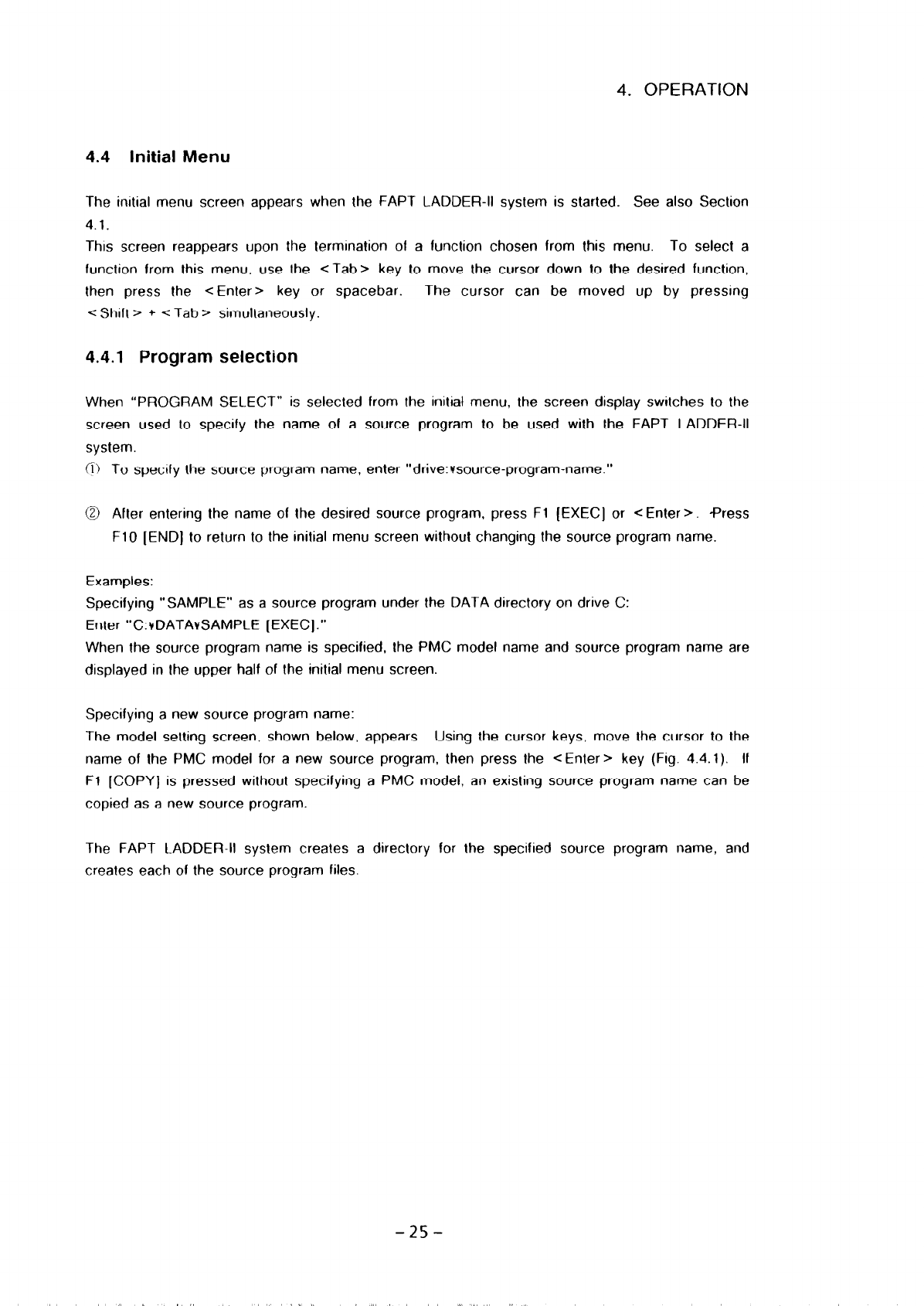

4. OPERATION

4.4 Initial Menu

The inttial menu screen appears when the FAPT LADDER-II system is started. See also Section

4.1.

This screen reappears upon the termmation of a function chosen from this menu. To select a

function from this menu, use the <Tab> key to move the cursor down to the desired function,

then press the <Enter> key or spacebar. The cursor can be moved up by pressing

< Shaft > + < Tab > simultaneously.

4.4.1 Program selection

When “PROGRAM SELECT” is selected from the initial menu, the screen display switches to the

screen used to specify the name of a source program to be used with the FAPT LADDER-II

system.

fi) To spectfy the source program name, enter “drive:vsource-program-name.”

@ After entering the name of the desired source program, press Fl (EXEC] or <Enter>. Press

FlO [END] to return to the initial menu screen without changing the source program name.

Examples:

Specifying “SAMPLE” as a source program under the DATA directory on drive C:

Enter “CvDATAvSAMPLE [EXEC].”

When the source program name is specified, the PMC model name and source program name are

displayed in the upper half of the initial menu screen.

Specifying a new source program name:

The model setting screen, shown below, appears. Using the cursor keys, move the cursor to the

name of the PMC model for a new source program, then press the <Enter > key (Fig. 4.4.1). If

Fl [COPY] is pressed without specifying a PMC model, an existing source program name can be

copied as a new source program.

The FAPT LADDER-II system creates a directory for the specified source program name, and

creates each of the source program files.

-25-
