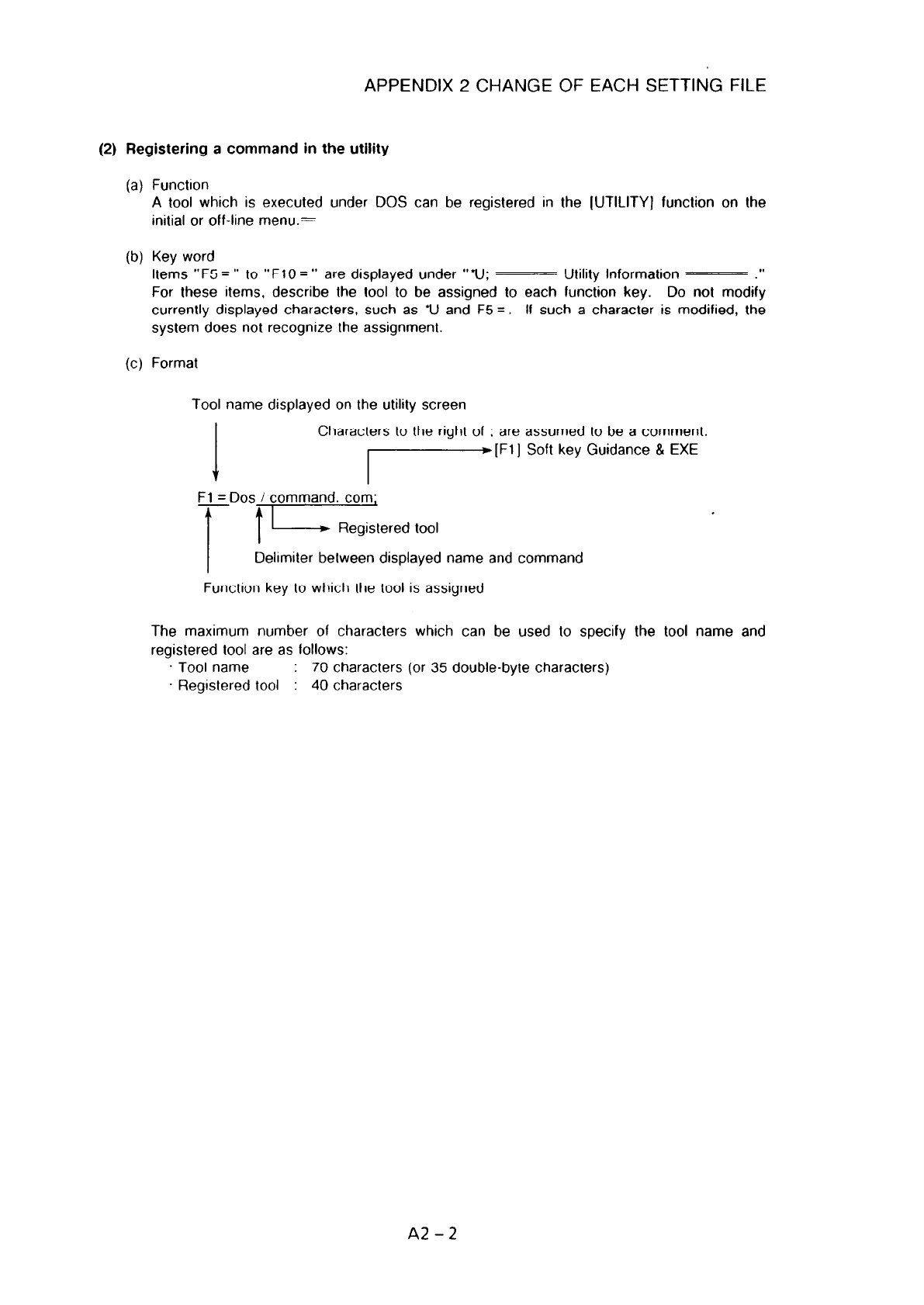

APPENDIX 2 CHANGE OF EACH SETTING FILE

(2) Registering a command in the utility

(a)

Function

A tool which is executed under DOS can be registered in the [UTILITY] function on the

initial or off-line menu.=

(b)

Key word

(c)

Items “F5 = ” to “FlO = ” are displayed under “IJ;

Utility Information

For these items, describe the tool to be assigned to each function key. Do not modify

currently displayed characters, such as V and F5 =.

If such a character is modified, the

system does not recognize the assignment.

Format

Tool name displayed on the utility screen

Characters to the right of : are assumed to be a comment.

w [Fl ] Soft key Guidance & EXE

Delimiter belween displayed name and command

Function key to which the tool is assigned

The maximum number of characters which can be used to specify the tool name and

registered tool are as follows:

. Tool name :

70 characters (or 35 double-byte characters)

. Registered tool : 40 characters

AZ-2
