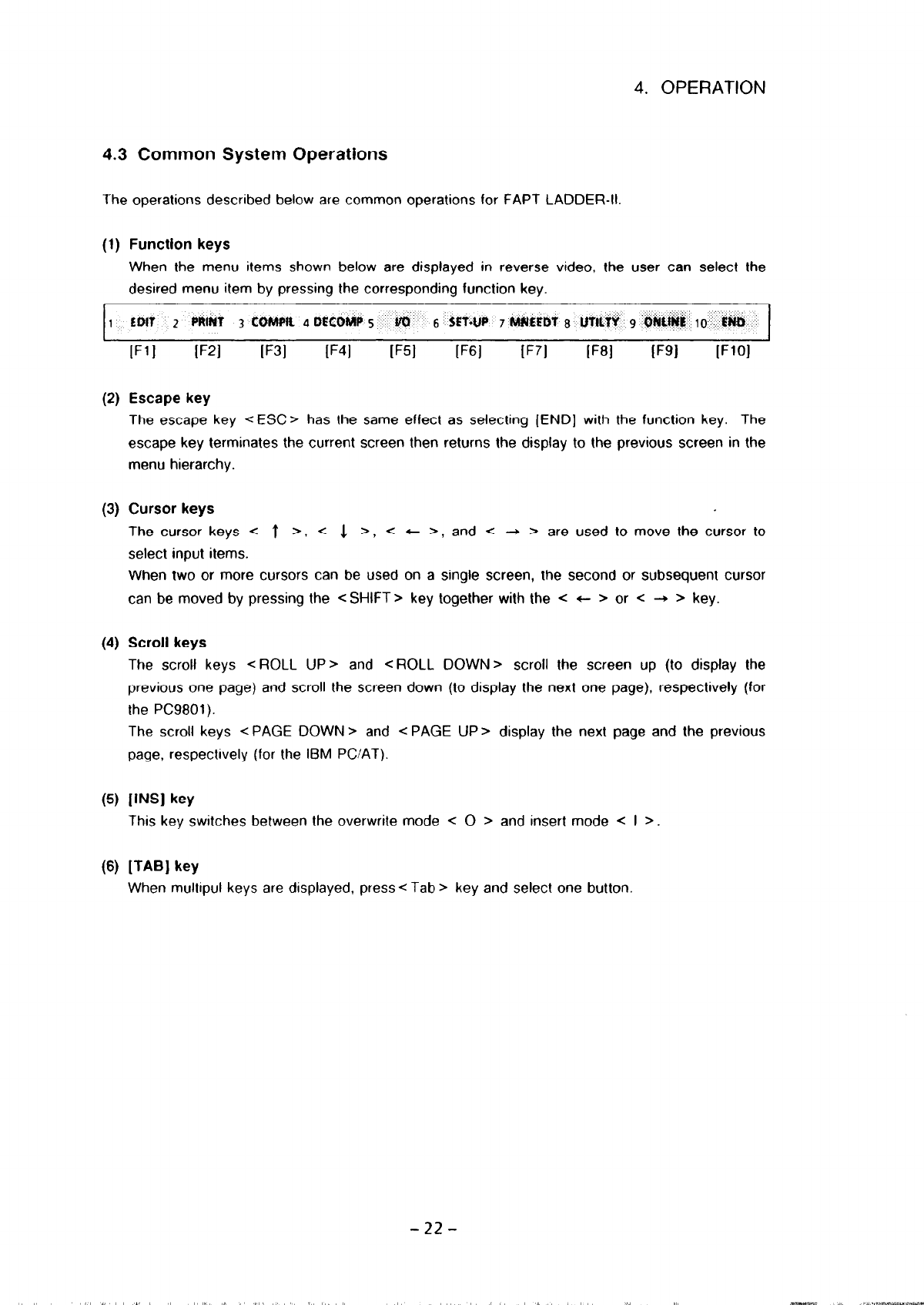

4. OPERATION

4.3 Common System Operations

The operations described below are common operations for FAPT LADDER-II.

(1) Function keys

When the menu items shown below are displayed in reverse video, the user can select the

desired menu item by pressing the corresponding function key.

(2)

IF11

Escape key

The escape key < ESC> has the same effect as selecting [END] with the function key. The

escape key terminates the current screen then returns the display to the previous screen in the

menu hierarchy.

(3)

Cursor keys

The cursor keys < t >, < 1 >,

< t >, and < * z are used to move the cursor to

select input items.

When two or more cursors can be used on a single screen, the second or subsequent cursor

can be moved by pressing the <SHIFT> key together with the < +- > or < + > key.

(4)

Scroll keys

The scroll keys <ROLL UP> and <ROLL DOWN > scroll the screen up (to display

previous one page) and scroll the screen down (to display the next one page), respectively

the PC9801).

The scroll keys <PAGE DOWN > and < PAGE UP > display the next page and the previous

page, respectively (for the IBM PC/AT).

(5)

[INS] key

This key switches between the overwrite mode < 0 > and insert mode < I >.

(6)

[TAB] key

IF31 IF41 WI WI if=71

IF81 WI IF101

the

(for

When multipul keys are displayed, press < Tab > key and select one button.

-22-
