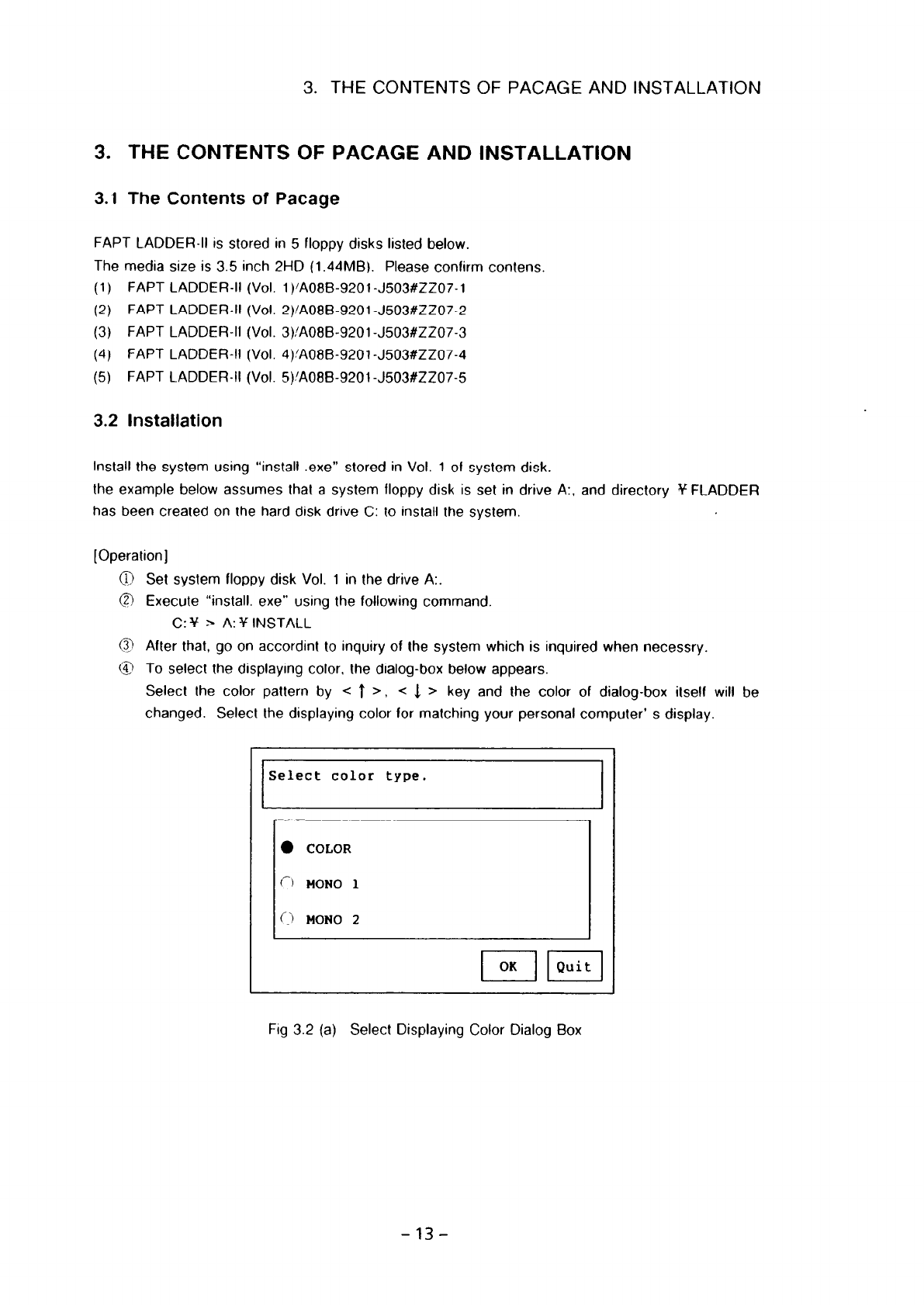

3. THE CONTENTS OF PACAGE AND INSTALLATION

3.1 The Contents of Pacage

FAPT LADDER-II is stored in 5 floppy disks listed below.

The media size is 3.5 inch 2HD (1.44MB). Please confirm contens.

(1) FAPT LADDER-II (Vol. 1 )‘A08B-9201 -J503#ZZO7-1

(2) FAPT LADDER-II (Vol. 2)!A08B-9201 -J503#2207-2

(3) FAPT LADDER-II (Vol. 3)!A08B-9201 -J503#2207-3

(4) FAPT LADDER-II (Vol. 4)!A08B-9201 -J503#ZZO7-4

(5) FAPT LADDER-II (Vol. 5)!A08B-9201 -J503#ZZO7-5

3.2 Installation

Install the system using “install .exe” stored in Vol. 1 of system disk.

the example below assumes that a system floppy disk is set in drive A:, and directory Y FLADDER

has been created on the hard disk drive C: to install the system.

[Operation]

Set system floppy disk Vol. 1 in the drive A:.

Execute “install. exe” using the following command.

C: ‘+ > A: Y INSTALL

After that, go on accordint to inquiry of the system which is inquired when necessry.

To select the displaying color. the dialog-box below appears.

Select the color pattern by < 7 >,

< 5_ 7 key and the color of dialog-box itself will be

changed. Select the displaying color for matching your personal computer’ s display.

Select color type.

. COLOR

0 MONO 1

Fig 3.2 (a) Select Displaying Color Dialog Box
