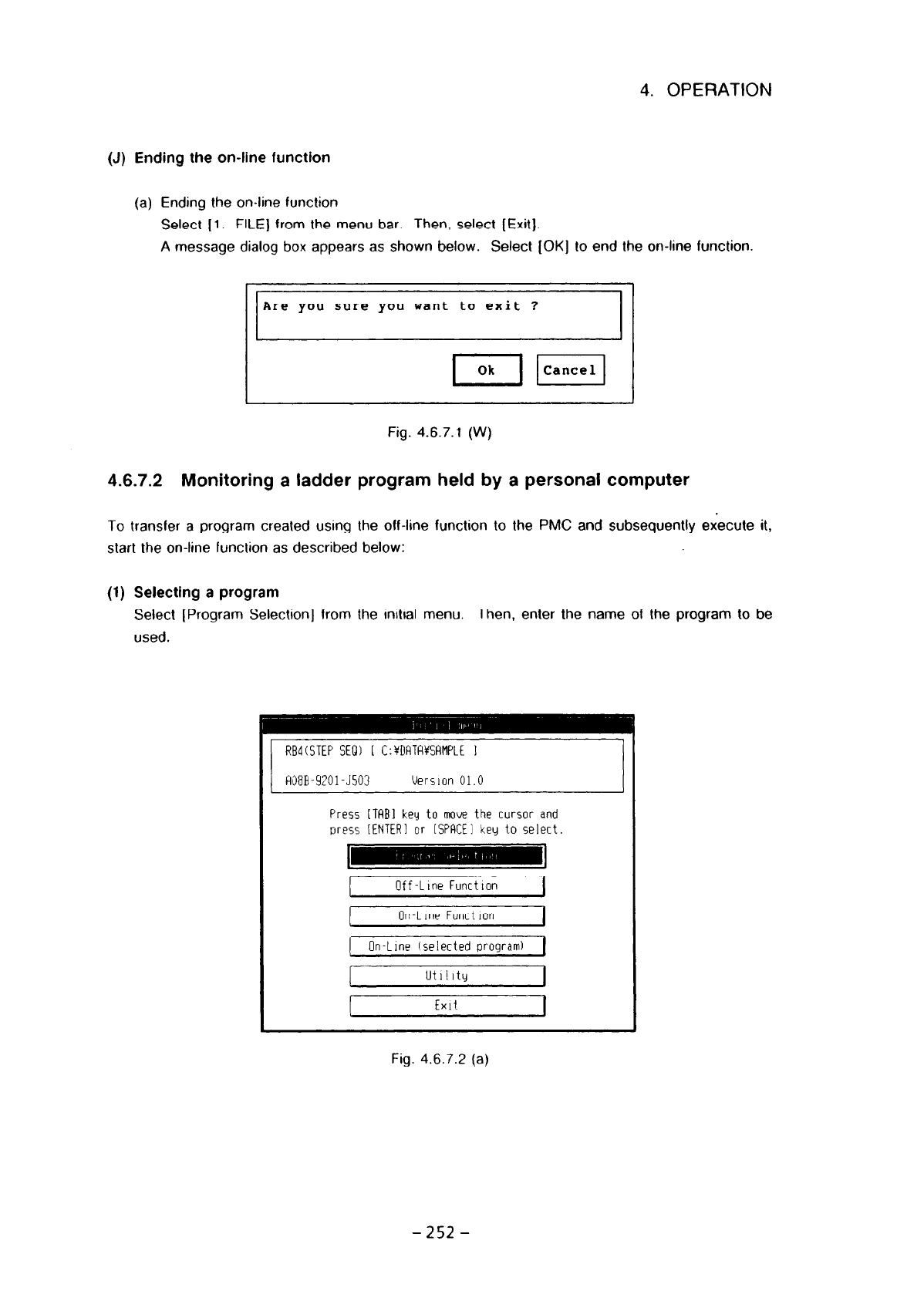

4. OPERATION

(J)

Ending the on-line function

(a) Ending the on-line function

Select [l. FILE] from the menu bar. Then, select [Exit).

A message dialog box appears as shown below.

Select [OK] to end the on-line function.

Are you sure you want to exit ?

4.6.7.2 Monitoring a ladder program held by a personal computer

Fig. 4.6.7.1 (W)

To transfer a program created using the off-line function to the PMC and subsequently execute it,

start the on-line function as described below:

(1)

Selecting a program

Select [Program Selection] from the initial menu. Then, enter the name of the program to be

used.

RBd(STEP SEQI [ C:YDFITRYSRlVLE I

ROBB-YZOl-J503

Werslon 01.0

Press [TABI key to move the cursor and

press [ENTERI or [SPFICEI key to select.

Off-Line Function

On-Line Function

On-Line (selected program)

I ut I I Itu I

Exit

Fig. 4.6.7.2 (a)

-252-
