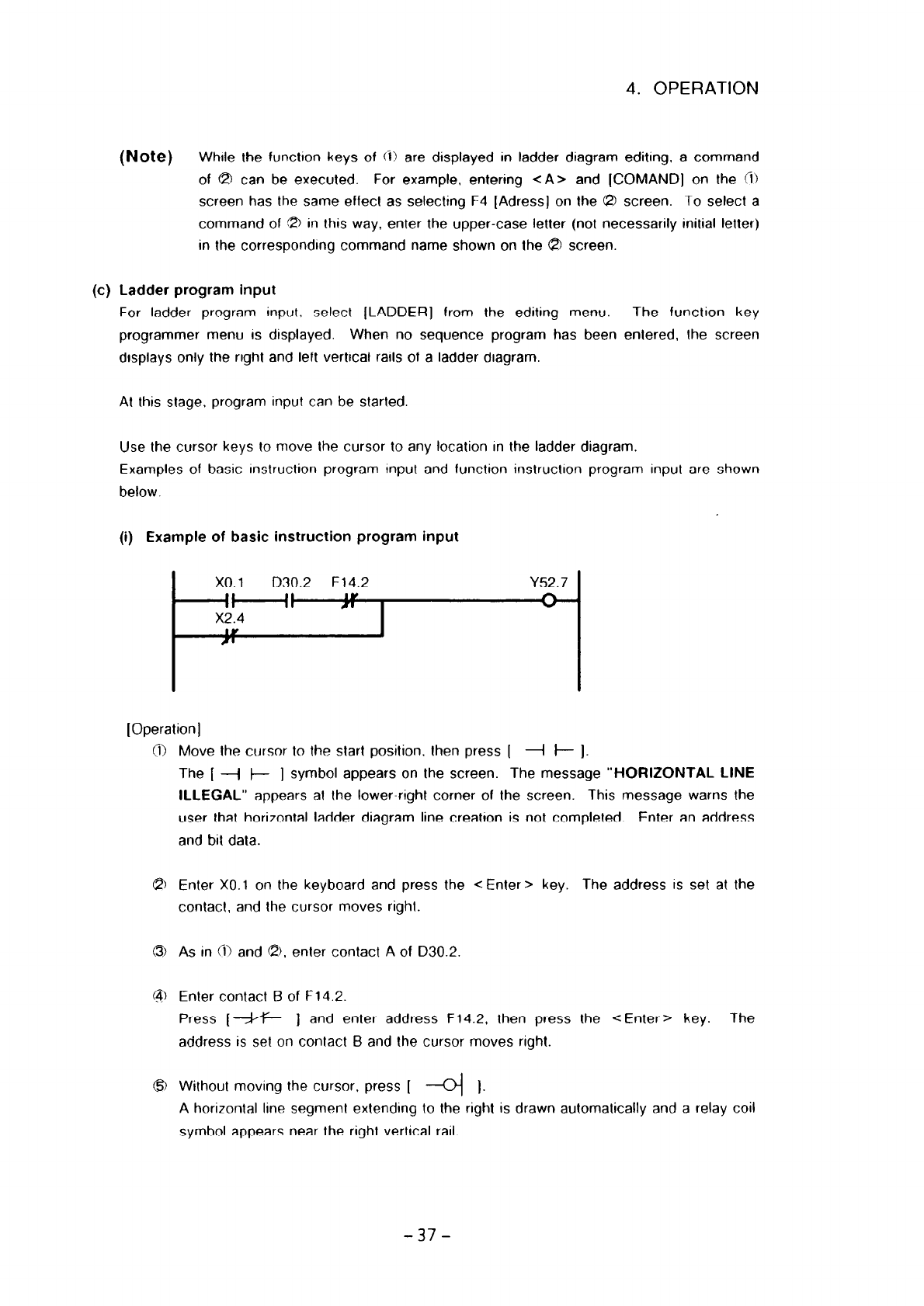

FAPT Ladder-II Operators manual Page 45

Operators manual
4. OPERATION
6)
(Note)
Whrle the functron keys of ti) are displayed in ladder diagram editing, a command
of 0 can be executed. For example, entering <A> and (COMAND] on the 0)
screen has the same effect as selecting F4 [Adress] on the @I screen. To select a
command of 0 in this way, enter the upper-case letter (not necessarily initial letter)
in the correspondrng command name shown on the 8 screen.
Ladder program input
For ladder program input.
select [LADDER] from the editing menu. The function key
programmer menu IS displayed. When no sequence program has been entered, the screen
displays only the rrght and left vertical rails of a ladder diagram.
At this stage, program input can be started.
Use the cursor keys to move the cursor to any location In the ladder diagram.
Examples of basic rnstruction program input and function instructron program input are shown
below.
(i) Example of basic instruction program input
x0.1 D30.2 F14.2 Y52.7
X2.4
[Operation]
Move the cursor to the start position. then press [ -i i- 1.
The [ -I t_ ] symbol appears on the screen. The message “HORIZONTAL LINE
ILLEGAL” appears at the lower-right corner of the screen. This message warns the
user that horizontal ladder diagram line creatron is not completed. Enter an address
and bit data.
Enter X0.1 on the keyboard and press
contact, and the cursor moves right.
the <Enter > key. The address is set at the
As in 01 and 8. enter contact A of D30.2.
Enter contact B of F14.2.
Press [e ] and enter address F14.2, then press the <Enter> key. The
address is set on contact B and the cursor moves right.
Without moving the cursor, press [ 4 1.
A horizontal line segment extending to the right is drawn automatically and a relay coil
symbol appears near the right vertical rail.
-37-
