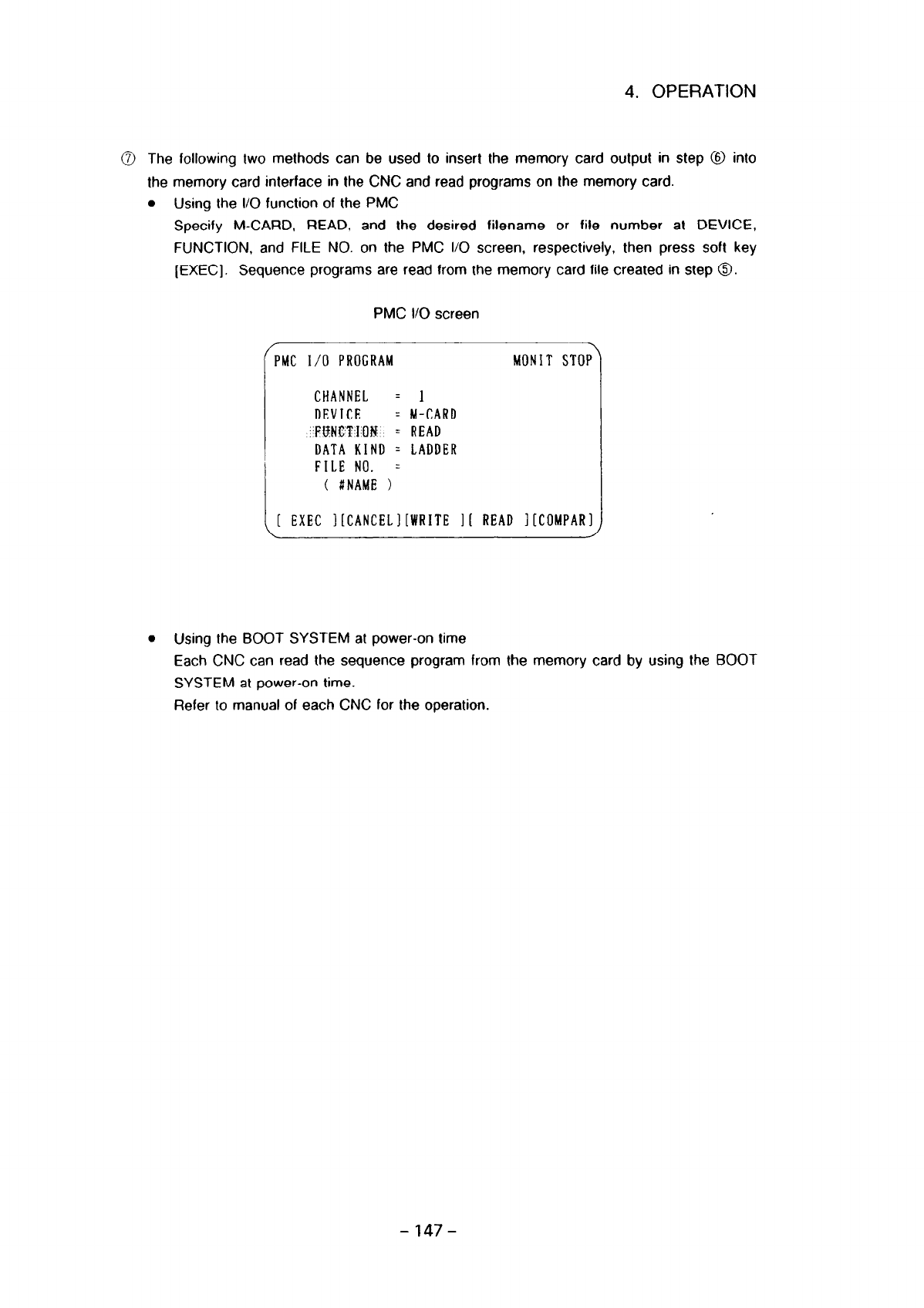

4. OPERATION

The following two methods can be used to insert the memory card output in step @ into

the memory card interface in the CNC and read programs on the memory card.

l Using the I/O function of the PMC

Specify M-CARD, READ, and the desired filename or file number at DEVICE,

FUNCTION, and FILE NO. on the PMC I/O screen, respectively, then press soft key

[EXEC]. Sequence programs are read from the memory card file created in step 0.

PMC l/O screen

-~~

PMC l/O PROGRAM

CHANNEL = 1

DEVICE

= M-CARD

::FtJNC:T~I.Oti = READ

DATA KIND = LADDER

FILE NO. =

( #NAME )

MONIT STOP

[ EXEC I[CANCELI[WRITE I[ READ I[COMPARI

l Using the BOOT SYSTEM at power-on time

Each CNC can read the sequence program from the memory card by using the BOOT

SYSTEM at power-on time.

Refer to manual of each CNC for the operation.

-147-
