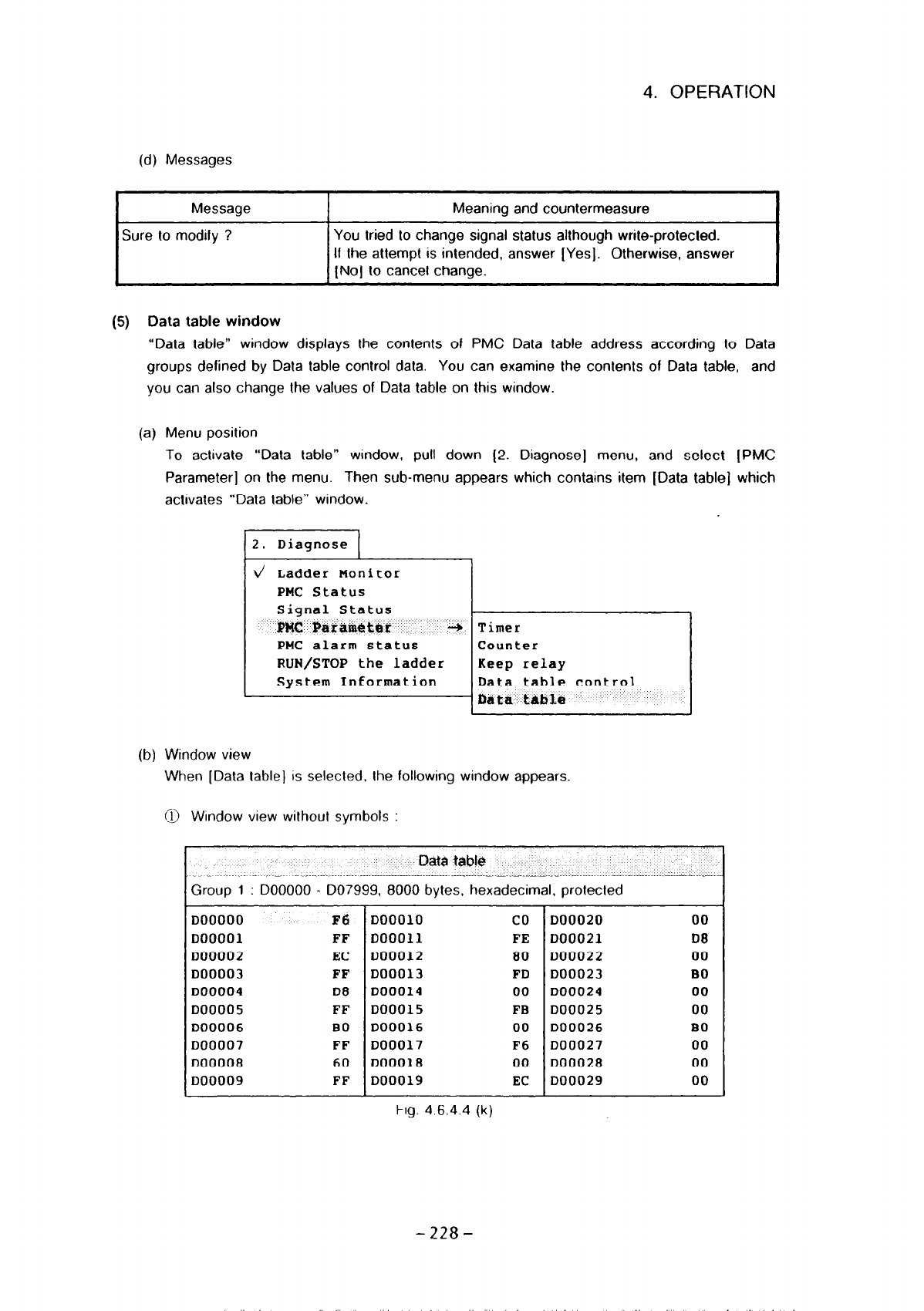

4. OPERATION

(d) Messages

Message

Sure to modify ?

Meaning and countermeasure

You tried to change signal status although write-protected.

If the attempt is intended, answer [Yes]. Otherwise, answer

(No] to cancel change.

(5) Data table window

“Data table” window displays the contents of PMC Data table address according to Data

groups defined by Data table control data. You can examine the contents of Data table, and

you can also change the values of Data table on this window.

(a) Menu position

To activate “Data table” window, pull down (2. Diagnose] menu, and select [PMC

Parameter] on the menu. Then sub-menu appears which contains item [Data table] which

activates “Data table” window.

2. Diagnose

d Ladder Monitor

PMC Status

Siqnal Status

PMC alarm status

RUN/STOP the ladder

System Information

Timer

Counter

Keep relay

Data table control

t)atii:tdbl(i :

(b) Window view

When [Data table] is selected. the following window appears

@ Window view without symbols :

Data table

Group 1 : DO0000 - 007999, 8000 bytes. hexadecimal, protected

DO0000 F6

DO0001

DO0002

DO0003

DO0004 D8

DO0005

DO0006

DO0007

DO0008 60

DO0009

DO0010

DO0011 FE

DO0012

DO0013 FD

DO0014

DO001 5 FB

DO0016

DO0017 F6

DO0018 00

DO0019

Frg. 4.6.4.4 (k)

DO0020 00

DO0021 D8

DO0022 00

DO0023 BO

DO0024 00

DO0025 00

DO0026

DO0027 00

DO0028 00

DO0029 00

- 228 -
