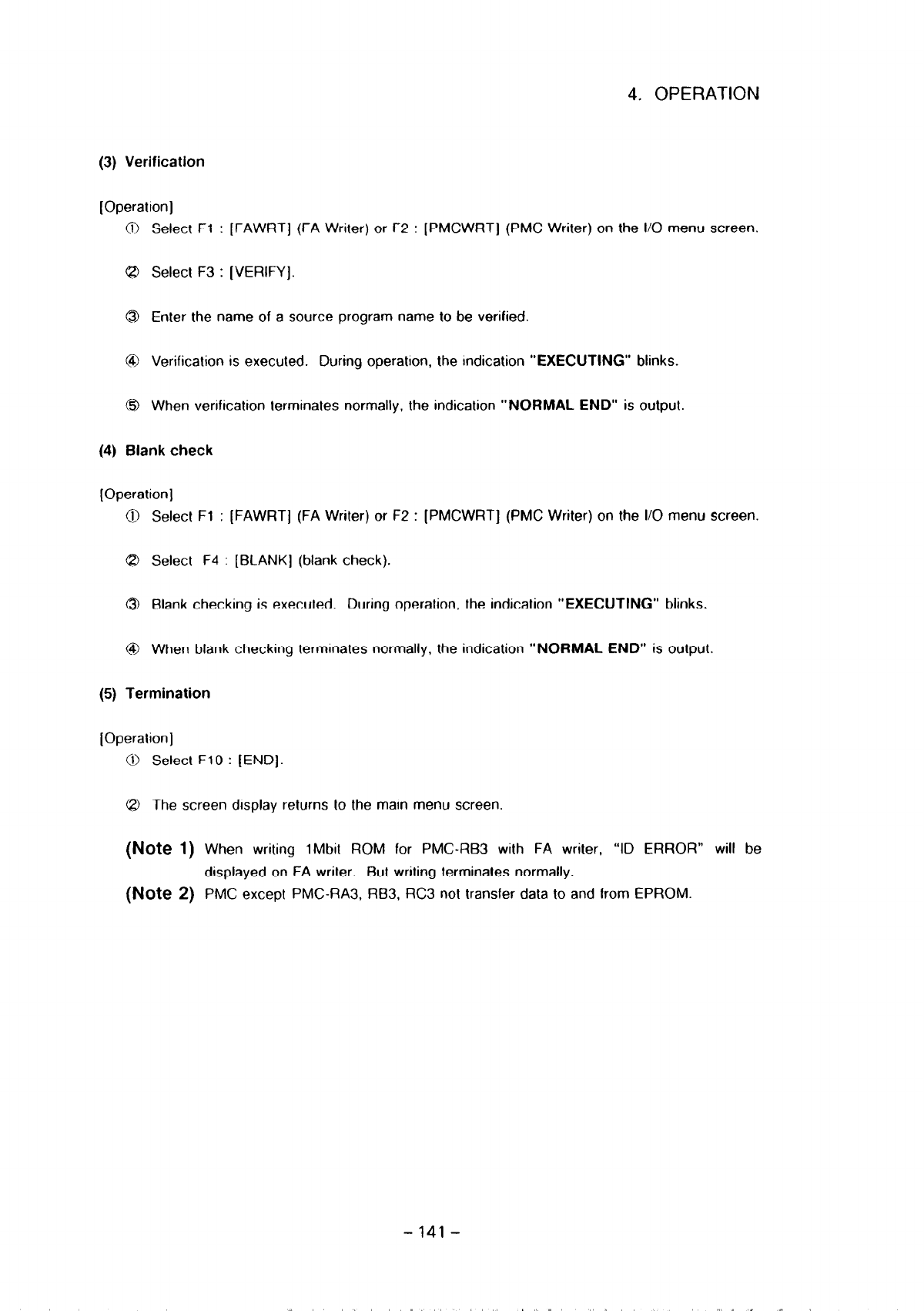

4. OPERATION

(3) Verification

[Operation]

0 Select Fl : [FAWRT] (FA Writer) or F2 : [PMCWRT] (PMC Writer) on the I/O menu screen.

@ Select F3 : [VERIFY]

0 Enter the name of a source program name to be verified.

@ Verification is executed. During operatron, the Indication “EXECUTING” blinks.

0 When verification terminates normally, the indication “NORMAL END” is output.

(4) Blank check

[Operation]

0 Select Fl : [FAWRT] (FA Writer) or F2 : [PMCWRT] (PMC Writer) on the I/O menu screen.

8 Select F4 : [BLANK] (blank check).

6 Blank checking is executed. During operation, the indication “EXECUTING” blinks.

@I When blank checking terminates normally, the indication “NORMAL END” is output.

(5) Termination

[Operation]

@ Select FlO : [END].

Q The screen display returns to the main menu screen.

(Note 1) When writing 1Mbit ROM for PMC-RB3 with FA writer, “ID ERROR” will be

displayed on FA writer. But writing terminates normally.

(Note 2) PMC except PMCRA3, RB3, RC3 not transfer data to and from EPROM.

-141-
