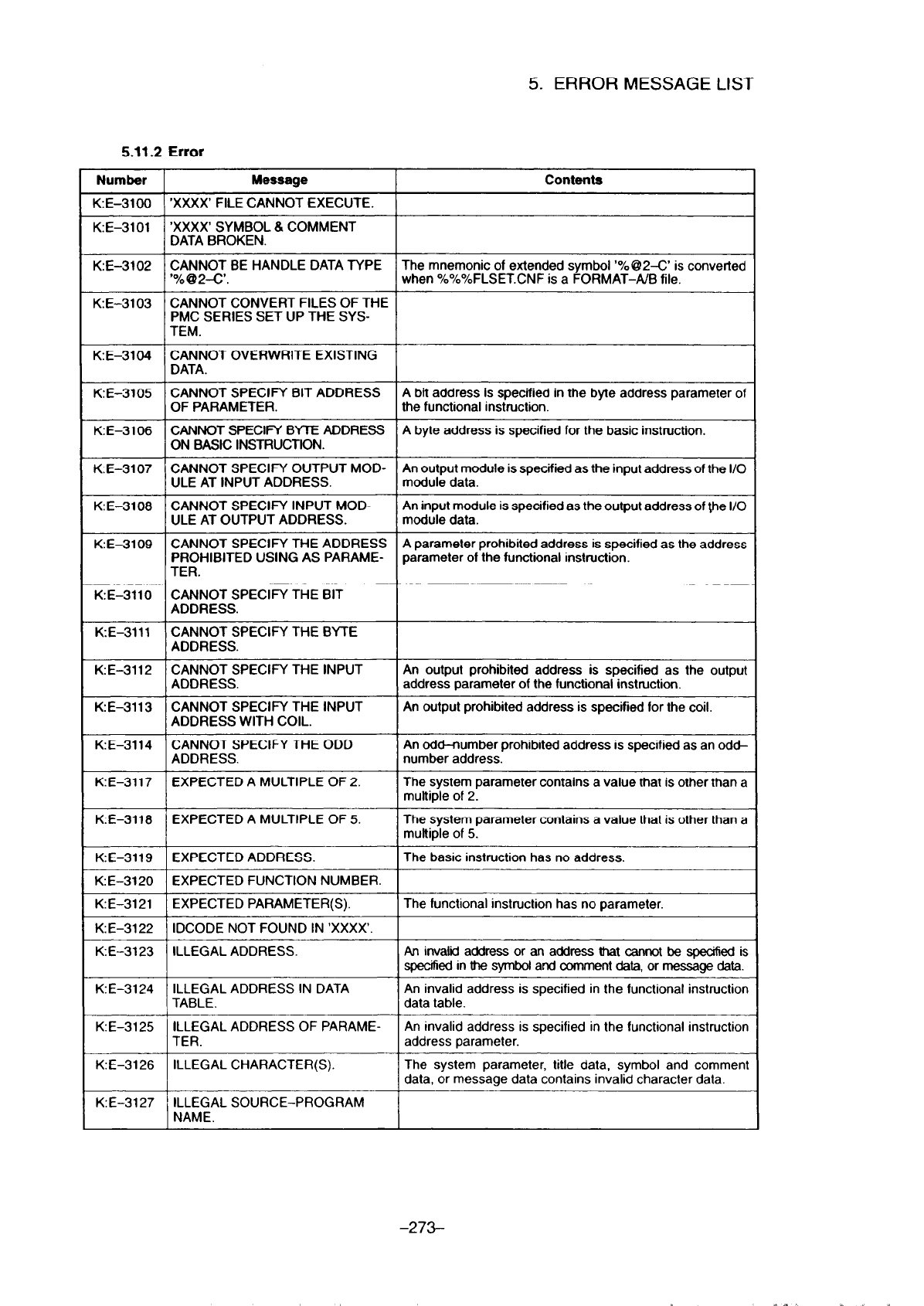

5. ERROR MESSAGE LIST

5.11.2 Error

Number

Message

Contente

K:E-3100

‘XXXX’ FILE CANNOT EXECUTE.

K:E-3101

‘XXXX’ SYMBOL 8 COMMENT

DATA BROKEN.

K:E-3102 CANNOT BE HANDLE DATA TYPE The mnemonic of extended symbol ‘%@2-C’ is converted

‘%@2-C.

when %%%FLSET.CNF is a FORMAT-A/B file.

K:E-3103 CANNOT CONVERT FILES OF THE

PMC SERIES SET UP THE SYS-

TEM.

K:E-3104 ;;Z;OT OVERWRITE EXISTING

K:E-3105 CANNOT SPECIFY BIT ADDRESS A bit address is specified in the byte address parameter of

OF PARAMETER. the functional instruction.

K:E-3106 CANNOT SPECIFY BYTE ADDRESS A byte address is specified for the basic instruction.

ON BASIC INSTRUCTION.

K:E-3107 CANNOT SPECIFY OUTPUT MOD- An output module is specified as the input addressof the I/O

ULE AT INPUT ADDRESS.

module data.

K:E-3108 CANNOT SPECIFY INPUT MOD- An input module is specified as the output address of the I/O

ULE AT OUTPUT ADDRESS. module data.

K:E-3109 CANNOT SPECIFY THE ADDRESS A parameter prohibited address is specified as the address

PROHIBITED USING AS PARAME- parameter of the functional instruction.

TER.

K:E-3110 CANNOT SPECIFY THE BIT

ADDRESS.

K:E3111

CANNOT SPECIFY THE BYTE

ADDRESS.

K:E-3112 CANNOT SPECIFY THE INPUT An output prohibited address is specified as the output

ADDRESS.

address parameter of the functional instruction.

K:E-3113 CANNOT SPECIFY THE INPUT

An output prohibited address is specified for the coil,

ADDRESS WITH COIL.

K:E-3114 CANNOT SPECIFY THE ODD

An odd-number prohibited address is specified as an odd-

ADDRESS. number address.

K:E-3117 EXPECTED A MULTIPLE OF 2.

The system parameter contains a value that is other than a

multiple of 2.

K:E-3118 EXPECTED A MULTIPLE OF 5. The system parameter contains a value that is other than a

multiple of 5.

K:E-3119 EXPECTED ADDRESS. The basic instruction has no address.

K:E-3120 EXPECTED FUNCTION NUMBER.

K:E-3121 EXPECTED PARAMETER(S). The functional instruction has no parameter.

K:E-3122 IDCODE NOT FOUND IN ‘XxXx’.

K:E-3123 ILLEGAL ADDRESS. An invalid address or an address that cannot be specified is

specitied in the symbol and comment data, or message data.

K:E-3124 ILLEGAL ADDRESS IN DATA An invalid address is specified in the functional instruction

TABLE. data table.

K:E-3125 ILLEGAL ADDRESS OF PARAME- An invalid address is specified in the functional instruction

TER.

address parameter.

K:E-3126 ILLEGAL CHARACTER(S).

The system parameter, title data, symbol and comment

data, or message data contains invalid character data.

K:E-3127 ILLEGAL SOURCE-PROGRAM

NAME.
