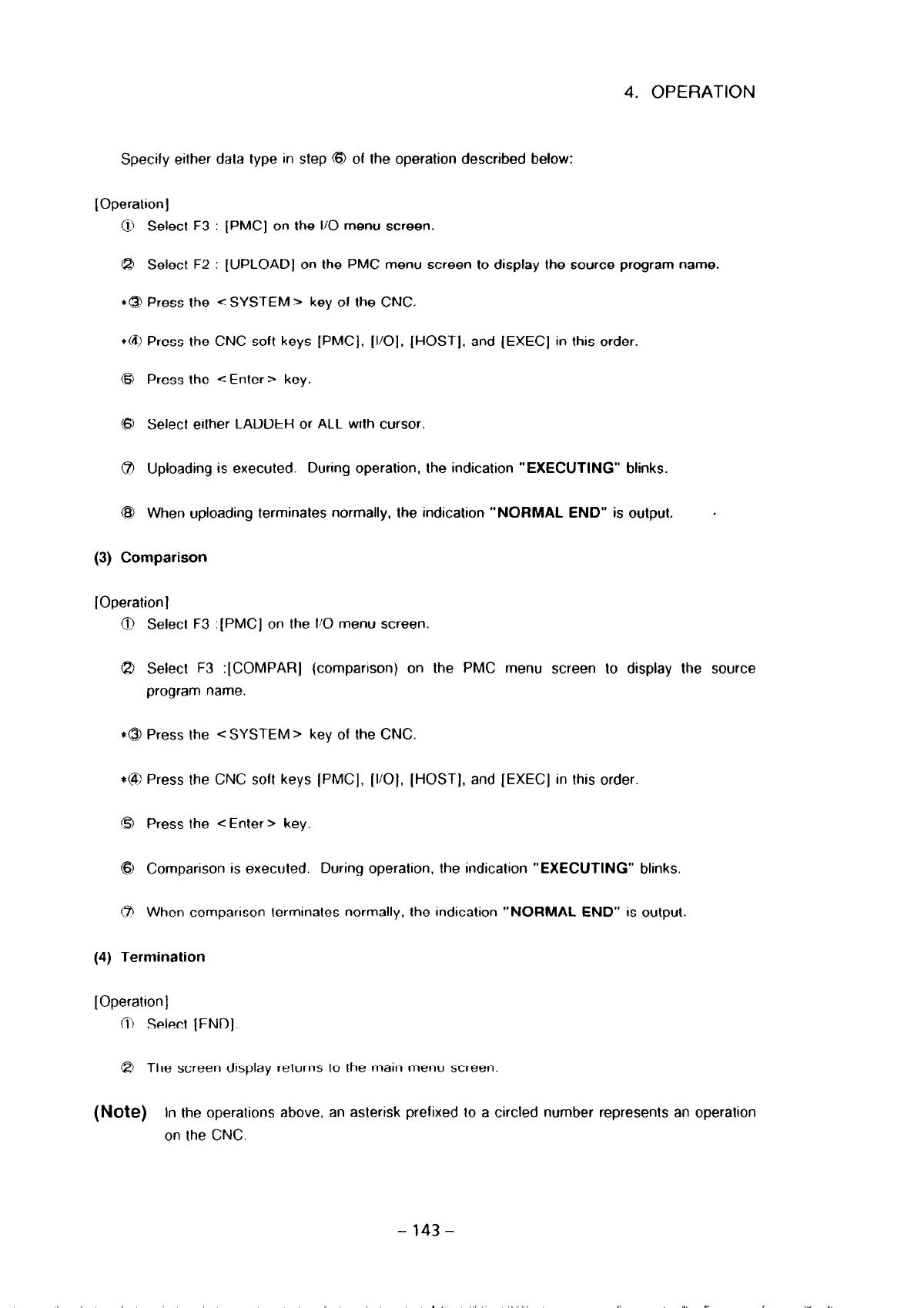

4. OPERATION

Specify either data type in step 6I of the operation described below:

[Operation]

0 Select F3 : [PMC] on the I/O menu screen.

@ Select F2 : [UPLOAD] on the PMC menu screen to display the source program name.

*@ Press the <SYSTEM > key of the CNC.

*G?J Press the CNC soft keys [PMC]. [l/O]. [HOST], and (EXEC] in this order.

0 Press the <Enter> key.

8 Select either LADDER or ALL with cursor.

(?I Uploading is executed. During operation, the indication “EXECUTING” blinks.

@I When uploading terminates normally, the indication “NORMAL END” is output.

(3) Comparison

[Operation]

0 Select F3 :[PMC] on the I/O menu screen.

0 Select F3 :[COMPAR] (comparison) on the PMC menu screen to display the source

program name.

*O Press the c SYSTEM > key of the CNC.

$0 Press the CNC soft keys (PMC], [l/O], [HOST], and [EXEC] in this order

@ Press the <Enter > key

6) Comparison is executed. During operation, the indication “EXECtJTlNG” blinks.

0 When comparison terminates normally, the indication “NORMAL END” is output.

(4) Termination

[Operation]

0 Select [END]

@ The screen dtsplay returns to the main menu screen

(Note) In the operations above, an asterisk prefixed to a circled number represents an operation

on the CNC.
