FAPT Ladder-II Operators manual Page 353

Operators manual

Page of 456

/ 456

FANUC OPEN CNC LADDER EDITING

PACKAGE SUPPLEMENTARY

OPERATOR’S MANUAL

01 98.11.13 Ino New making B-62884EN/01-4

EDIT DATE DESIG.

DESCRIPTION

17/67

TITLE

DRAW.NO.

SHEET

CUST.

(2) Open the file (Selecting the program)

1) Select [Open Program] of the [File] menu.

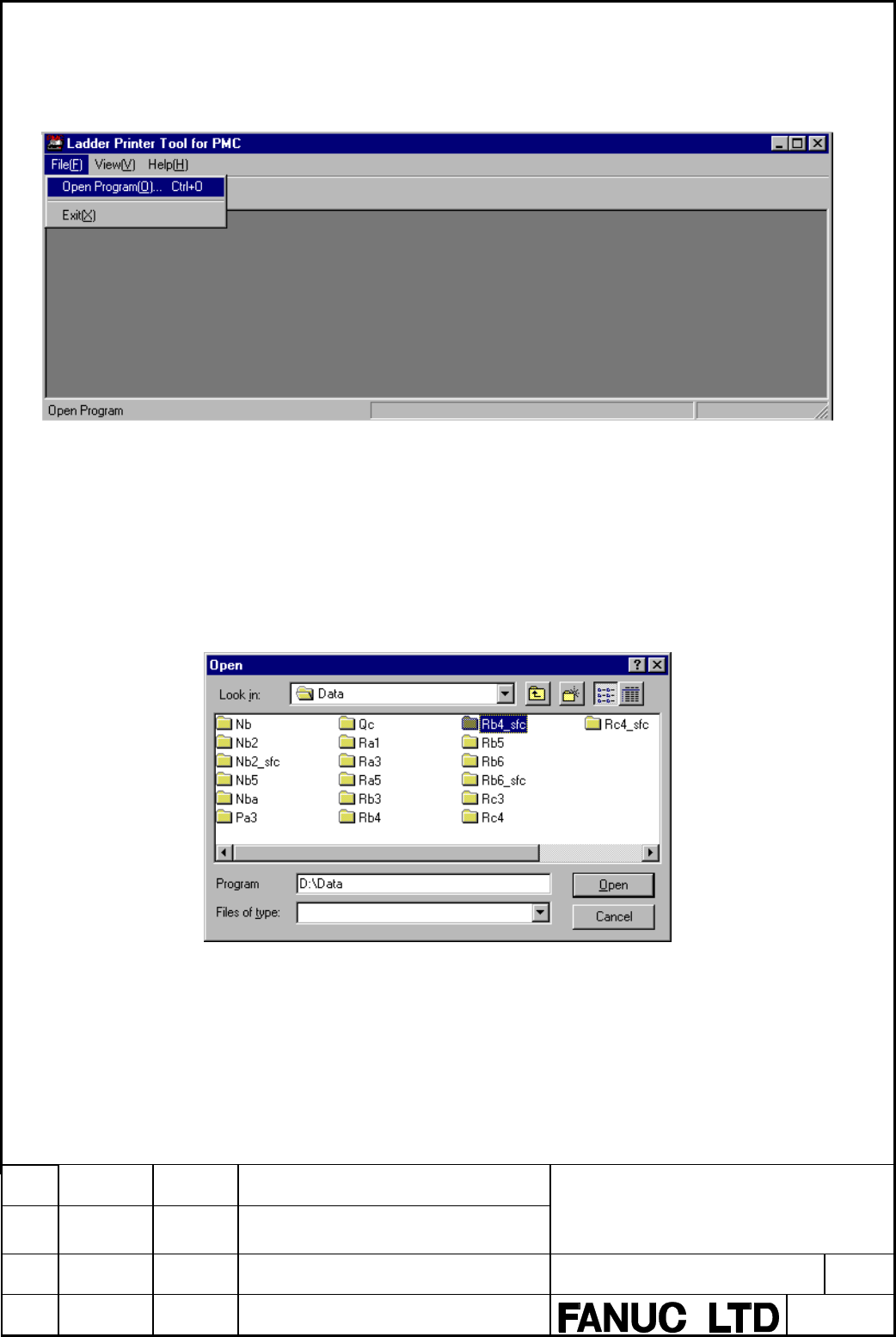

Fig. 5.3.4.2 [File] menu screen

2) Specify the program name on the file dialog which is displayed. After inputting the

program name which you want to open (a program name which you want to print) or

selecting the folder of the program which you want to open (a program which you

want to print) on the following screen, click [Open] button. If you select a folder

(directory) of a sequence program, the program is automatically opened. In this case,

the folder of "RB4_SFC” is selected.

Fig. 5.3.4.3 Program selection screen
