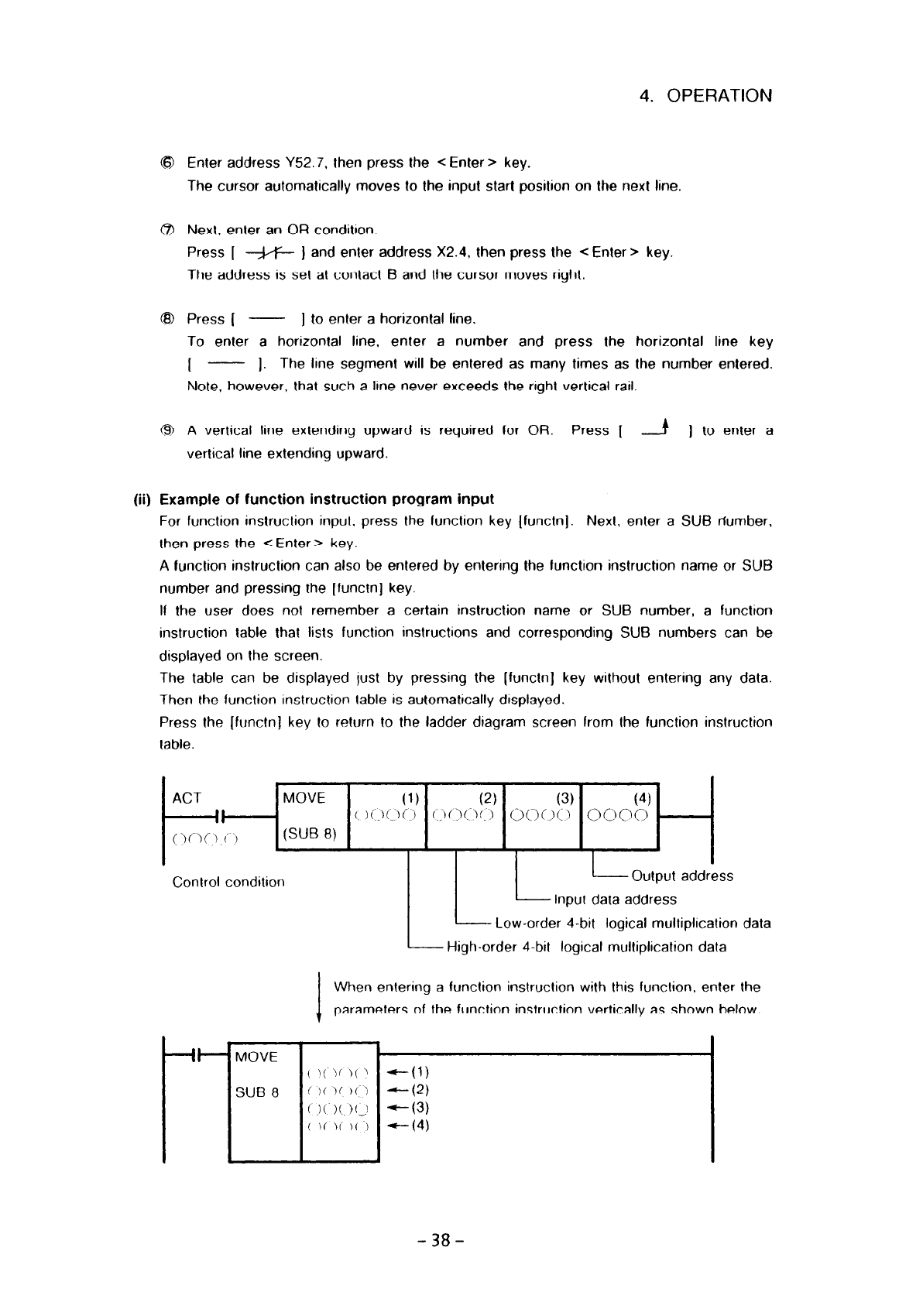

4. OPERATION

Enter address Y52.7, then press the < Enter > key.

The cursor automatically moves to the input start position on the next line.

Next, enter an OR conditron.

Press [ -#+- J and enter address X2.4, then press the -Z Enter > key.

The address is set at contact B and the cursor moves right.

Press [ -

] to enter a horizontal line.

To enter a horizontal line, enter a number and press the horizontal line key

- 1. The line segment will be entered as many times as the number entered.

Note, however, that such a line never exceeds the right vertical rail.

A vertical line extending upward is required for OR. Press [ --!

) to enter a

vertical line extending upward.

(ii) Example of function instruction program input

For function instruction input. press the function key (functn]. Next, enter a SUB number,

then press the c Enter Z- key.

A function instruction can also be entered by entenng the function instruction name or SUB

number and pressing the [functn] key.

If the user does not remember a certain instruction name or SUB number, a function

instruction table that lists function instructions and corresponding SUB numbers can be

displayed on the screen.

The table can be displayed just by pressing the (funcln] key without entering any data.

Then the function instruction table is automatically displayed.

Press the [functn] key to return to the ladder diagram screen from the function instruction

table.

MOVE

(1) (2) (3)

(4)

(.)!.)(.)i) (.j(!!~K, 0000 0000

(SUB 8)

Control condition

Output address

-Input data address

- Low-order 4-bit logical multiplication data

-High-order 4-bit logical multiplication data

When entering a function instruction with this function. enter the

parameters of the function instruction vertically as shown below.

-38-
