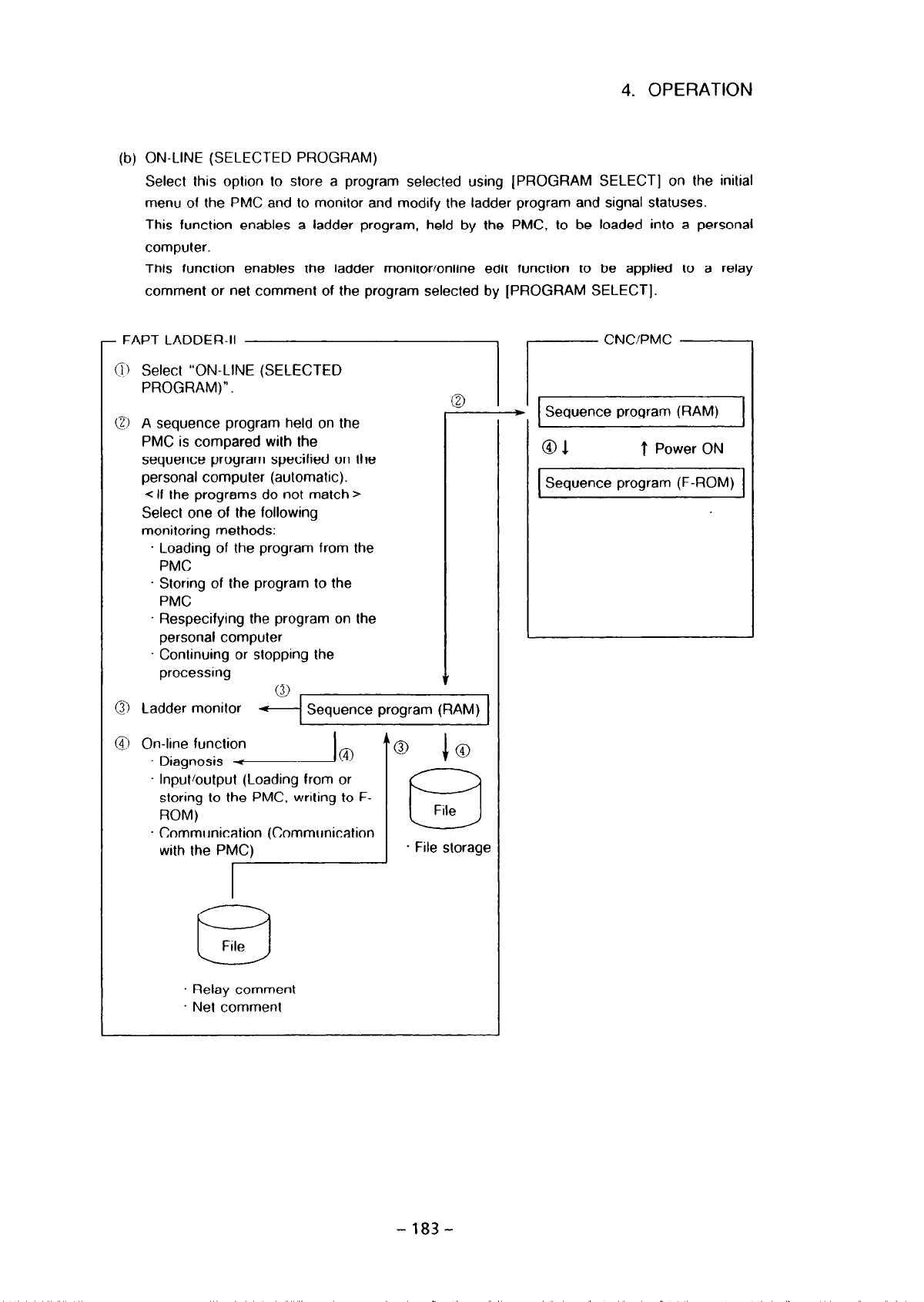

4. OPERATION

(b)

ON-LINE (SELECTED PROGRAM)

Select this optron to store a program selected using [PROGRAM SELECT] on the initial

menu of the PMC and to monitor and modify the ladder program and signal statuses.

This function enables a ladder program, held by the PMC, to be loaded into a personal

computer.

This function enables the ladder monitor/online edit function to be applied to a relay

comment or net comment of the program selected by [PROGRAM SELECT].

- FAPT LADDER-II 1,

Select “ON-LINE (SELECTED

PROGRAM)“.

A sequence program held on the

PMC is compared with the

sequence program specified on the

personal computer (automatic).

< If the programs do not match >

Select one of the following

monitoring methods:

. Loading of the program from the

PMC

. Storing of the program to the

PMC

. Respecifying the program on the

personal computer

Continuing or stopping the

processing

Ladder monitor

Sequence program (RAM)

On-line function

. Diagnosis

. Input/output (Loading from or

storing to the PMC. writing to F-

ROM)

. Communication (Communication

with the PMC)

File

. Relay comment

. Net comment

CNUPMC

Sequence program (RAM)

1 Power ON

1 Sequence program (F-ROM) 1

- 183-
